Windshield Glass: Components

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 2)
G04981110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

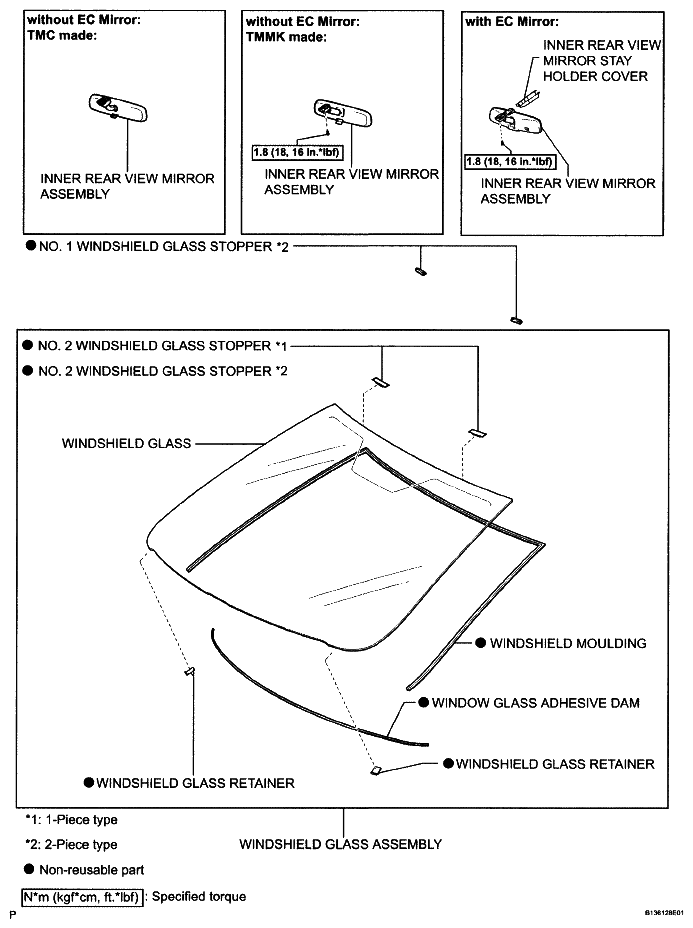

Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 2)
G04981111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
