Power Window Master Switch Circuit: Wiring Diagram

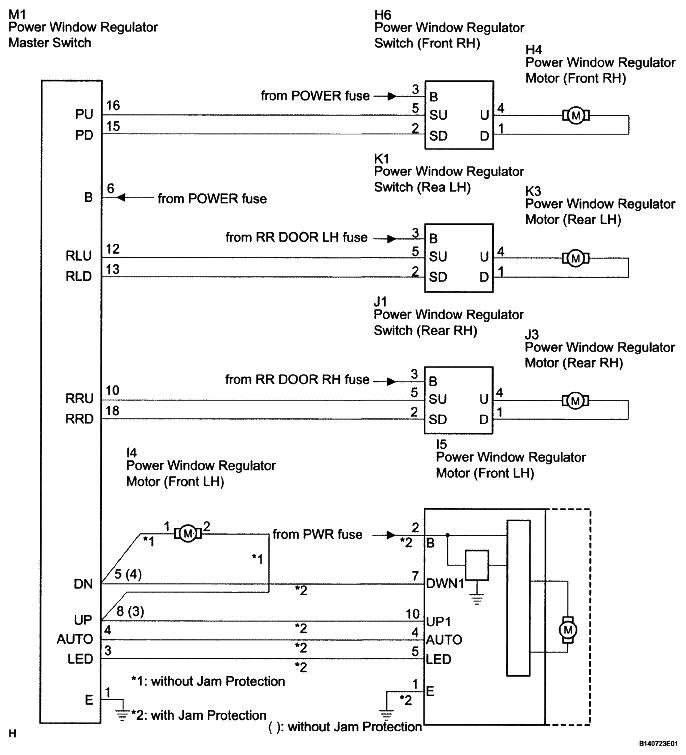

Fig 1: Power Window Master Switch - Wiring Diagram

G04981073

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
