Front Passenger Side Power Window Motor Circuit: Wiring Diagram

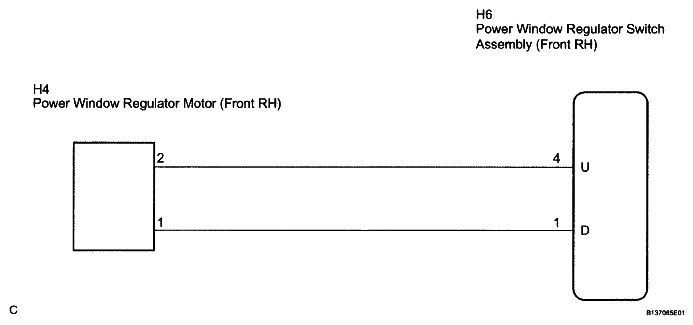

Fig 1: Front Passenger Side Power Window - Wiring Diagram

G04981089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
