Driver Side Power Window Motor Circuit: Wiring Diagram

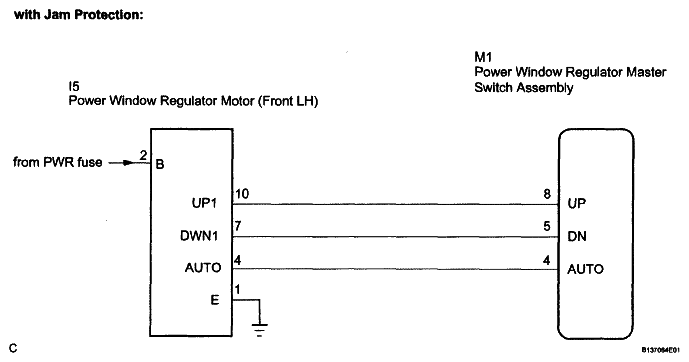

Fig 1: Driver Side Power Window Motor Circuit (With Jam Protection) - Wiring Diagram
G04981083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

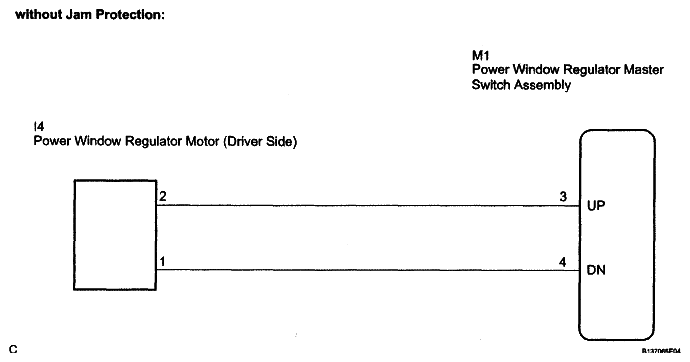

Fig 2: Driver Side Power Window Motor Circuit (Without Jam Protection) - Wiring Diagram
G04981084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
