Inspection Procedure
- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard resistance
POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLYTester Connection Condition Specified Condition 8(UP)-1(E)-4(AUTO) Auto UP Below 1 Ω 5(DN)-6(B) Auto UP Below 1 Ω 8(UP)-1(E) Manual UP Below 1 Ω 5(DN)-6(B) Manual UP Below 1 Ω 8(UP)-5(DN)-6(B) OFF Below 1 Ω 5(DN)-1(E) Manual DOWN Below 1 Ω 8(UP)-6(B) Manual DOWN Below 1 Ω 4 (AUTO) - 5 (DN) -1 (E) Auto DOWN Below 1 Ω 8(UP)-6(B) Auto DOWN Below 1 Ω NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH
OK: GO TO NEXT STEP
- CHECK WIRE HARNESS (WINDOW REGULATOR MASTER SWITCH - WINDOW REGULATOR MOTOR)

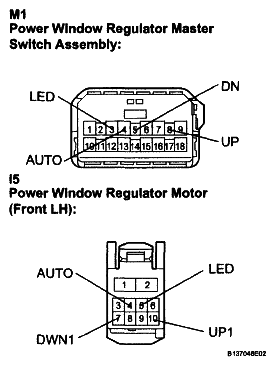

- Disconnect the M1 and I5 connectors.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
WINDOW REGULATOR MASTER SWITCH - WINDOW REGULATOR MOTORTester Connection Condition Specified Condition M1-8 (UP) -I5-10 (UP1) Always Below 1 Ω M1-3 (LED)-I5-5 (LED) Always Below 1 Ω M1-4 (AUTO)-I5-4 (AUTO) Always Below 1 Ω M1-5 (DN)- I5-7 (DWN1) Always Below 1 Ω M1-8 (UP) - Body ground Always 10 kΩ or higher M1-3 (LED) - Body ground Always 10 kΩ or higher M1-4 (AUTO) - Body ground Always 10 kΩ or higher M1-5 (DN) - Body ground Always 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE DRIVER SIDE POWER WINDOW REGULATOR MOTOR ASSEMBLY
