Transmission Control Cable Assembly: Components

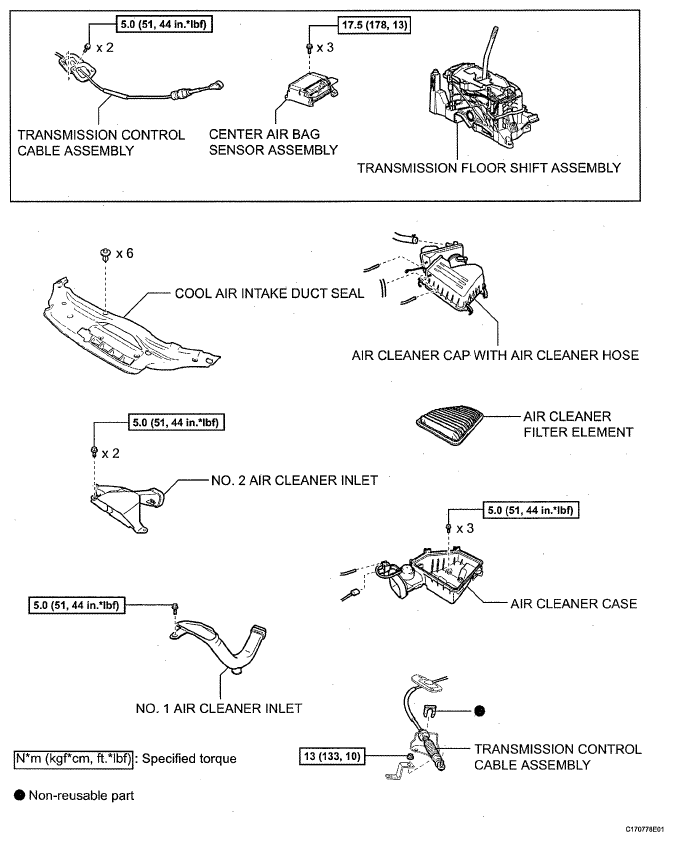

Fig 1: Identifying Transmission Control Cable Assembly Components

G05405913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
