Automatic Transmission - U660E: TCM: Components

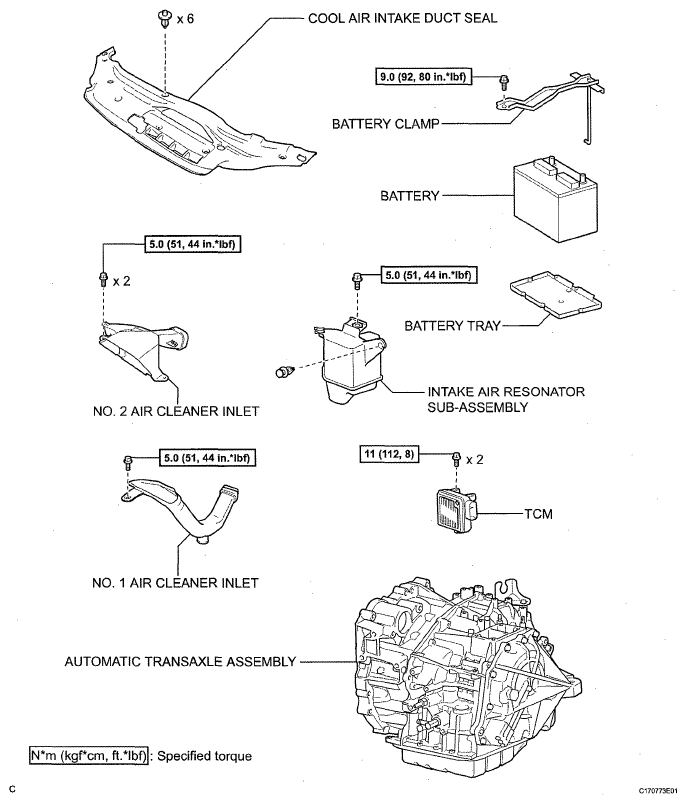

Fig 1: TCM Replacement Components With Torque Specifications

G05405988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
