Home >> Toyota >> 2009 >> Avalon XLS >> Repair and Diagnosis >> Transmission >> Automatic Transmission - U660E >> Shift Lever >> Components

Shift Lever: Components

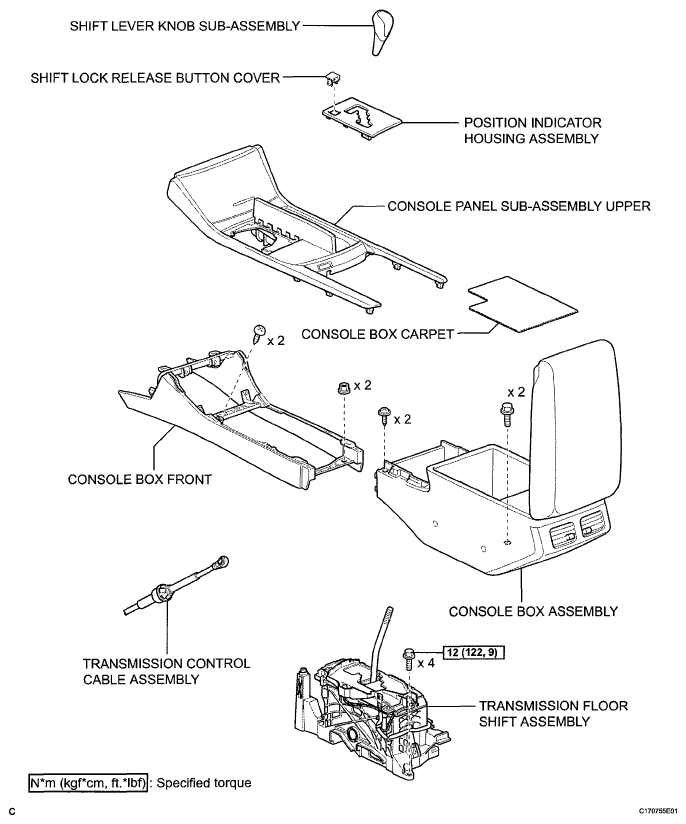

Fig 1: Identifying Shift Lever Components (1 Of 2)
G05405887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

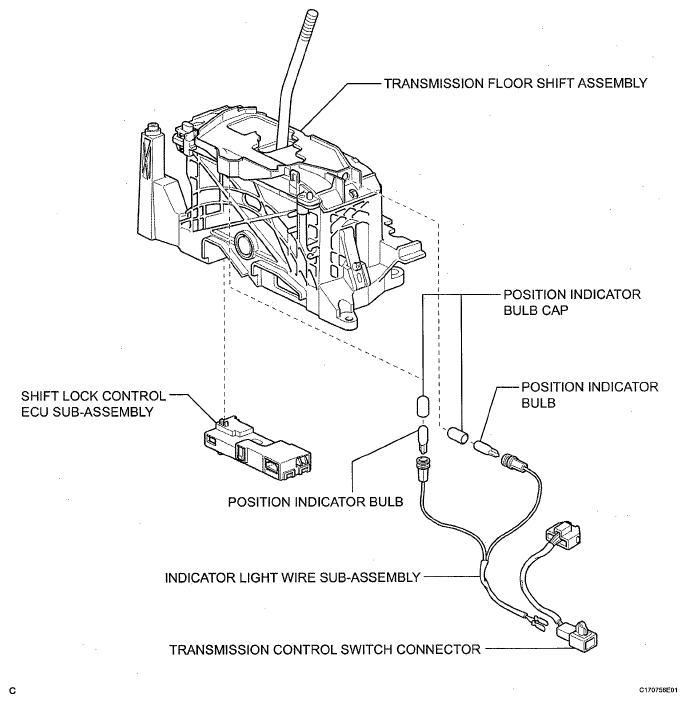

Fig 2: Identifying Shift Lever Components (2 Of 2)
G05405888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
