Differential Case: Components

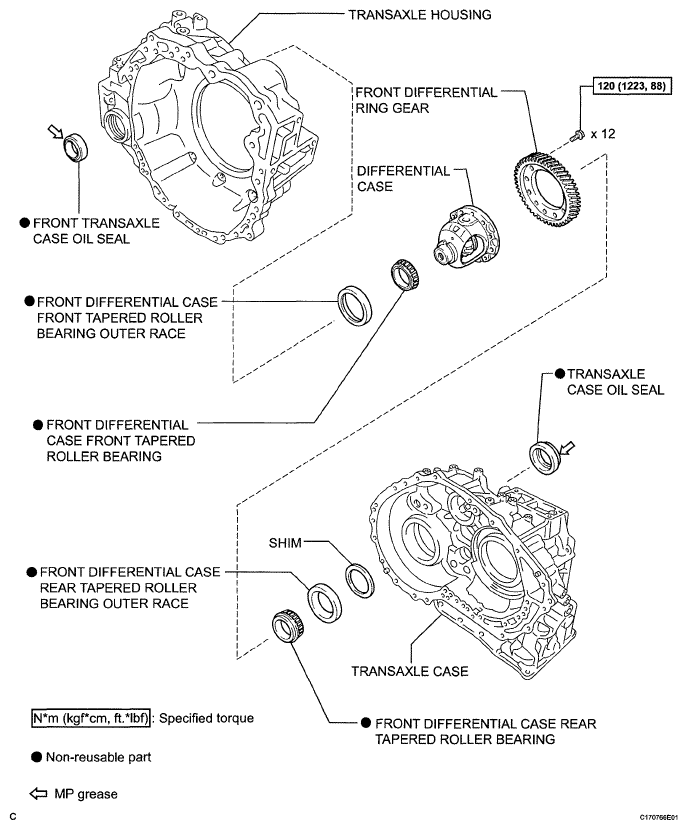

Fig 1: Differential Case Replacement Components With Torque Specifications (1 Of 2)
G05406264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

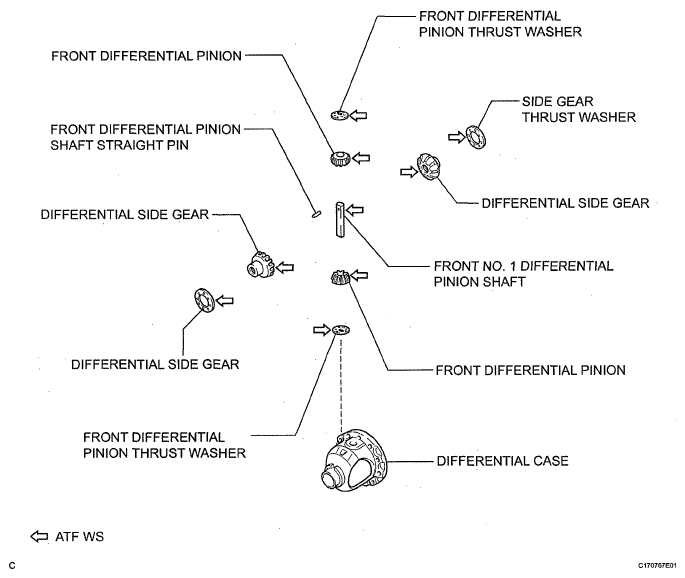

Fig 2: Differential Case Replacement Components With Torque Specifications (2 Of 2)
G05406265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
