Automatic Transaxle Unit: Components

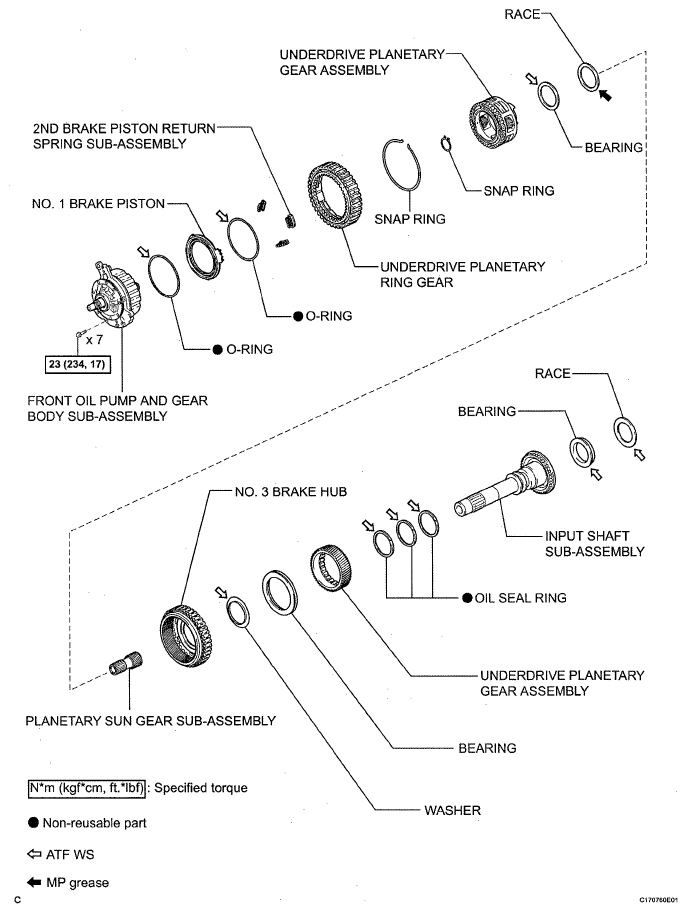

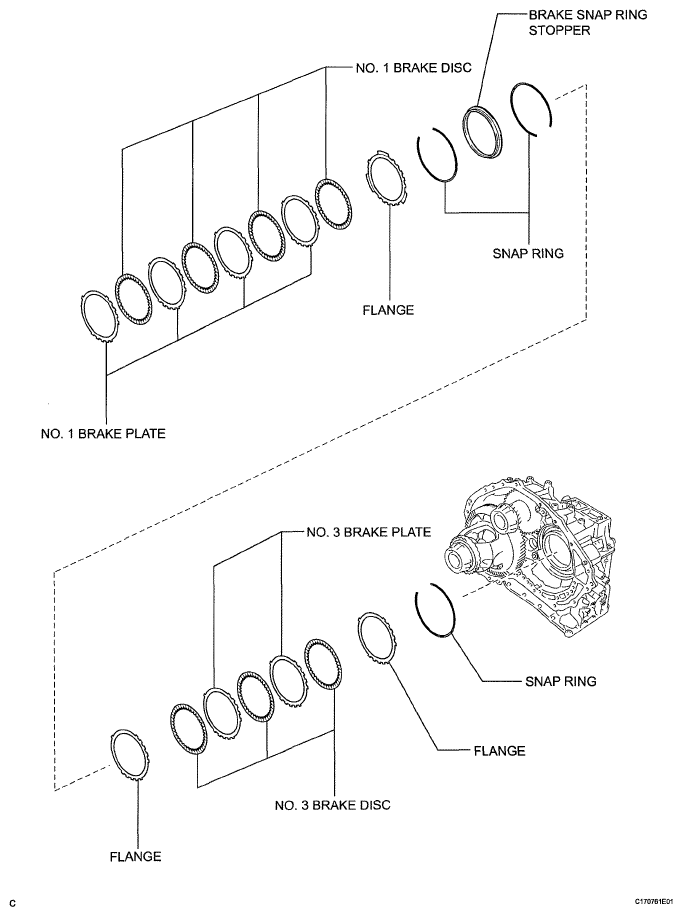

Fig 1: Automatic Transaxle Unit Components With Torque Specification (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

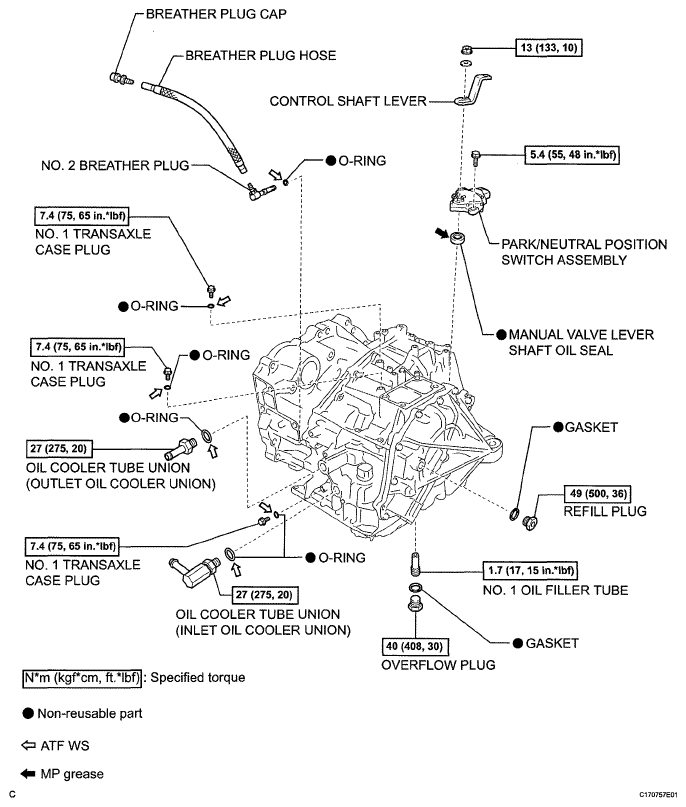

Fig 2: Automatic Transaxle Unit Components With Torque Specification (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

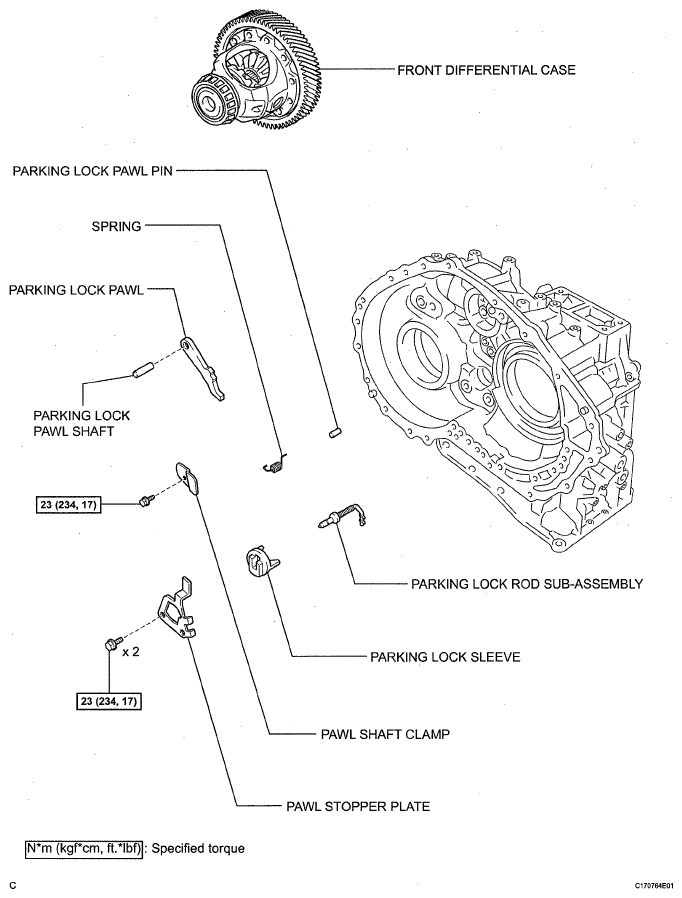

Fig 3: Automatic Transaxle Unit Components With Torque Specification (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

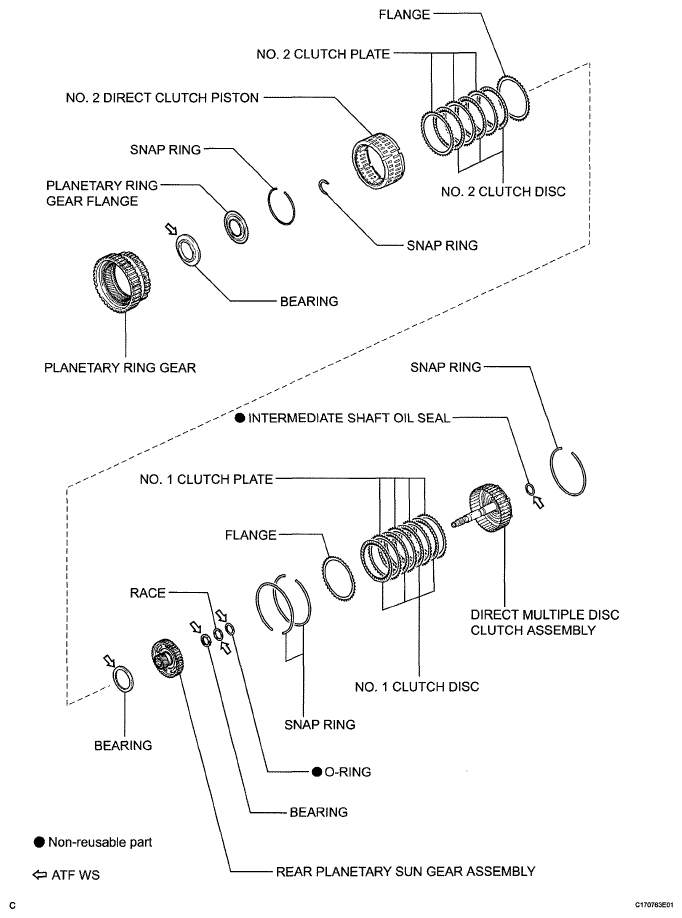

Fig 4: Automatic Transaxle Unit Components With Torque Specification (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

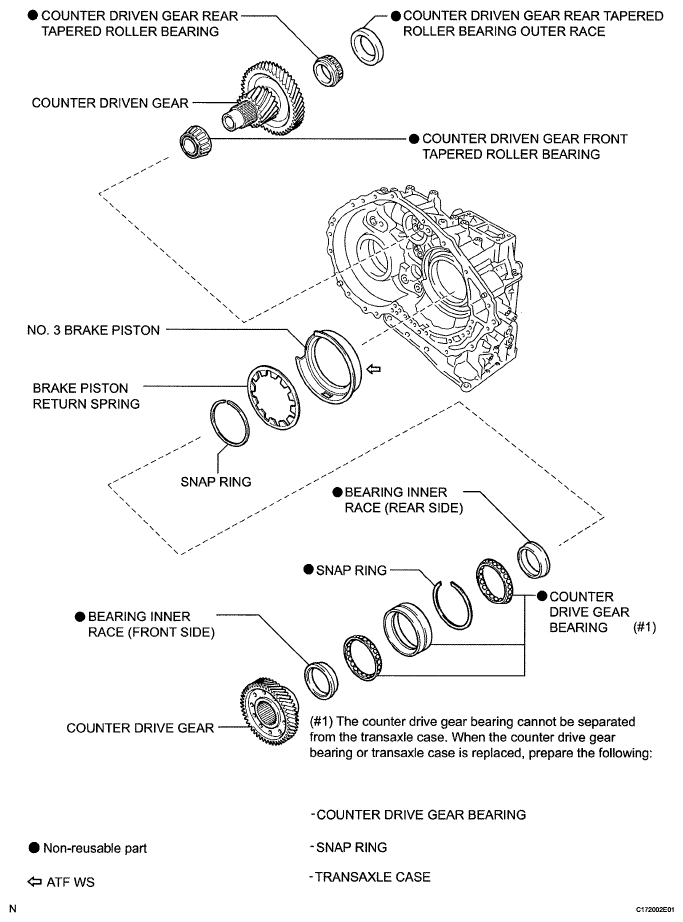

Fig 5: Automatic Transaxle Unit Components With Torque Specification (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

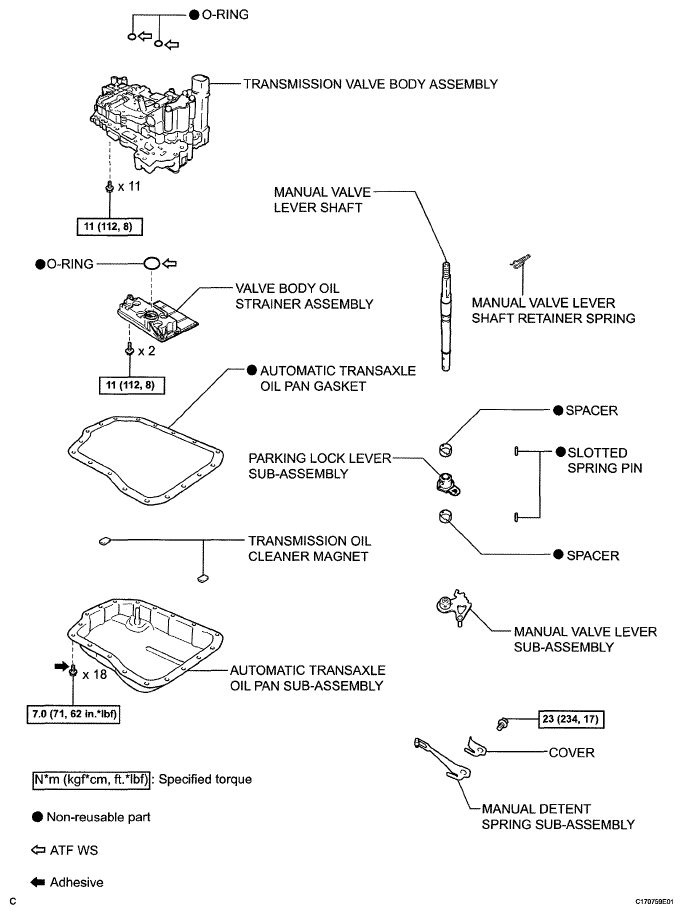

Fig 6: Automatic Transaxle Unit Components With Torque Specification (6 Of 9)

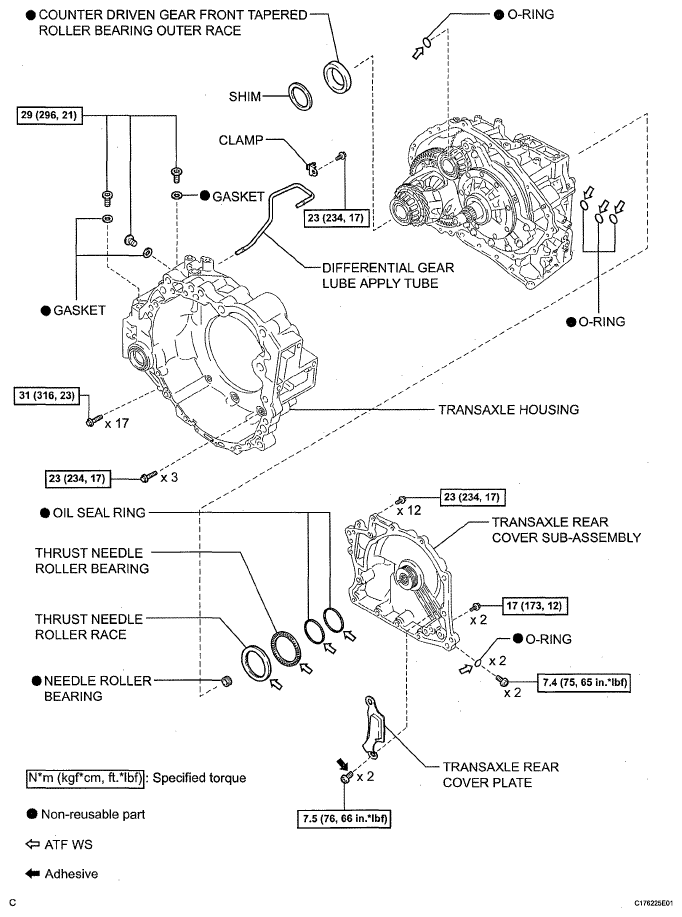

Fig 7: Automatic Transaxle Unit Components With Torque Specification (7 Of 9)

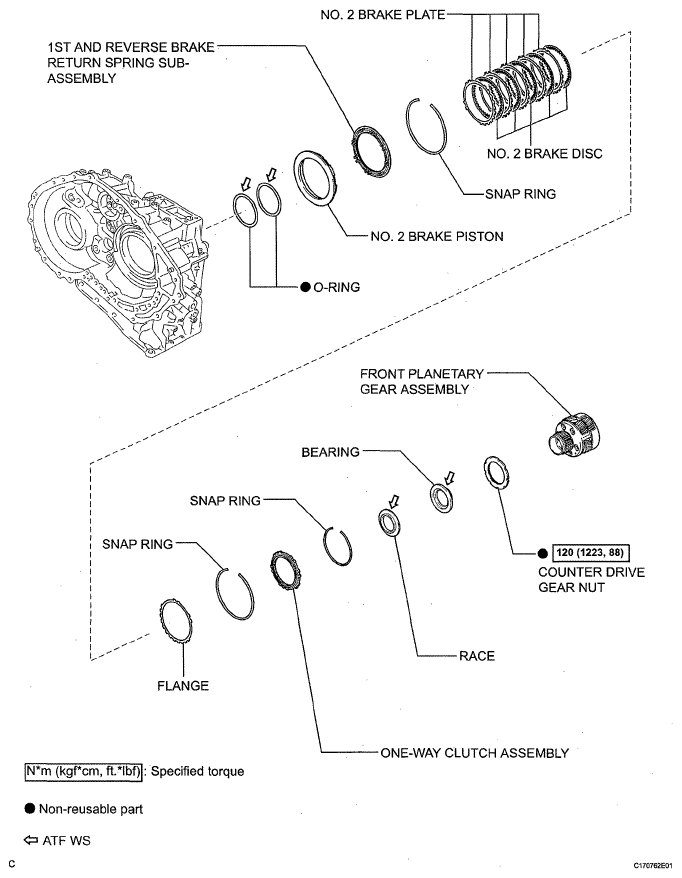

Fig 8: Automatic Transaxle Unit Components With Torque Specification (8 Of 9)

Fig 9: Automatic Transaxle Unit Components With Torque Specification (9 Of 9)
