ATF Temperature Sensor: Components

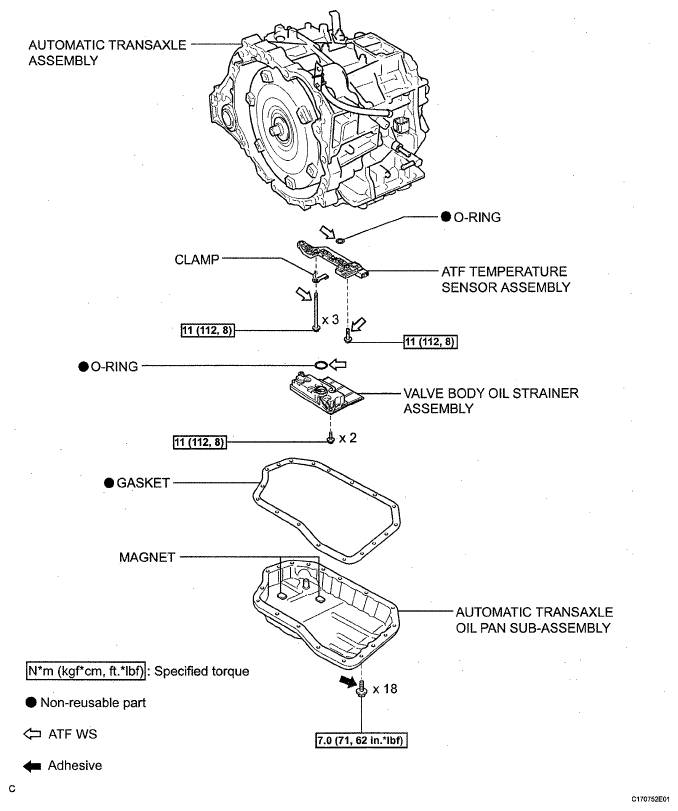

Fig 1: Identifying ATF Temperature Sensor Components

G05405846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
