Steering Pad: Components

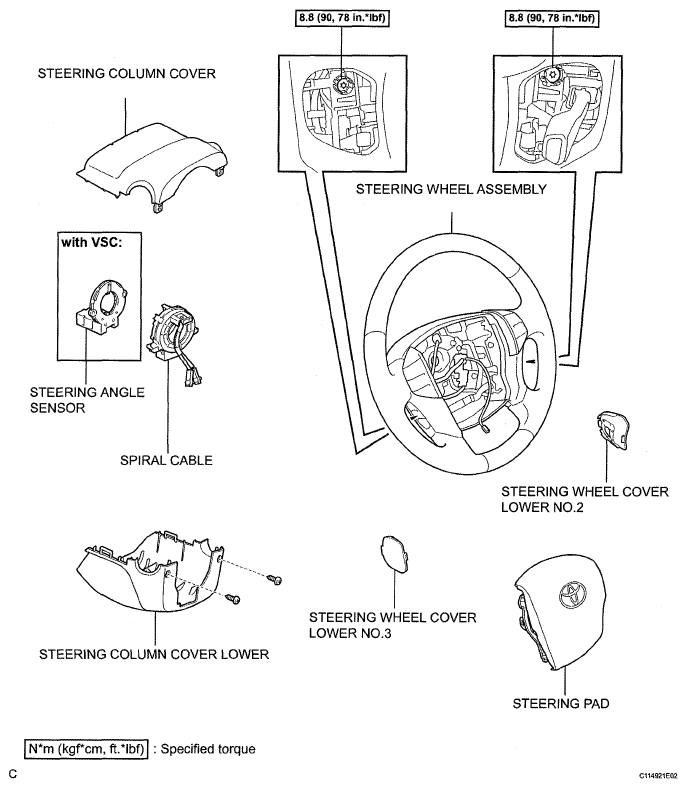

Fig 1: Steering Pad Replacement Components With Torque Specifications

G05409791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
