Blower Unit: Components

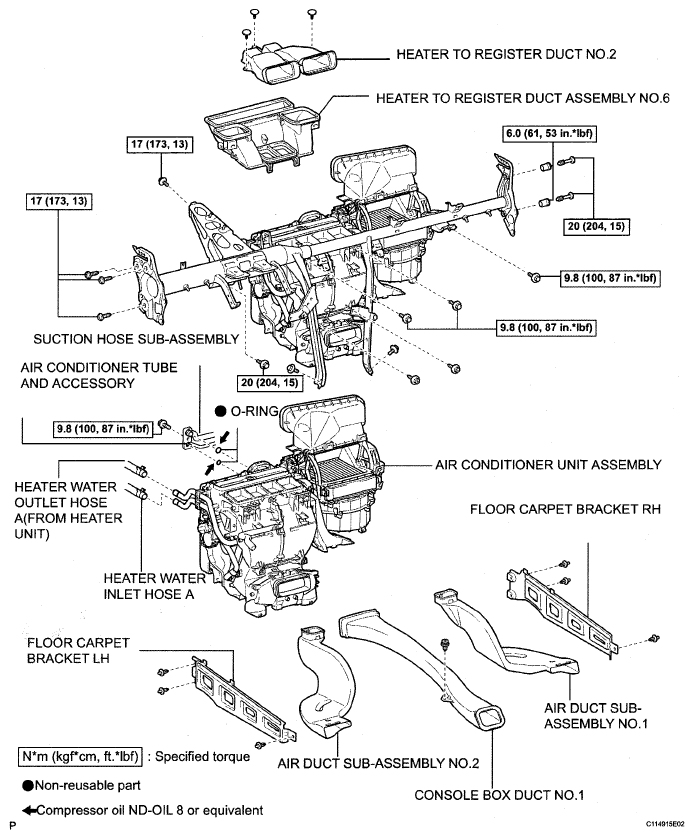

Fig 1: Blower Unit Components With Torque Specifications (1 Of 2)
G05004895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

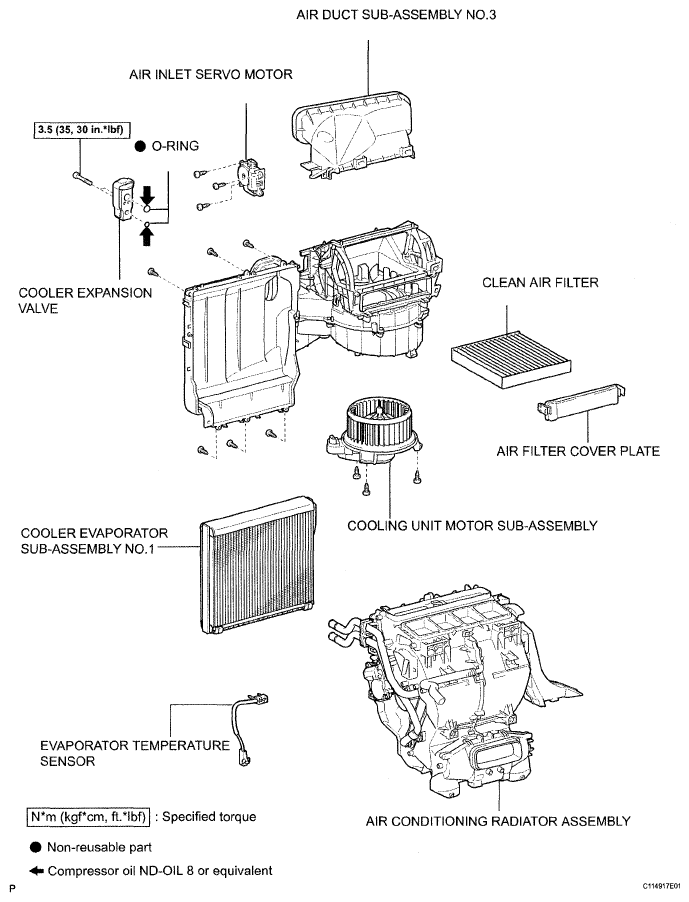

Fig 2: Blower Unit Components With Torque Specifications (2 Of 2)
G05004896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
