Avalon XLS
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (2GR-FE)
>>
SFI System
>>
Circuit Test
>>
VC Output Circuit
>>
Wiring Diagram
VC Output Circuit: Wiring Diagram

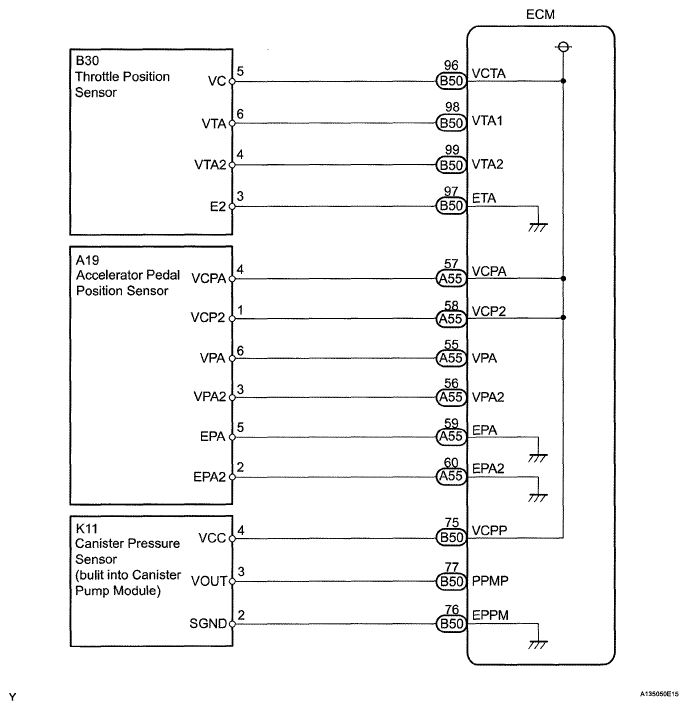

Fig 1: VC - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

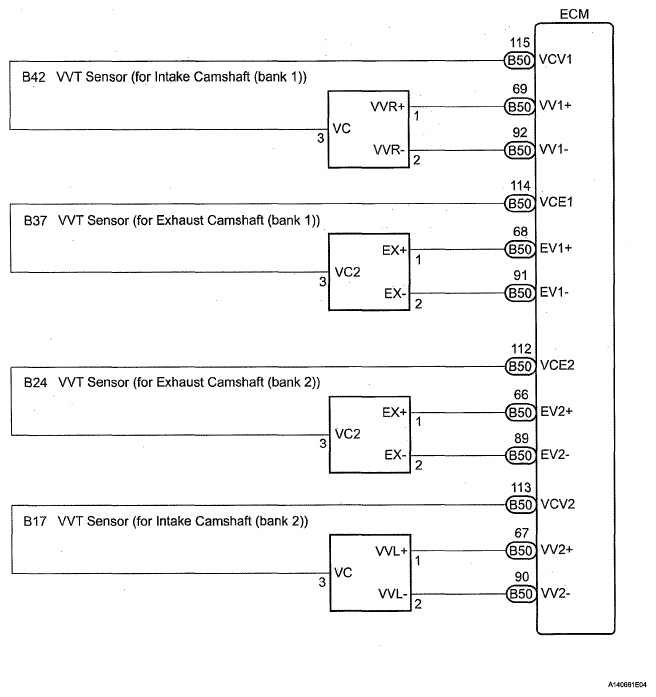

Fig 2: VC - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
