System Diagram

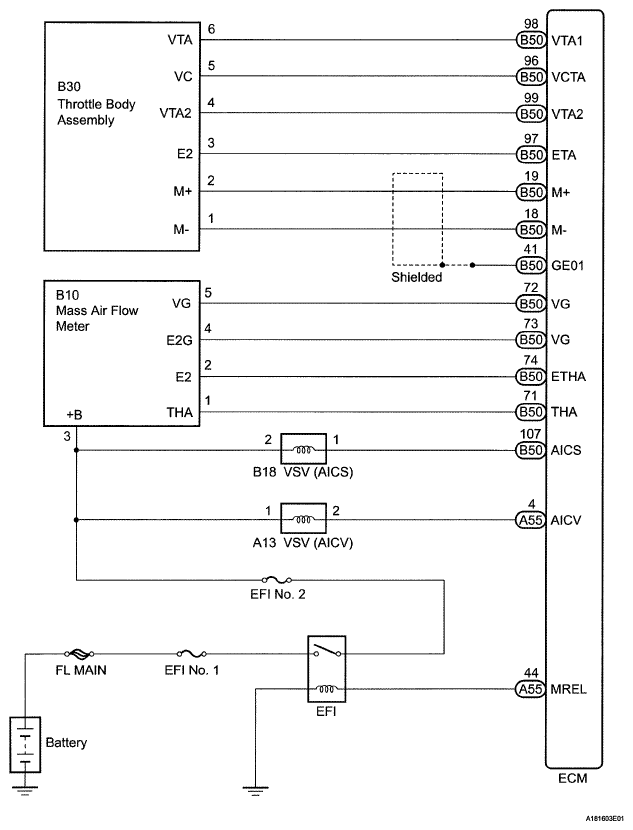

Fig 1: Intake Air Control System Circuit Diagram

G05405415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
