System Diagram

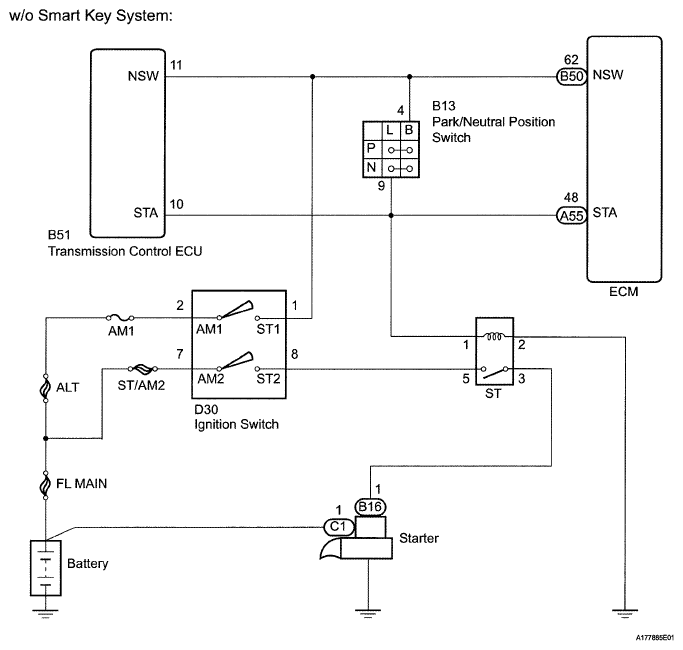

Fig 1: Starting System - System Diagram (1 Of 2)
G05405555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

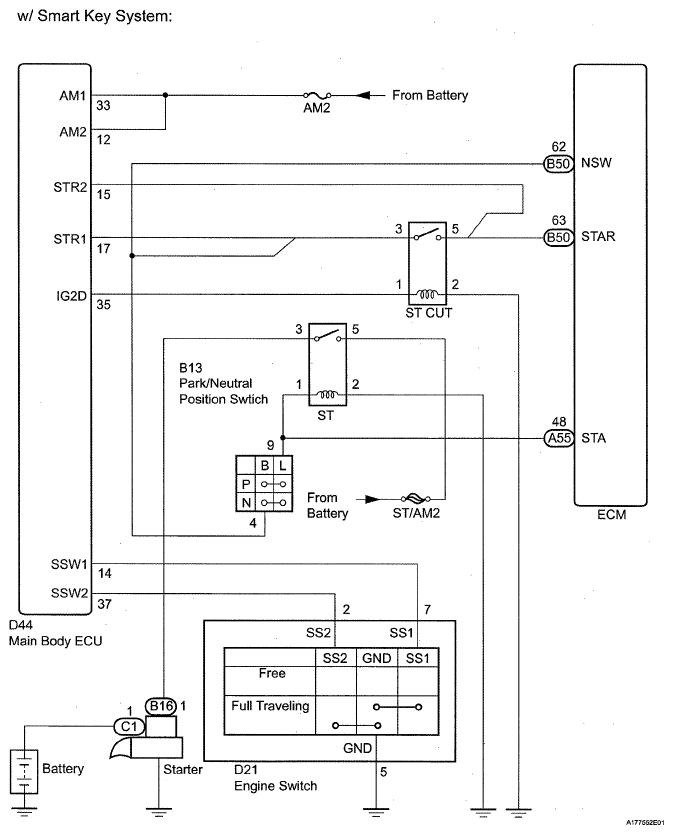

Fig 2: Starting System - System Diagram (2 Of 2)
G05405556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
