Inspection Procedure

1. Connect Techstream to the DLC3.
2. Turn the engine switch on (IG) and press Techstream main switch on.
3. Read the Data List according to the displays on the tester.

   Power Source Control:

   DIAGNOSTIC NOTE CHART



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   ACC Relay Monitor	Status of ACC Relay Monitor / ON or OFF	ON: Engine switch ON (ACC) OFF: Engine switch OFF	-

   OK: "ON" (engine switch on (ACC)) appears on the screen.

   Result

   RESULT CHART



   Condition	Proceed to
   NG	C
   OK (When troubleshooting according to the PROBLEM SYMPTOM TABLE)	B
   OK (When troubleshooting according to the DTC chart)	A

B : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

C: Go to step 2

A : REPLACE POWER SOURCE CONTROL ECU

1. Remove the ACC relay for the instrument panel J/B.
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   3 - 5	10 kΩ or higher
   3 - 5	Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

   Fig 1: ACC Relay Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RELAY

OK: Go to next step

1. Disconnect the D44 ECU connector.
   Fig 2: Disconnecting D44 ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   TERMINAL SPECIFIED CONDITION CHART



   Terminal No. (Symbol)	Specified Condition
   J/B ACC relay terminal 2 - D44-11 (ACCD)	Below 1 Ω
   J/B ACC relay terminal 2 - Body ground	10 kΩ or higher
   J/B ACC relay terminal 1 - Body ground	Below 1 Ω.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

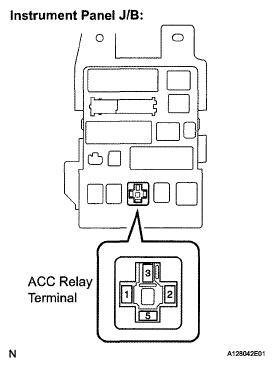

Fig 3: ACC Relay Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE POWER SOURCE CONTROL ECU
