System Diagram

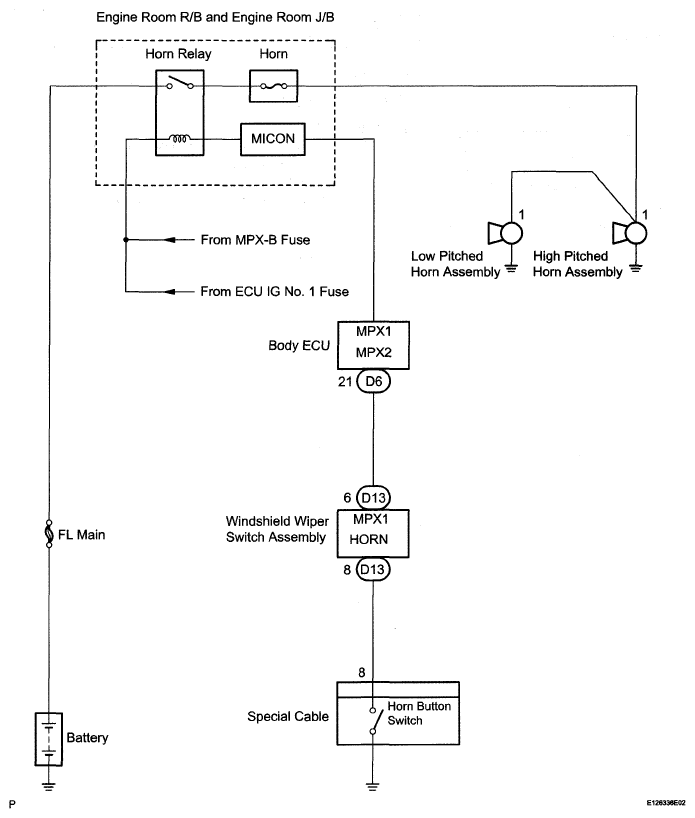

Fig 1: Horn System - System Diagram

G05006512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
