Parking Brake Assembly: Components

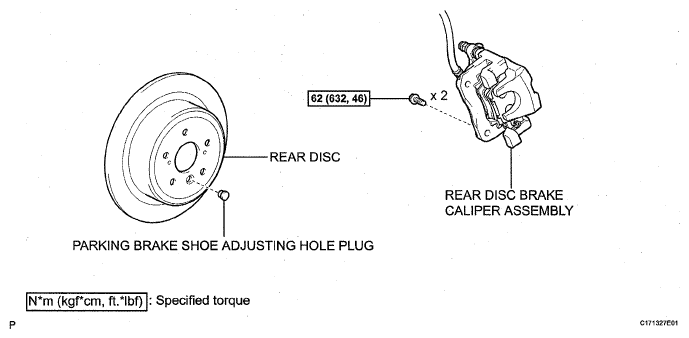

Fig 1: Parking Brake Assembly Replacement Components With Torque Specifications (1 Of 2)
G05406839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

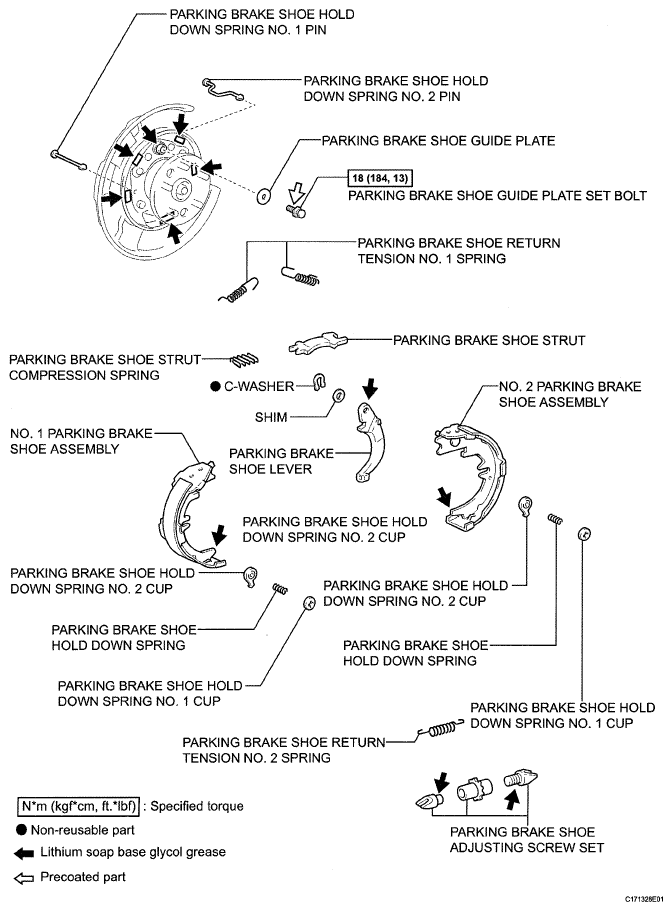

Fig 2: Parking Brake Assembly Replacement Components With Torque Specifications (2 Of 2)
G05406840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
