Rear Power Window Switch LH Circuit: Wiring Diagram

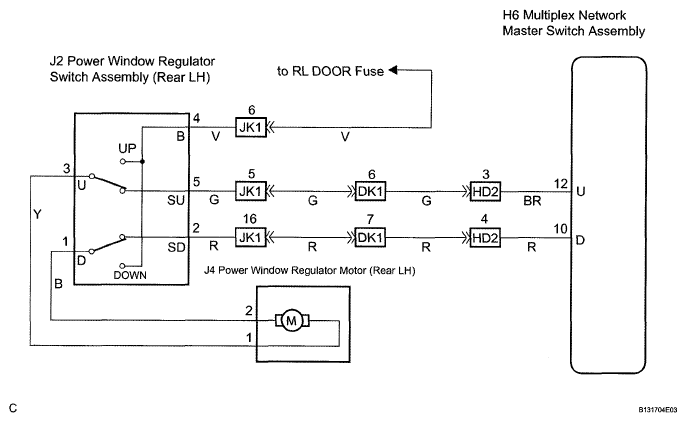

Fig 1: Rear Power Window Switch LH - Wiring Diagram

G05408222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
