TRANSPONDER KEY AMPLIFIER (w/o Smart Key System): Components

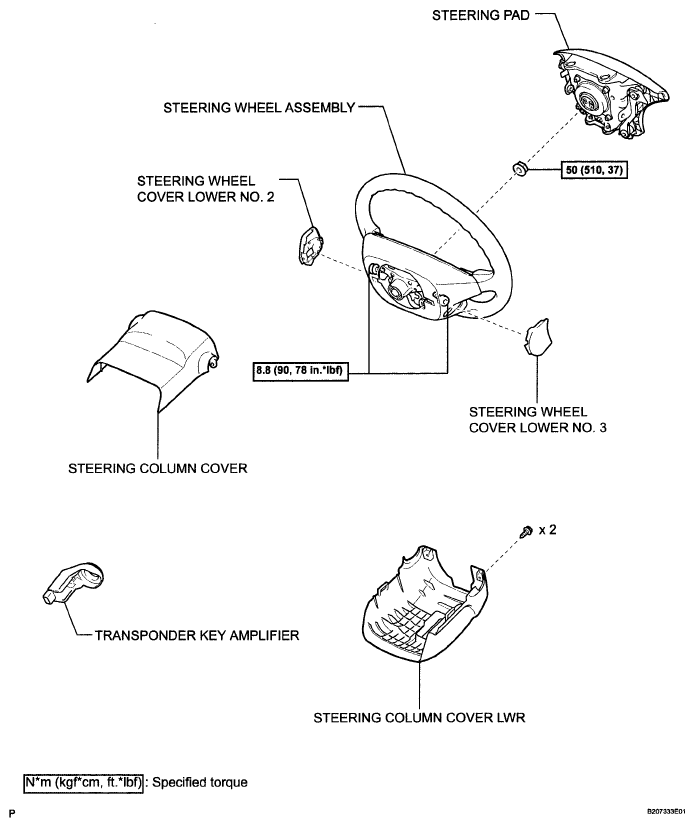

Fig 1: Transponder Key Amplifier Replacement Components With Torque Specifications(1 Of 2)
G06128847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

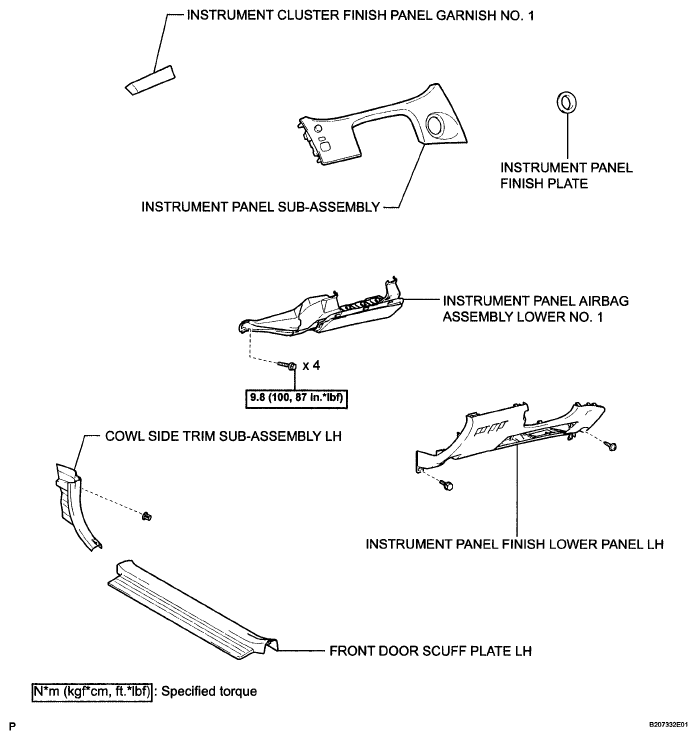

Fig 2: Transponder Key Amplifier Replacement Components With Torque Specifications (2 Of 2)
G06128848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
