Parts Location

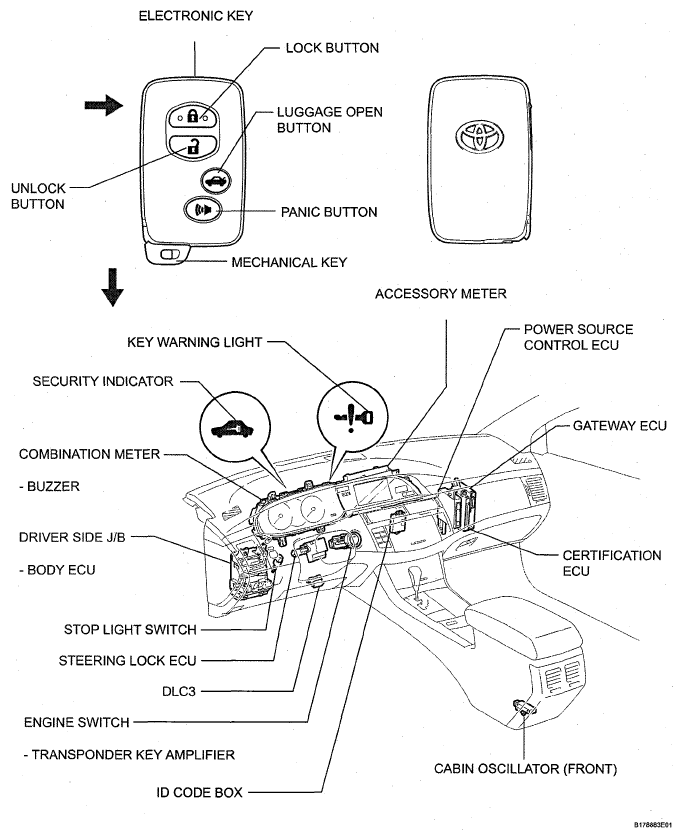

Fig 1: Identifying Smart Key System Parts Location (1 Of 3)
G05407536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

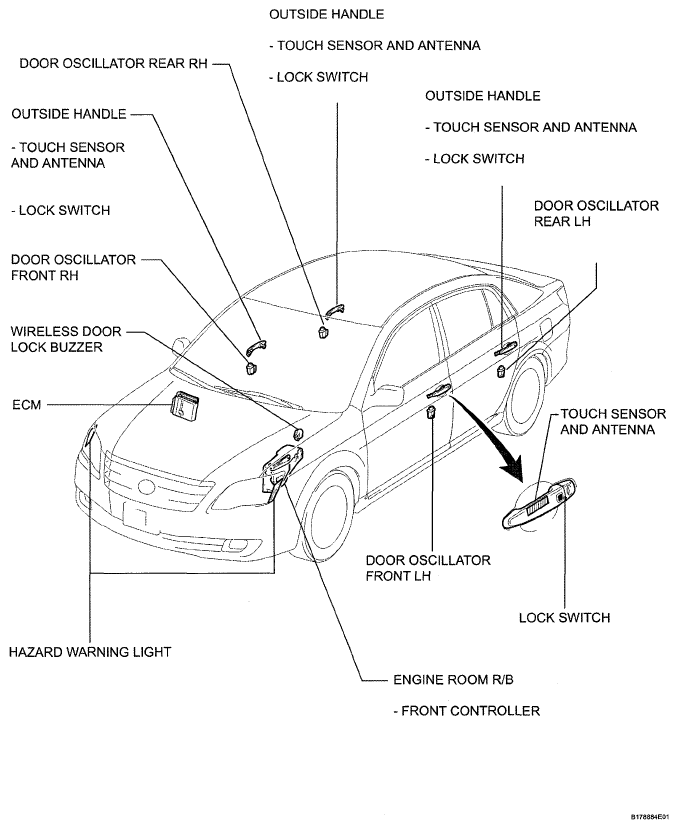

Fig 2: Identifying Smart Key System Parts Location (2 Of 3)
G05407537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Smart Key System Parts Location (3 Of 3)
G05006001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
