Certification ECU Power Source Circuit: Wiring Diagram

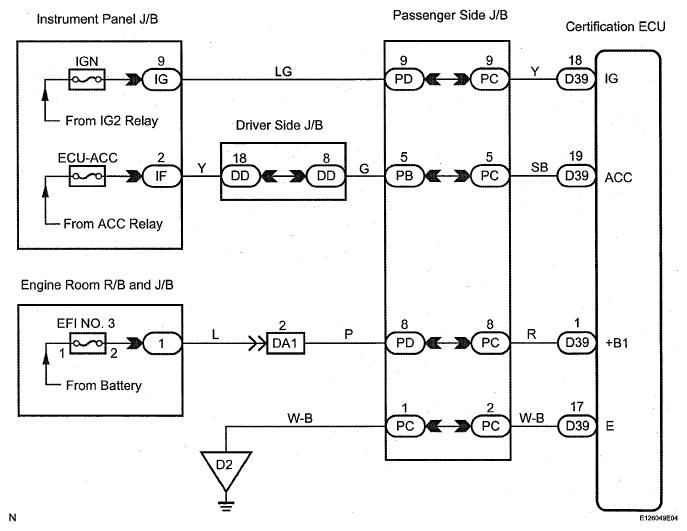

Fig 1: Certification ECU Power Source - Wiring Diagram

G05407614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
