Parts Location

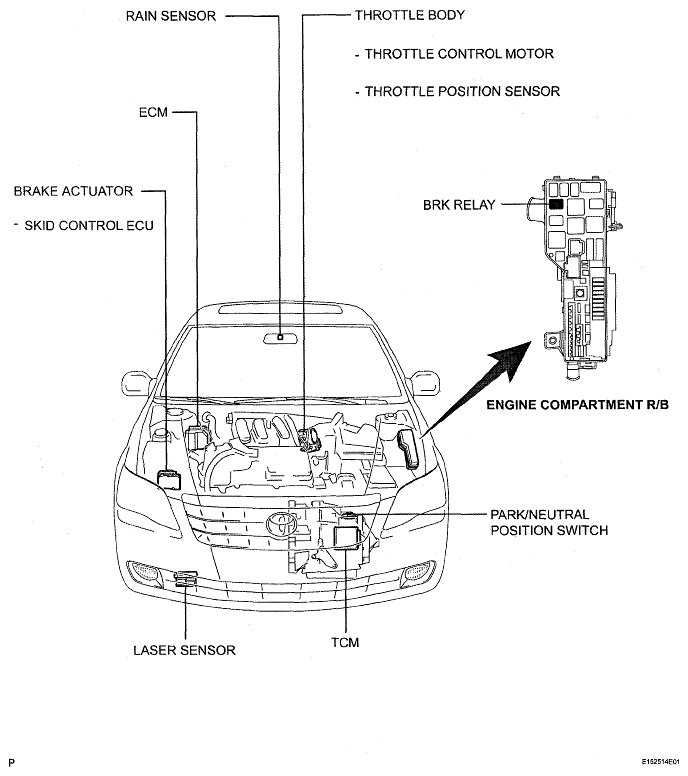

Fig 1: Identifying Dynamic Laser Cruise Control System Part Location (1 Of 2)
G05407283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

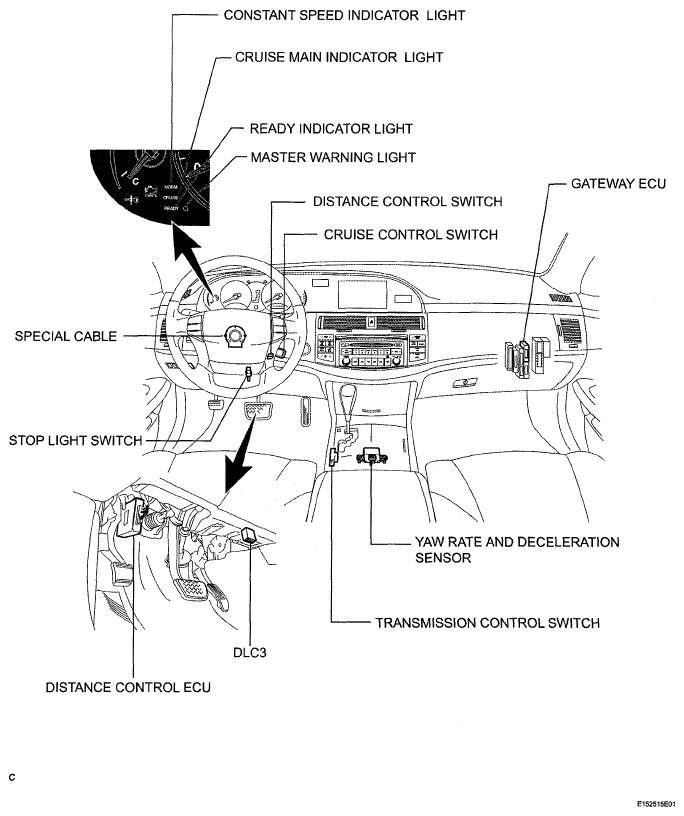

Fig 2: Identifying Dynamic Laser Cruise Control System Part Location (2 Of 2)
G05407284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
