Inspection Procedure

  1. CHECK RESISTANCE OF COMMUNICATION LINE
    1. Disconnect the D16, D7 and IR connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      D16-1 (MPX+) - IR-9 Always Below 1 Ω
      D16-2 (GBSI) - D7-14 (GBS) Below 1 Ω

      Result

      RESULT REFERENCE

      Result Proceed to
      Both are OK A
      One is OK B
      Both are NG C

    B : REPLACE OPTION CONNECTOR AND REPAIR OR REPLACE HARNESS OR CONNECTOR

    C : REPAIR OR REPLACE HARNESS OR CONNECTOR

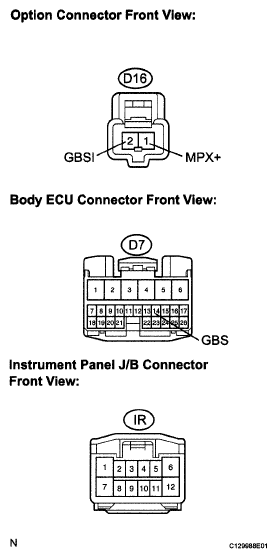

    Fig 1: Identifying Option Connector, Instrument Panel J/B And Body ECU Connector Terminals
    G05007113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    A : REPLACE OPTION CONNECTOR
