Inspection Procedure

1. Disconnect the E2 meter connector.
2. Measure the voltage according to the value(s) in the table below.

   Voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   E2-1 - Body ground	Always	10 to 14 V
   E2-2 - Body ground		10 to 14 V

3. Measure the resistance according to the value(s) in the table below.
   Fig 1: Identifying Combination Meter ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   E2-10 - Body ground	Always	Below 1 Ω
   E2-12 - Body ground		Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step.

1. Disconnect the E2, E23 and 1G ECU connectors.
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   RESISTANCE SPECIFICATION



   Tester Condition	Condition	Specified Condition
   E2-4 - E23-12 (MPD2)	Always	Below 1 Ω
   E2-16 - IG-7		Below 1 Ω

   Result

   RESULT REFERENCE



   Result	Proceed to
   Both are OK	A
   One is OK	B
   Both are NG	C

B : REPLACE COMBINATION METER ECU AND REPAIR OR REPLACE HARNESS OR CONNECTOR

C : REPAIR OR REPLACE HARNESS OR CONNECTOR

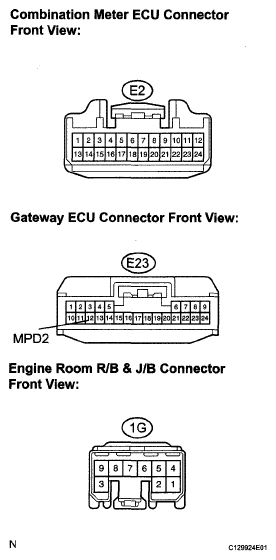

Fig 2: Identifying Combination Meter ECU And Gateway ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

A : REPLACE COMBINATION METER ECU
