Multiplex Communication System (AVC-LAN): Notes

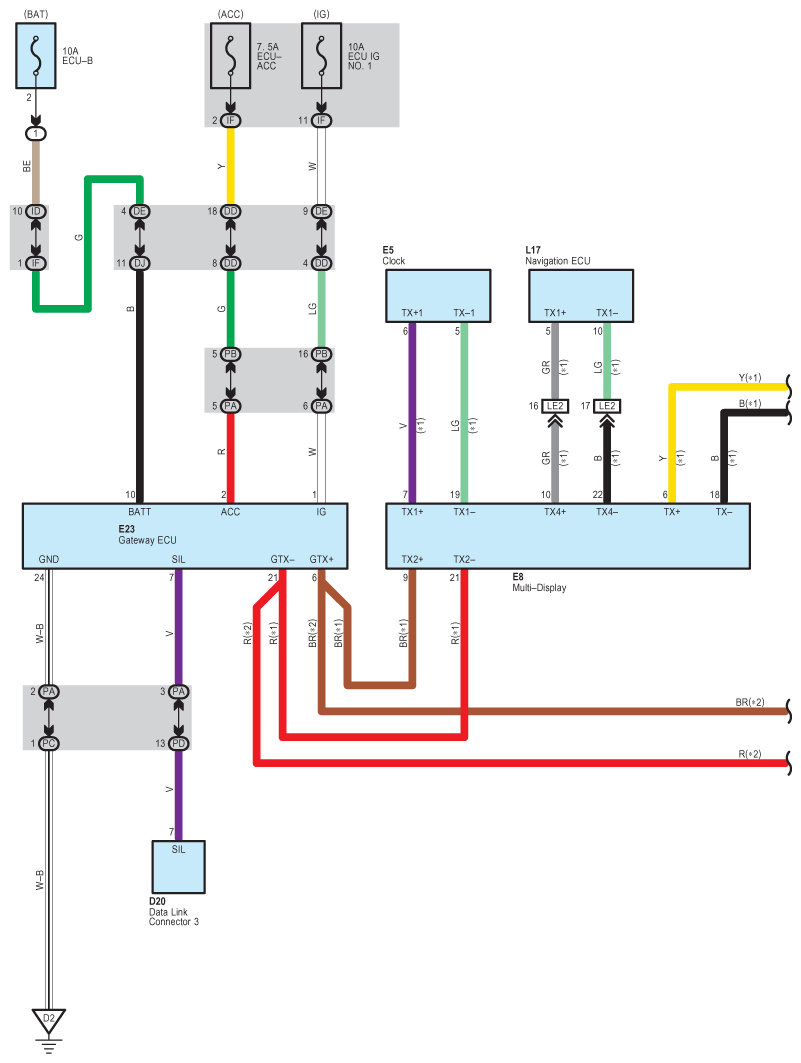

Fig 1: Multiplex Communication System (AVC-LAN) - Circuit Diagram (1 Of 2)
G07615120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

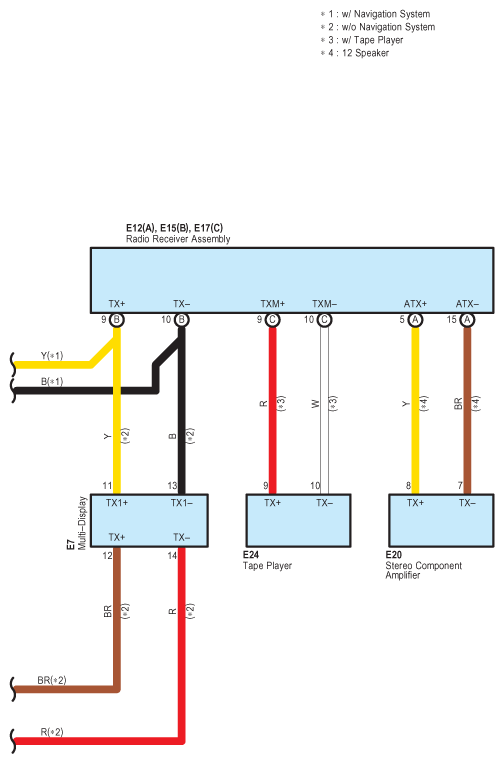

Fig 2: Multiplex Communication System (AVC-LAN) - Circuit Diagram (2 Of 2)
G07615121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
