Luggage Compartment Door Opener: Notes

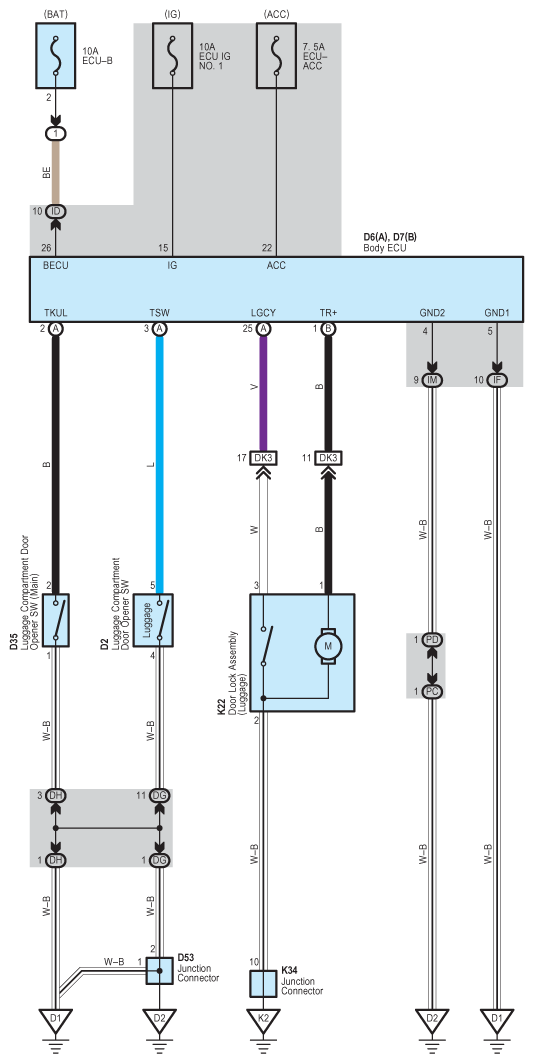

Fig 1: Luggage Compartment Door Opener - Circuit Diagram

G07615284

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
