Remote Up/Down Function does not Operate: Wiring Diagram

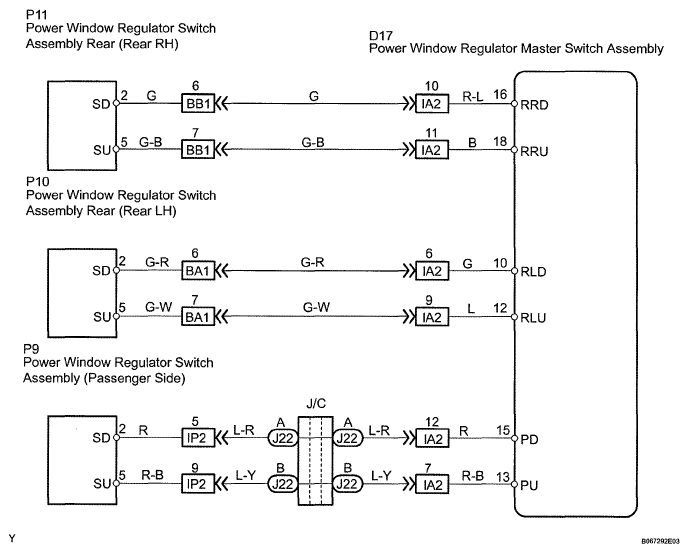

Fig 1: Remote Up/Down Function - Wiring Diagram

G05557489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
