VVT Sensor: Components

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (1 Of 2)
G05553873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

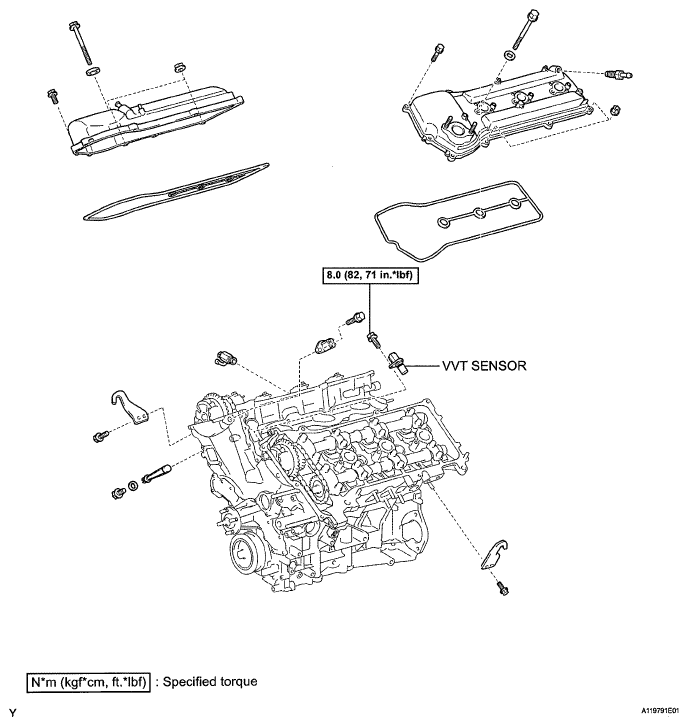

Fig 2: Identifying VVT Sensor Replacement Components With Torque Specifications (2 Of 2)
G05553874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
