Throttle Body: Components

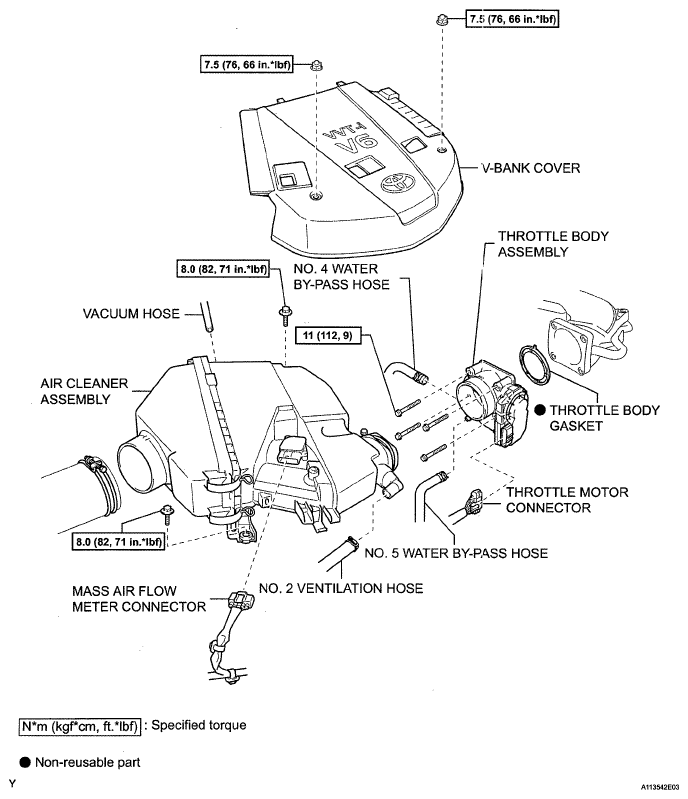

Fig 1: Throttle Body Replacement Components With Torque Specifications

G05553848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
