Rear Coil Spring: Components

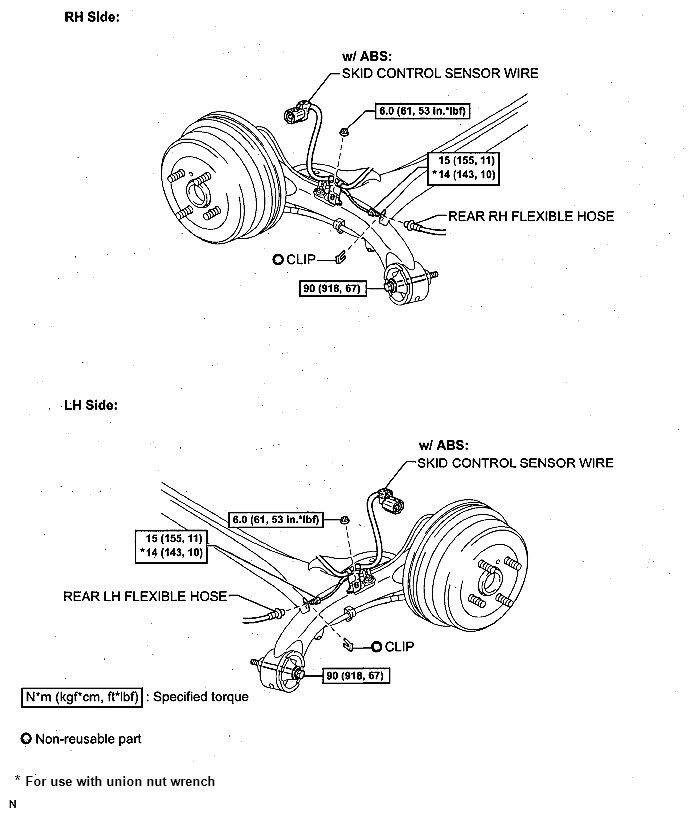

Fig 1: Rear Coil Spring Replacement Components (1 Of 3) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

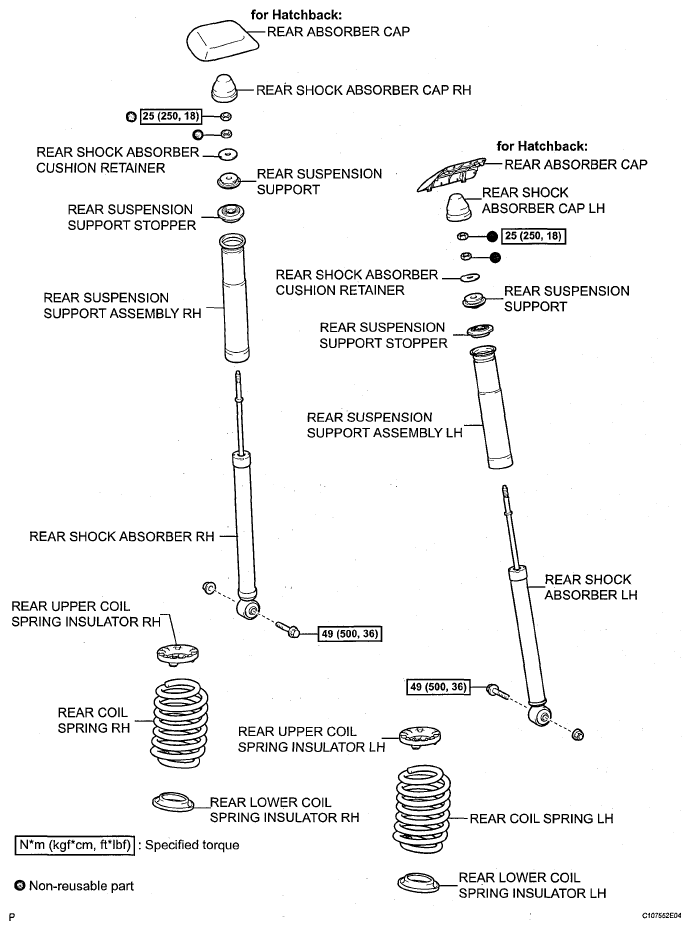

Fig 2: Rear Coil Spring Replacement Components (2 Of 3) With Torque Specifications

Fig 3: Rear Coil Spring Replacement Components (3 Of 3) With Torque Specifications
