Front Wheel Alignment: Adjustment

INSPECT TIRES (See INSPECTION )

MEASURE VEHICLE HEIGHT

Hatchback:

Vehicle height

FRONT WHEEL ALIGNMENT REFERENCE

Destination	A-B	C-D
Except for Rough Road Package	88 mm (3.46 in.)	20 mm (0.79 in.)
Rough Road Package	68 mm (2.68 in.)	0 mm (0 in.)

Measuring points:

A: Ground clearance of front wheel center

B: Ground clearance of lower arm set front bolt center

C: Ground clearance of rear wheel center

D: Ground clearance of axle beam set bolt center

NOTE: Before inspecting the wheel alignment, check the vehicle height.

HINT:

Bounce the vehicle up and down at the corners to stabilize the suspension before inspecting the vehicle height.

Fig 1: Measuring Vehicle Height

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Sedan:

Vehicle height

FRONT WHEEL ALIGNMENT REFERENCE

Destination	A-B	C-D
Except for Rough Road Package	87 mm (3.43 in.)	16 mm (0.63 in.)
Rough Road Package	67 mm (2.64 in.)	-2 mm (-0.08 in.)

Measuring points:

A: Ground clearance of front wheel center

B: Ground clearance of lower arm set front bolt center

C: Ground clearance of rear wheel center

D: Ground clearance of axle beam set bolt center

NOTE: Before inspecting the wheel alignment, check the vehicle height.

Fig 2: Measuring Vehicle Height For Sedan

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Bounce the vehicle up and down at the corners to stabilize the suspension before inspecting the vehicle height.

INSPECT TOE-IN

Toe-in: Hatchback

TOE-IN REFERENCE

A+B	C-D
0°09'+-0°13' (0.15° +- 0.22°)	1.5 +- 2.0 mm (0.06 +- 0.08 in.)

Sedan

TOE-IN REFERENCE

A+B	C-D
0°12'+-0°06' (0.20°+-0.10°)	2.0 +- 2.0 mm (0.08 +- 0.08 in.)

Fig 3: Adjusting Toe-In

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Only measure C-D when A+B can not be measured. If the toe-in is not within the specified value, adjust it at the rack ends.

ADJUST TOE-IN

Measure the thread lengths of the right and left rack ends.
Standard: Difference in thread length of 1.5 mm (0.059 in.) or less
Remove the rack boot set clips.
Loosen the tie rod end lock nuts.
Adjust the rack ends if the difference in thread length between the right and left rack ends is not within the specified range.

Fig 4: Locating Right & Left Rack Ends
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Extend the shorter rack end if the measured toe-in deviates toward the outer-side.
2. Shorten the longer rack end if the measured toe-in deviates toward the inner-side.
Turn the right and left rack ends by an equal amount to adjust the toe-in.
HINT:

Try to adjust the toe-in to the center of the specified range.

Make sure that the lengths of the right and left rack ends are the same.

Toe-in

TOE-IN REFERENCE

Body Type	Toe-in
Hatchback	1.5 +- 1.0 mm (0.06 +- 0.04 in.)
Sedan	2.0 +- 1.0 mm (0.08 +- 0.04 in.)

Tighten the tie rod end lock nuts to the specified torque.
Torque: 75 N*m (760 kgf*cm, 55 ft.*lbf)

NOTE: Provisionally tighten the lock nut while holding the hexagonal part of the steering rack end so that the lock nut and the steering rack end do not turn together. Hold the width across flat of the tie rod end and tighten the lock nut.
Place the boots on the seats.
Using pliers, install the clip.
NOTE: Make sure that the boots are not twisted.

Fig 5: Tightening Tie Rod End Lock Nuts To Specified Torque
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT WHEEL TURNING ANGLE

Fully turn the steering wheel left and right, and measure the wheel turning angle.

Fig 6: Inspecting Wheel Turning Angle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wheel turning angle

WHEEL TURNING ANGLE REFERENCE

Destination	Inside Wheel	Outside Wheel (Reference)
Except for Rough Road Package	40°57'+-2° (40.95° +- 2°)	35°17' (35.29°)
Rough Road Package	41°22'+-2° (41.37°+-2°)	35°45' (35.75°)

If the right and left inside wheel angles are not within the specified range, check the right and left rack end lengths.

INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

Put the front wheel on the center of the alignment tester.
Remove the wheel cap.
Set the camber-caster-steering axis inclination gauge at the center of the axle hub or drive shaft.

Inspect the camber, caster and steering axis inclination.

Fig 7: Putting Front Wheel On Center Of Alignment Tester

Camber, caster and steering axis inclination: Hatchback

CAMBER, CASTER AND STEERING AXIS INCLINATION

Destination	Camber	Caster	Steering Axis Inclination (Reference)
Except for Rough Road Package	-0°10'+-45' (-0.17°+-0.75°)	4°46'+-45' (4.77°+-0.75°)	11°18' (11.30°)
Rough Road Package	0°06' +- 45' (0.10°+-0.75°)	4°27'+-45' (4.45°+- 0.75°)	10°47' (10.78°)

Sedan

CAMBER, CASTER AND STEERING AXIS INCLINATION

Destination	Camber	Caster	Steering Axis Inclination (Reference)
Except for Rough Road Package	-0°10'+-45' (-0.17°+-0.75°)	4°39' +- 45' (4.65°+-0.75°)	11°16' (11.27°)
Rough Road Package	0°06' +- 45' (0.10°+-0.75°)	4°23' +- 45' (4.38°+-0.75°)	10°47' (10.78°)

NOTE:

Perform the inspection while the vehicle is empty (without a spare tire or tools on board).
The tolerance for the difference between the left and right wheels is 30' (0.5°) or less for both the camber and caster.

Remove the camber-caster-steering axis inclination gauge and attachment.
Install the wheel cap.
If the caster and steering axis inclination are not within the specified values after the camber has been correctly adjusted, recheck the suspension parts for damage and wear.

ADJUST CAMBER

NOTE: Inspect the toe-in after the camber has been adjusted.

Remove the front wheel.
w/ ABS:
1. Remove the bolt and separate the speed sensor and flexible hose.

  Fig 8: Identifying Front Speed Sensor (With ABS) Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the 2 nuts on the lower side of the shock absorber.
HINT:

Keep the bolt from rotating while loosening and removing the nuts.
Clean the installation surfaces of the shock absorber and steering knuckle.
Provisionally install the 2 nuts (Step a).

Fig 9: Locating Shock Absorber Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fully push or pull the axle hub in the direction of the required adjustment (Step b).

Fig 10: Pulling Axle Hub
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Tighten the 2 nuts.
Torque: 164 N*m (1,672 kgf*cm, 121 ft.*lbf)

HINT:

Keep the bolt from rotating while loosening and removing the nuts.

Fig 11: Locating Shock Absorber Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
w/ ABS:
1. Install the flexible hose and speed sensor with the bolt.
  Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)

  NOTE: Install the flexible hose and speed sensor without twisting them.
Install the front wheel.
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

Fig 12: Identifying Front Speed Sensor (With ABS) Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the camber.

If the measured value is not within the specification, calculate the required adjustment amount using the formula below.

(Camber adjustment amount) = Center of specified range - Measured value

Check the combination of installed bolts. Select appropriate bolts from the table below to adjust the camber to within the specified range.

HINT:

Try to adjust the camber to the center of the specified range.

Fig 13: Identifying Strut Bolts

CAMBER SPECIFICATIONS

Move axle toward (+) in step (B)	Refer to Fig 14 (Move axle toward positive side)
Move axle toward (-) in step (B)	Refer to Fig 15 (Move axle toward negative side)

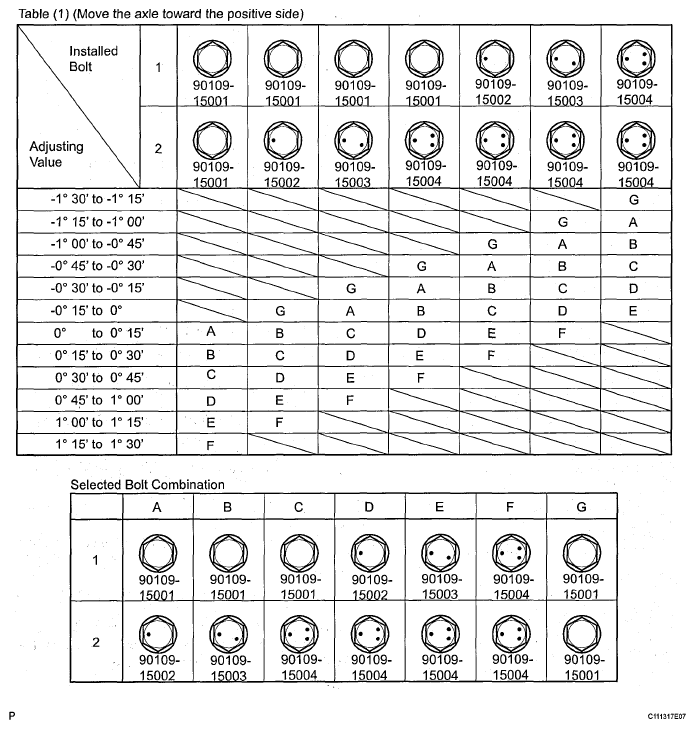

Table (1) (Move the axle toward the positive side).

Fig 14: Bolt Shape & Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

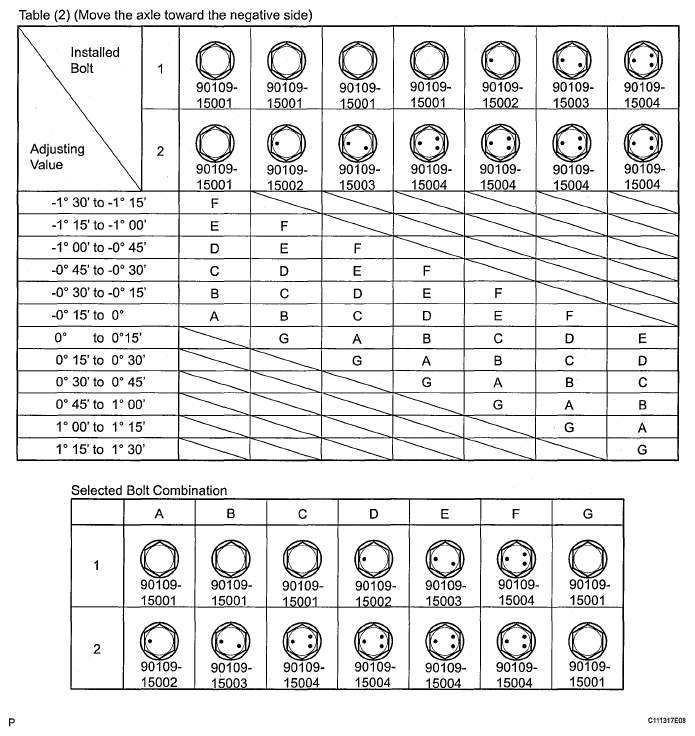

Table (2) (Move the axle toward the negative side).

Fig 15: Bolt Shape Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The body and suspension may be damaged if the camber is not correctly adjusted in accordance with Fig 15 .

NOTE: Replace the nut with a new one when replacing the bolt.
Repeat the steps mentioned above. At step (A), replace 1 or 2 selected bolts.
HINT:

Replace one bolt at a time when replacing 2 bolts.
