Front Stabilizer Bar: Components

Fig 1: Front Stabilizer Bar Replacement Components (1 Of 6) With Torque Specifications
G04831192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Stabilizer Bar Replacement Components (2 Of 6) With Torque Specifications
G04831193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Front Stabilizer Bar Replacement Components (3 Of 6) With Torque Specifications
G04831075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Front Stabilizer Bar Replacement Components (4 Of 6) With Torque Specifications
G04831076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

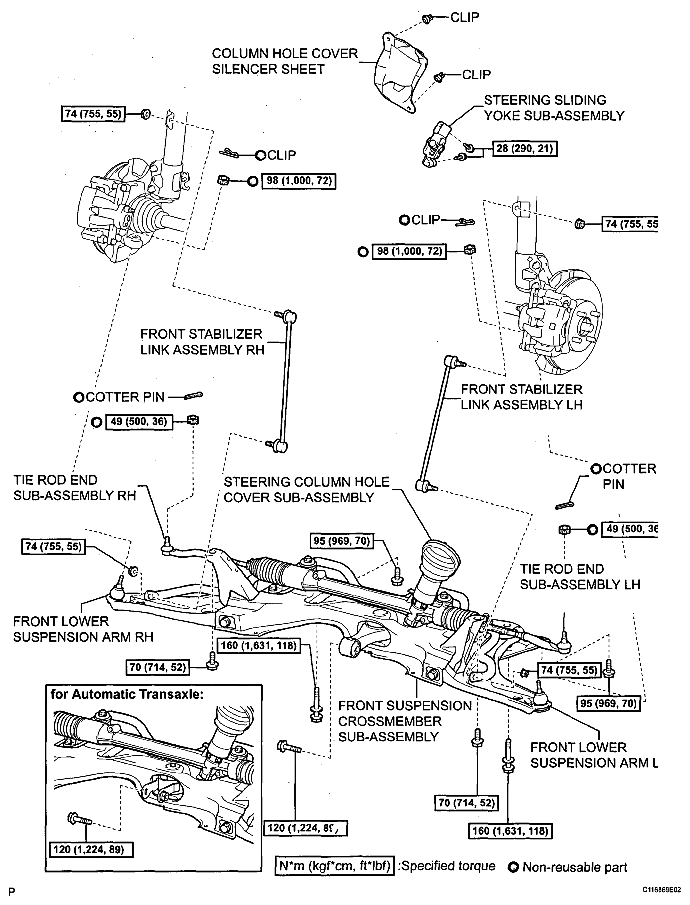

Fig 5: Front Stabilizer Bar Replacement Components (5 Of 6) With Torque Specifications
G04832093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

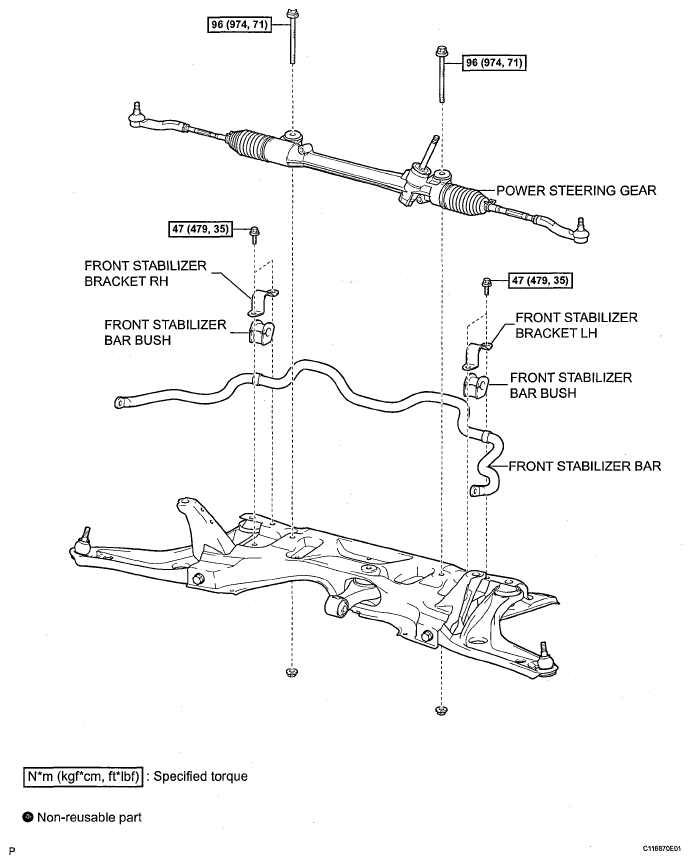

Fig 6: Front Stabilizer Bar Replacement Components (6 Of 6) With Torque Specifications
G04832094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
