Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (H/B)

G00440157

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment (S/D)

G00440158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Dash (H/B)

G00440159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash (S/D)

G00440160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Vehicle Overview (5 Door)

G00440161

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Room R/B & Engine Room J/B

G00440164

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

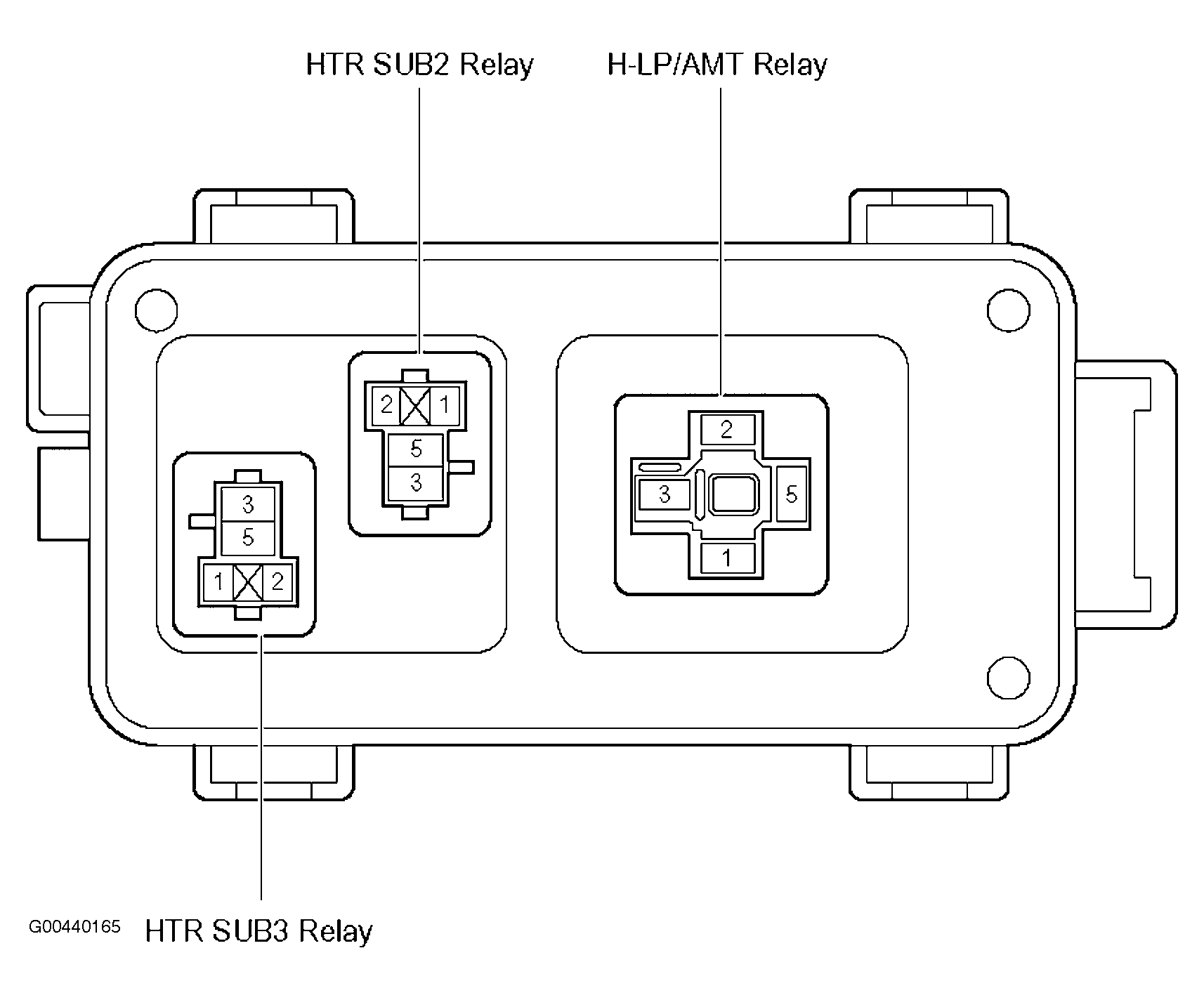

Fig 7: Engine Room R/B No. 2

G00440165

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Instrument Panel J/B

G00440806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

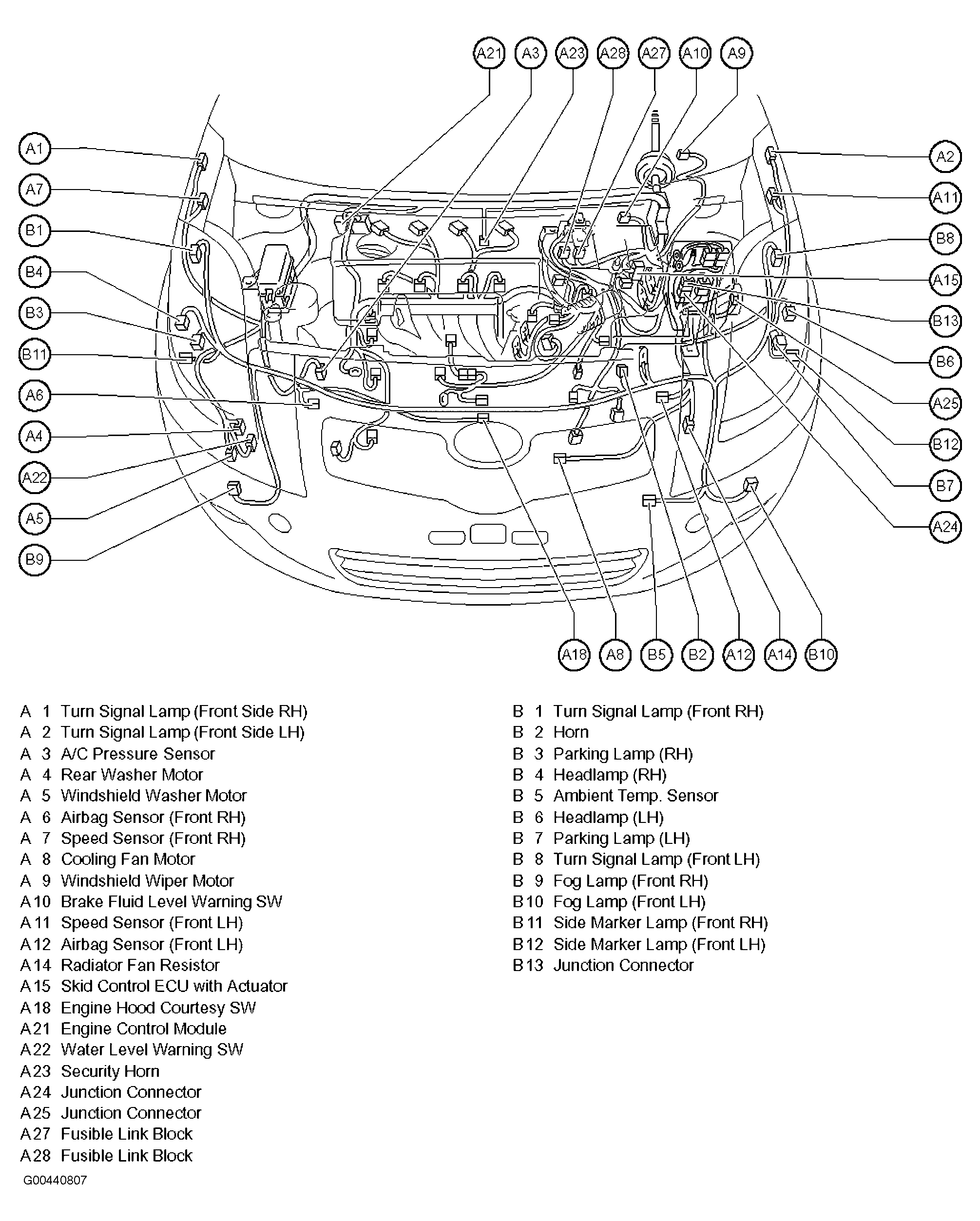

Fig 9: Engine Compartment (H/B)

G00440807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Compartment (H/B)

G00440808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Compartment (S/D)

G00440809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Compartment (S/D)

G00440810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

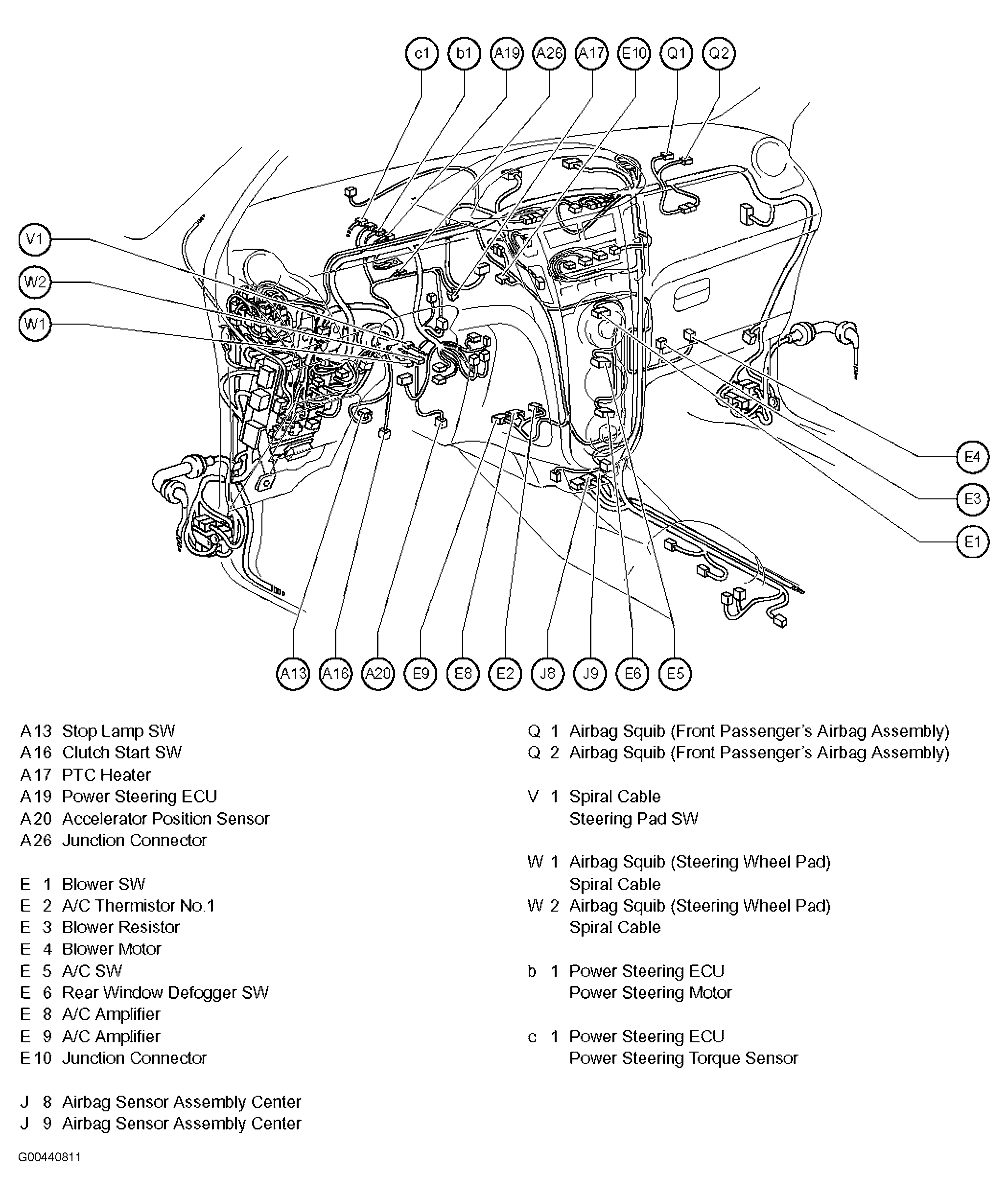

Fig 13: Dash (H/B)

G00440811

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dash (H/B)

G00440812

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Dash (S/D)

G00440813

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash (S/D)

G00440814

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Vehicle Overview (5 Door)

G00440815

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Vehicle Overview (5 Door)

G00440816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Vehicle Overview (3 Door)

G00440817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

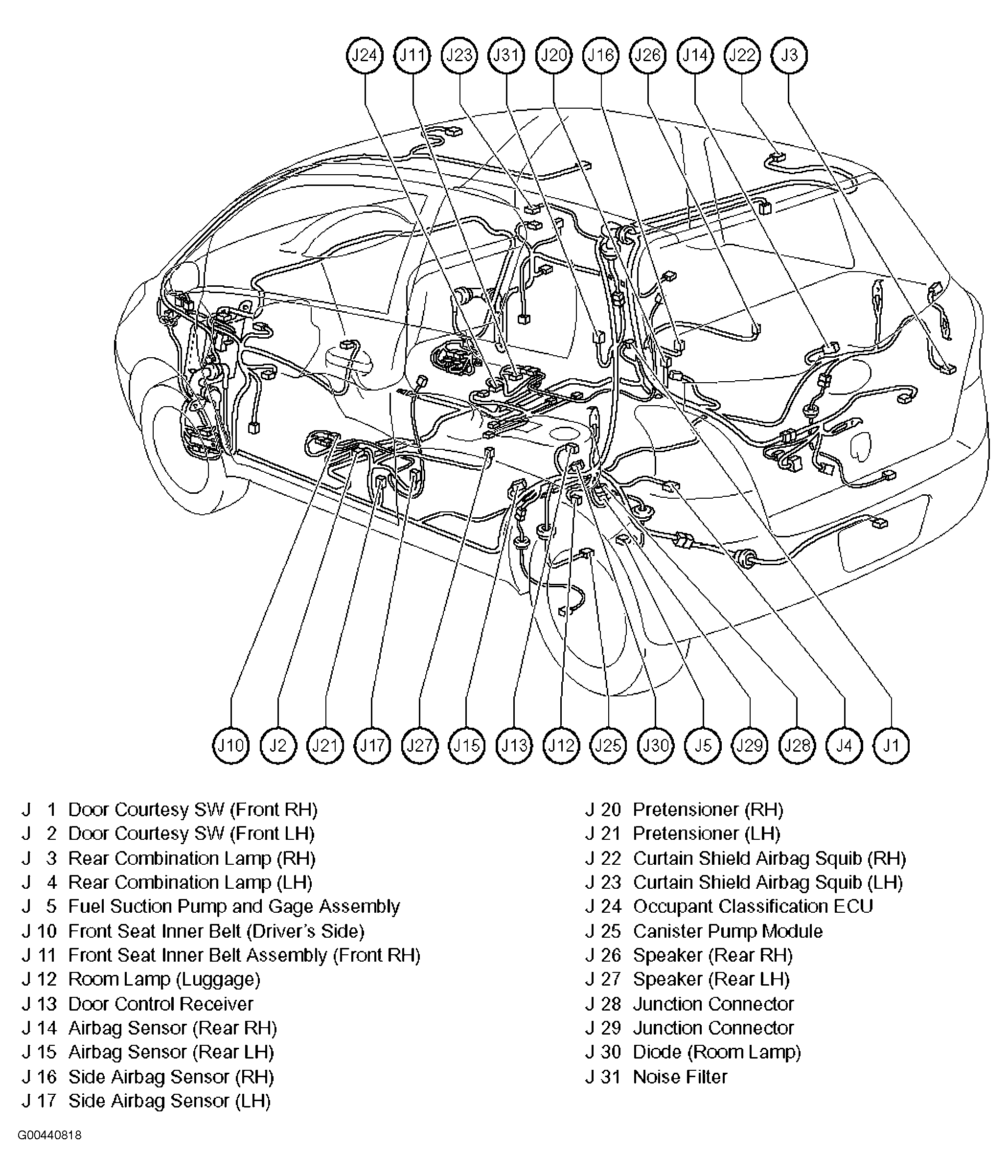

Fig 20: Vehicle Overview (3 Door)

G00440818

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Vehicle Overview (4 Door)

G00440819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Vehicle Overview (4 Door)

G00440820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Engine Compartment (H/B)

G00440821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Engine Compartment (S/D)

G00440822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

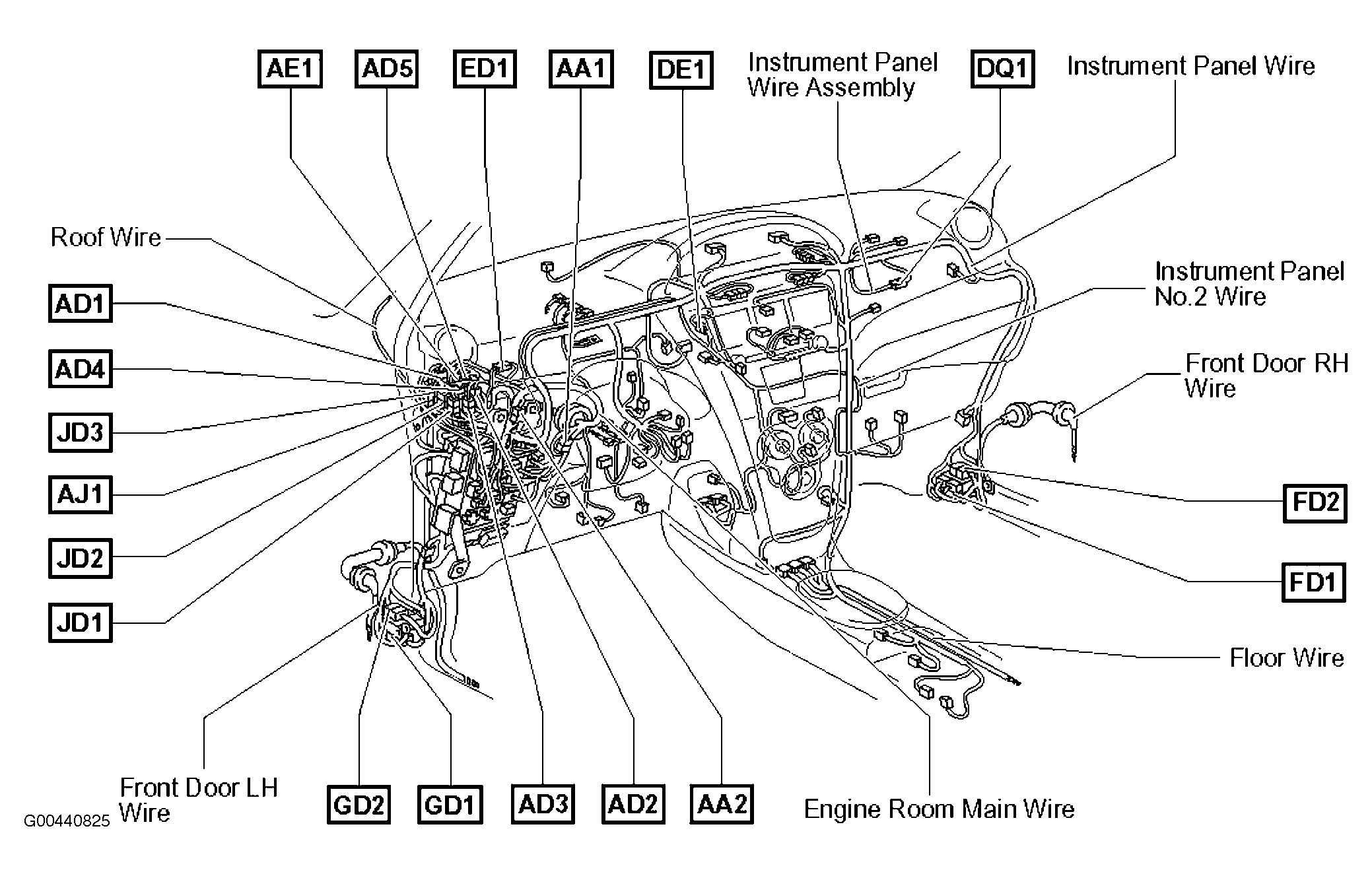

Fig 25: Dash (S/D)

G00440825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Dash (S/D)

G00440826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Vehicle Overview (5 Door)

G00440827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Vehicle Overview (3 Door)

G00440828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Vehicle Overview (4 Door)

G00440829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 30: Dash

G00458458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 31: Vehicle Overview (4 Door)

G00458457

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 32: Vehicle Overview (3 Door)

G00458456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 33: Underhood (H/B)

G00458453

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
