Oil Pump: Components

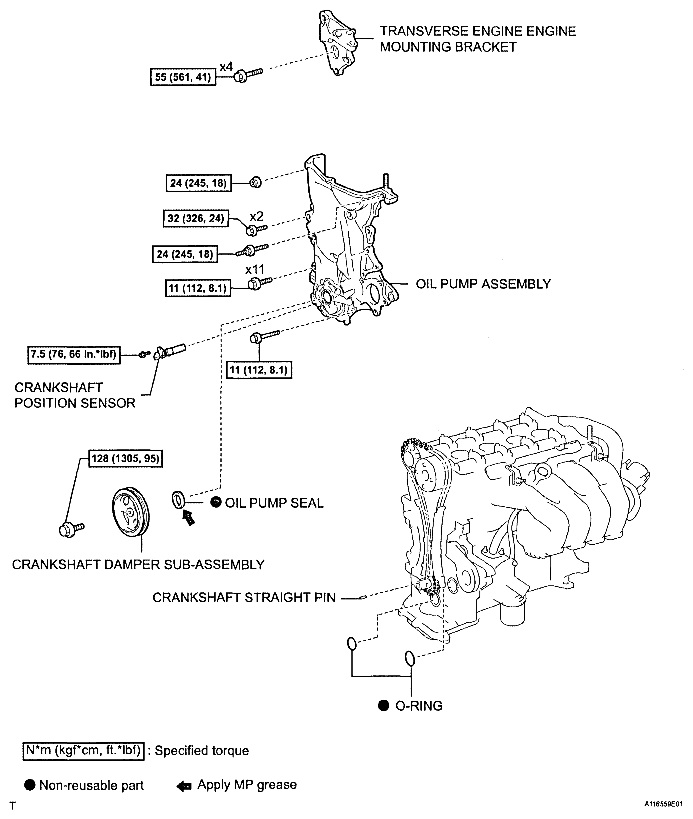

Fig 1: Oil Pump Replacement Components With Torque Specifications (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

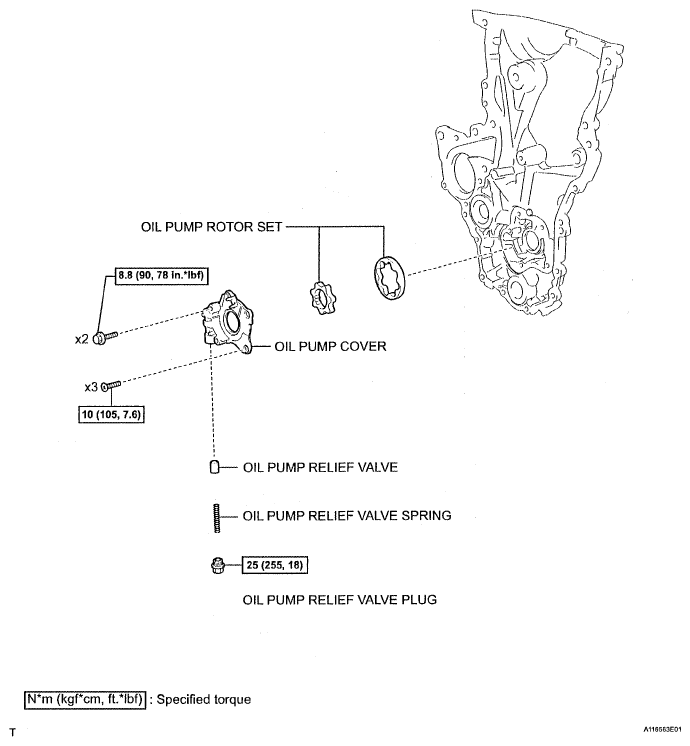

Fig 2: Oil Pump Replacement Components With Torque Specifications (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

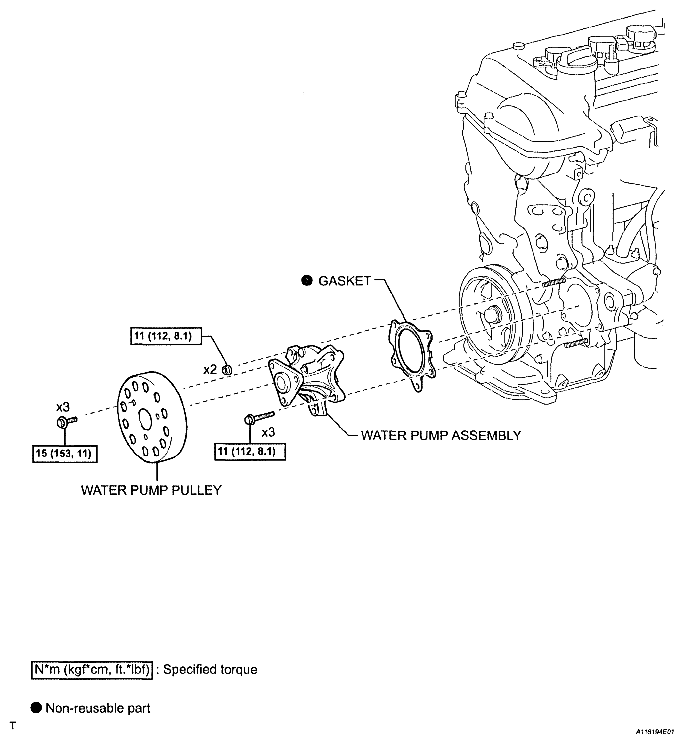

Fig 3: Oil Pump Replacement Components With Torque Specifications (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

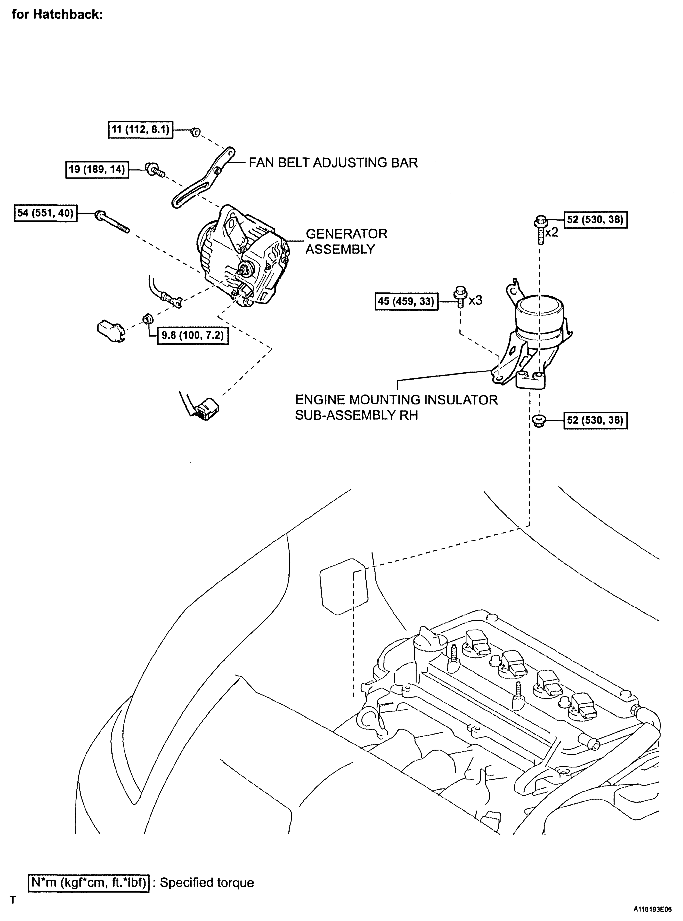

Fig 4: Oil Pump Replacement Components With Torque Specifications (For Hatchback) (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

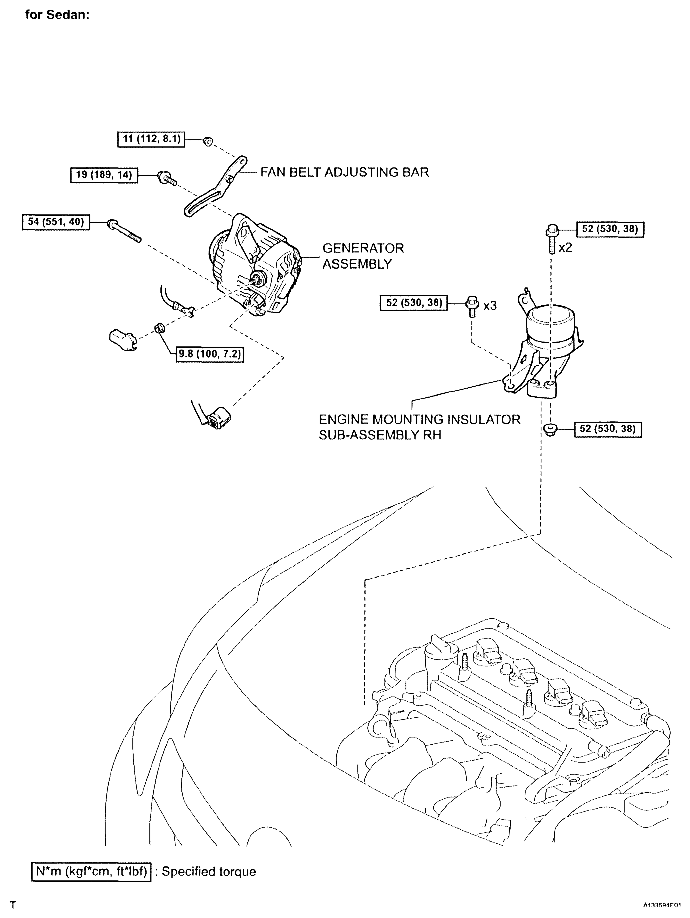

Fig 5: Oil Pump Replacement Components With Torque Specifications (For Sedan) (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Oil Pump Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Oil Pump Replacement Components With Torque Specifications (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Oil Pump Replacement Components With Torque Specifications (8 Of 11)

Fig 9: Oil Pump Replacement Components With Torque Specifications (9 Of 11)

Fig 10: Oil Pump Replacement Components With Torque Specifications (10 Of 11)

Fig 11: Oil Pump Replacement Components With Torque Specifications (11 Of 11)
