Stop Light System: Notes

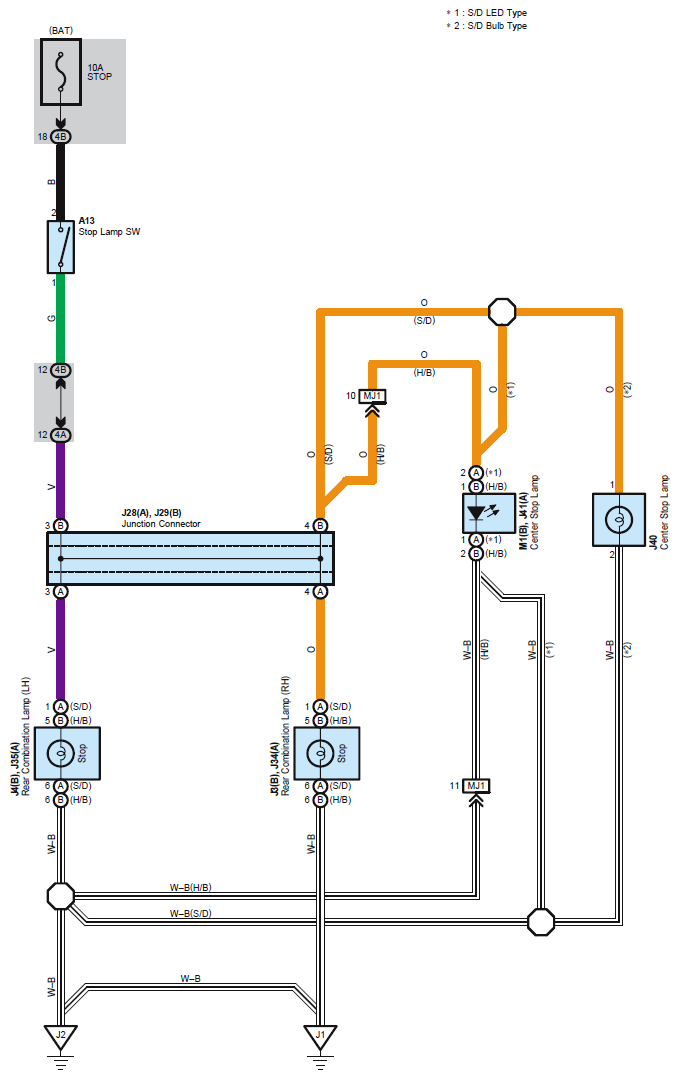

Fig 1: Stop Light - Circuit Diagram

G07604325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
