Starting System: Notes

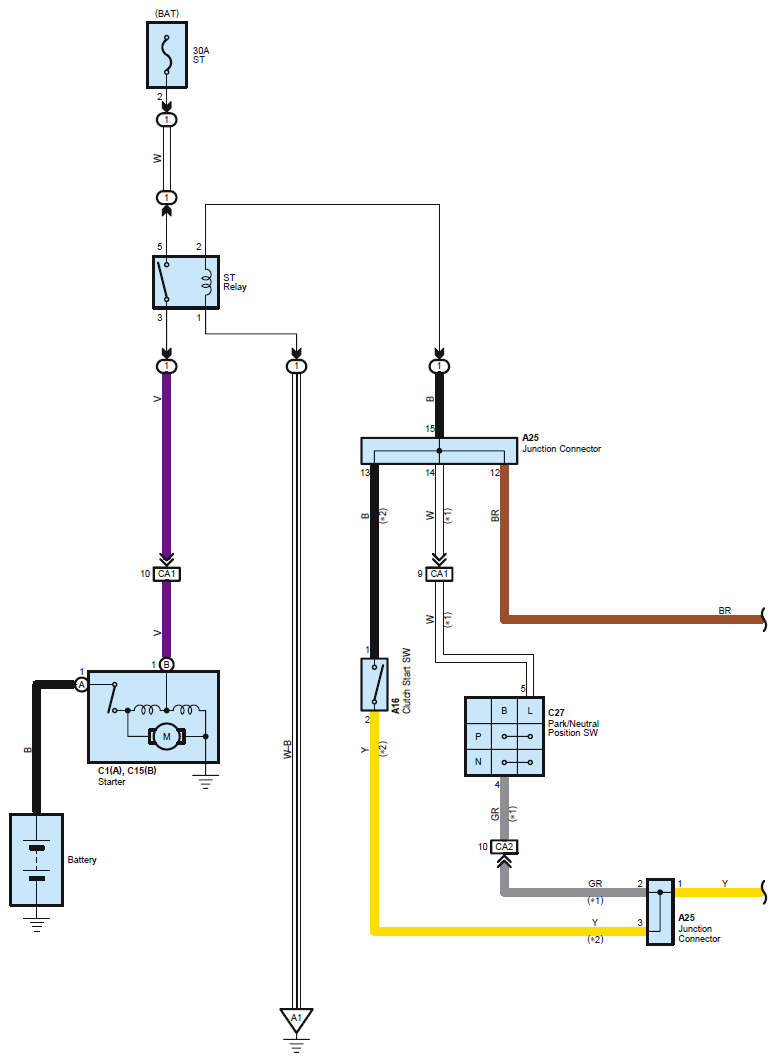

Fig 1: Starting - Circuit Diagram (1 Of 2)
G07604281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

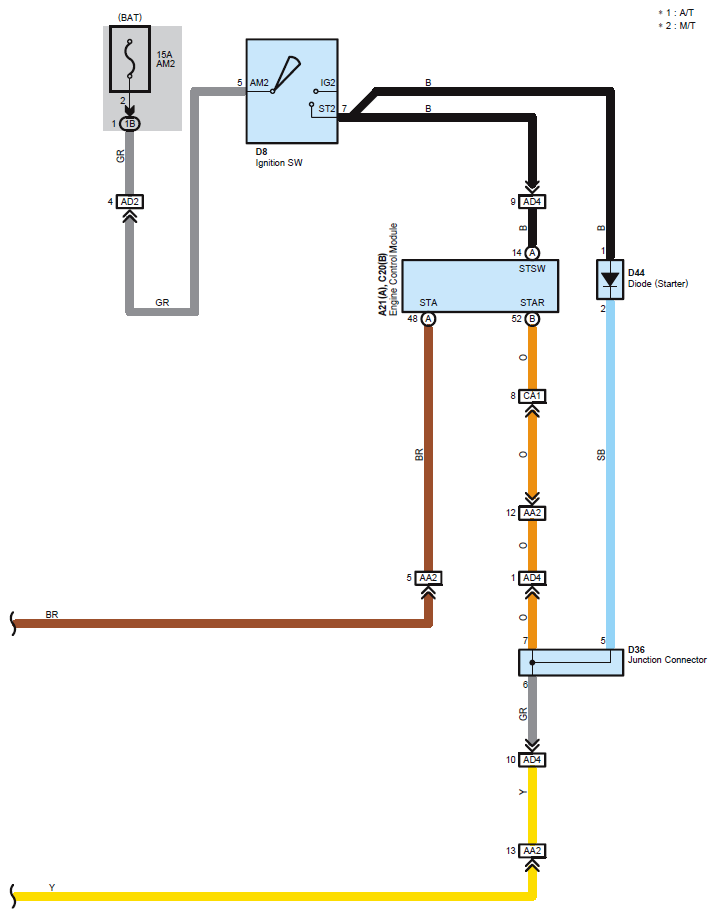

Fig 2: Starting - Circuit Diagram (2 Of 2)
G07604282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
