Interior Light System: Notes

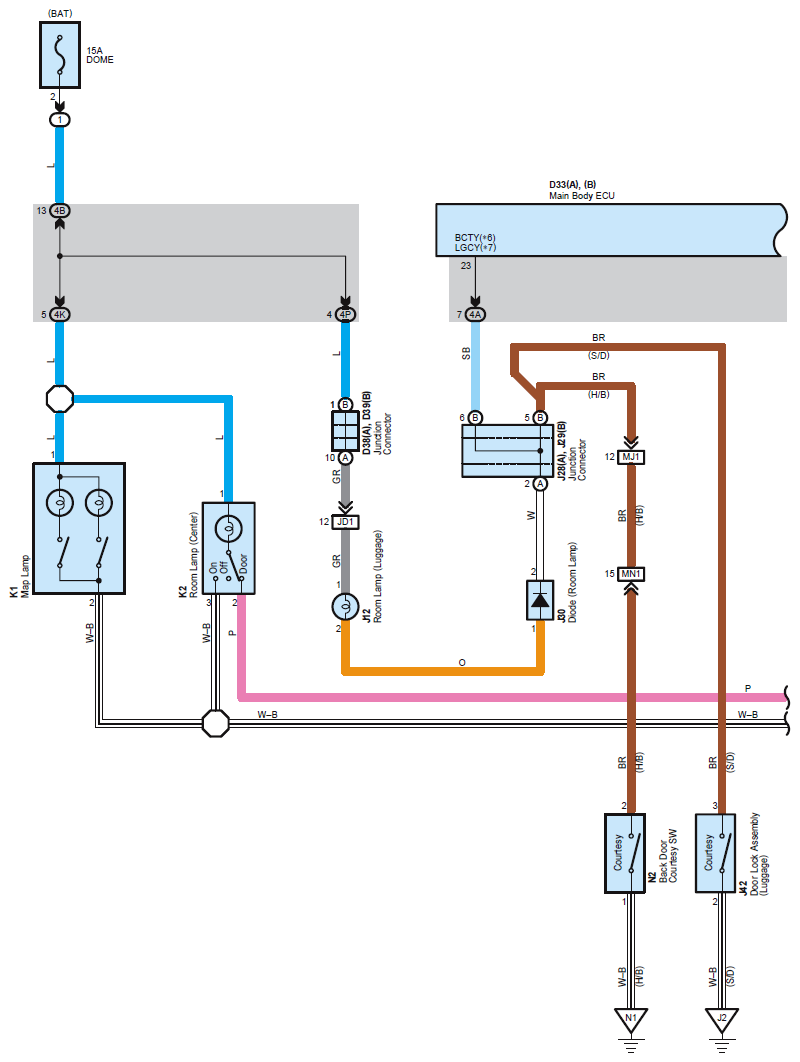

Fig 1: Interior Light - Circuit Diagram (1 Of 4)
G07604316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

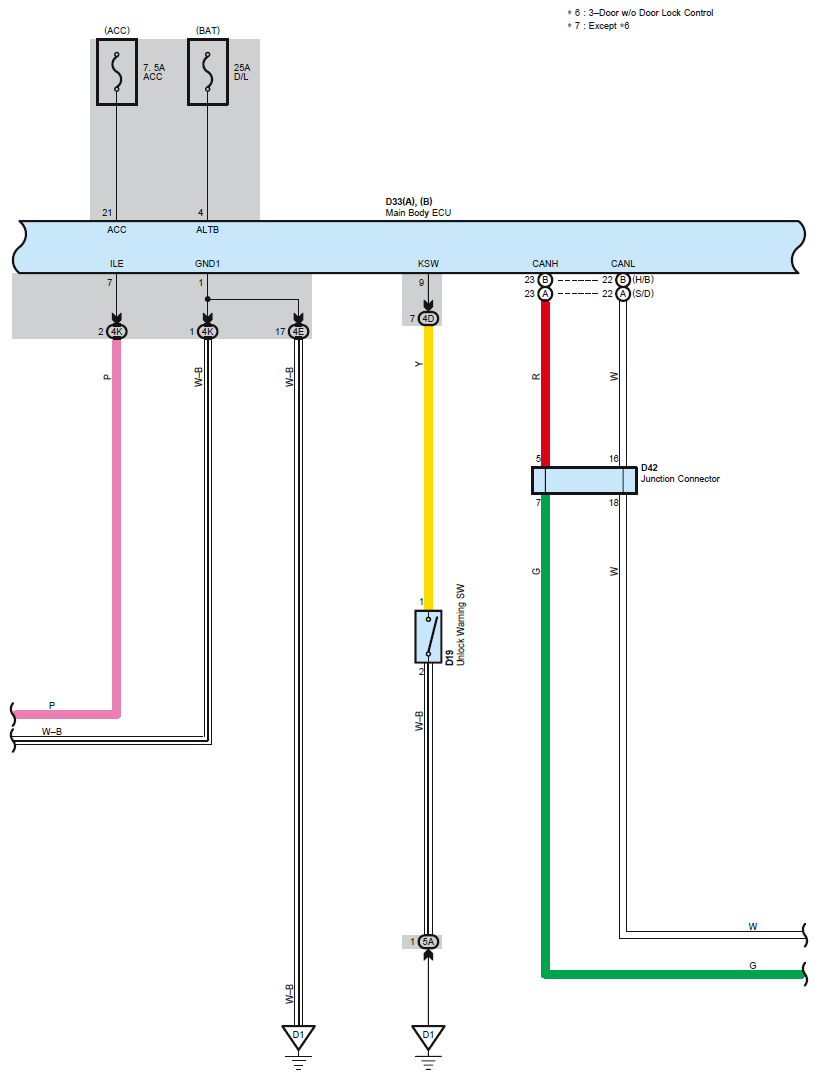

Fig 2: Interior Light - Circuit Diagram (2 Of 4)
G07604317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

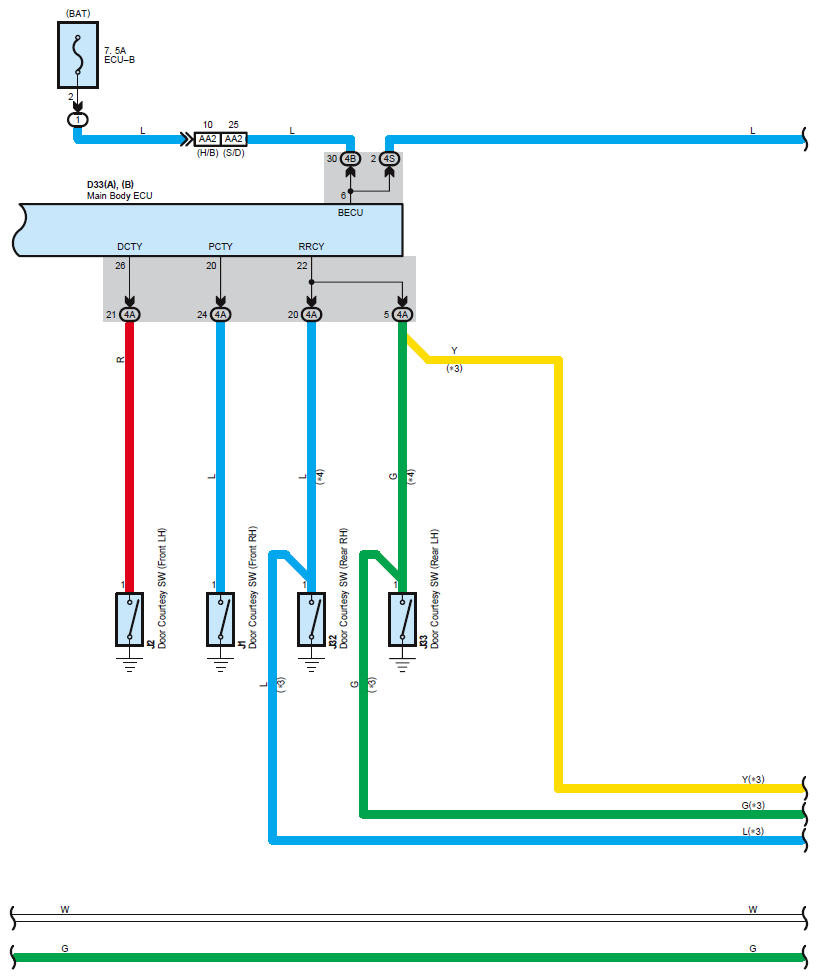

Fig 3: Interior Light - Circuit Diagram (3 Of 4)
G07604318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

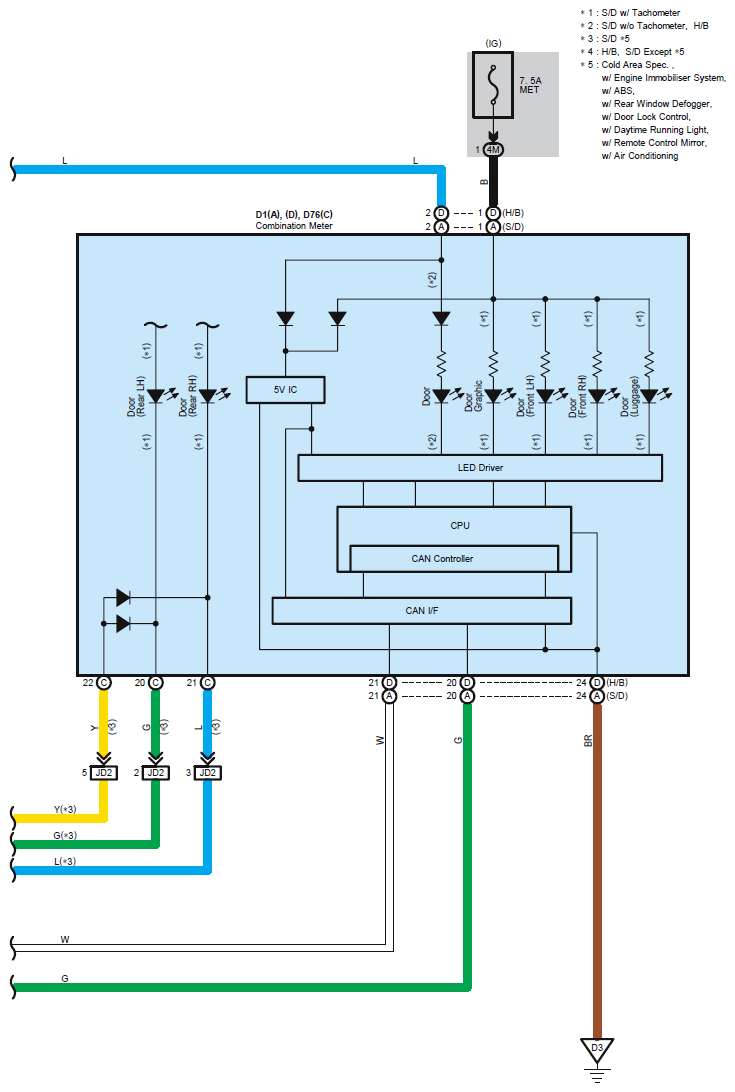

Fig 4: Interior Light - Circuit Diagram (4 Of 4)
G07604319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
