Ignition System: Notes

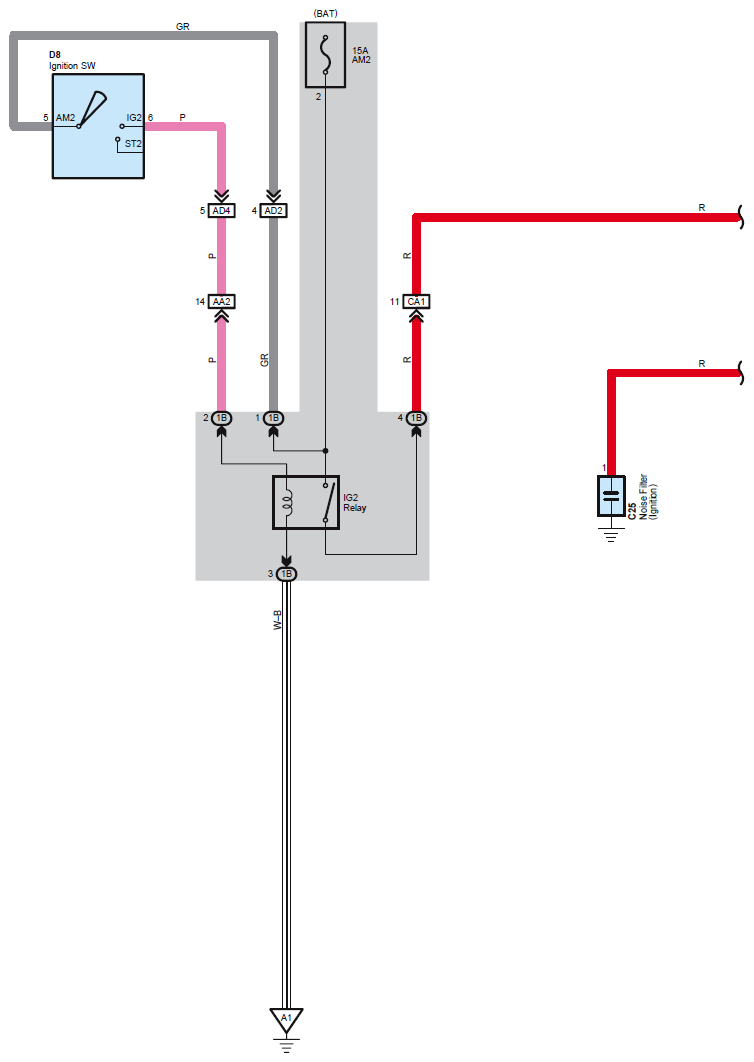

Fig 1: Ignition - Circuit Diagram (1 Of 2)
G07604284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

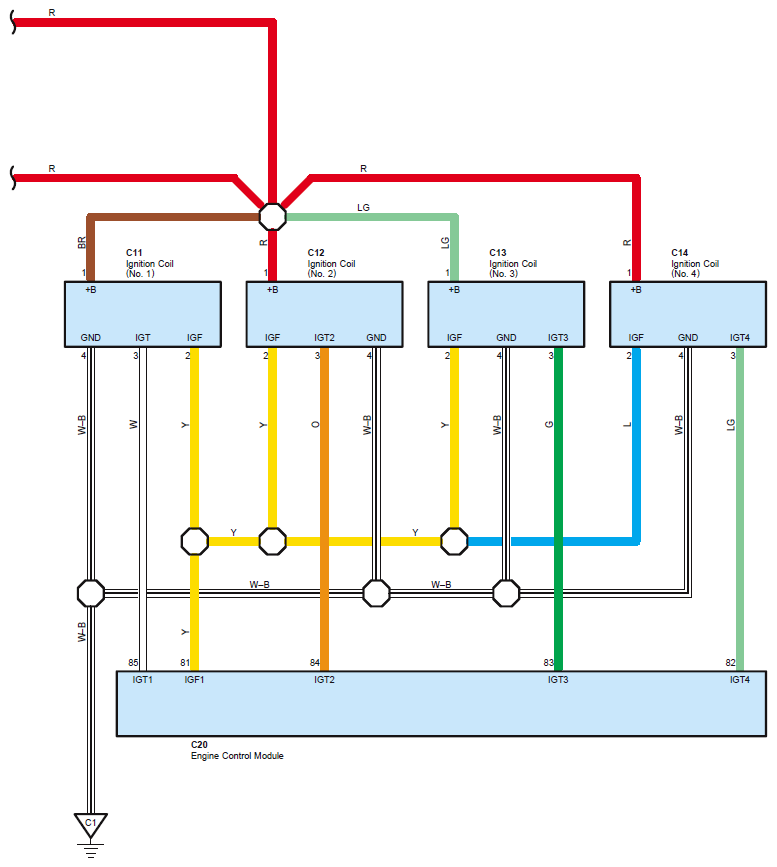

Fig 2: Ignition - Circuit Diagram (2 Of 2)
G07604285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
