Headlight System: Notes

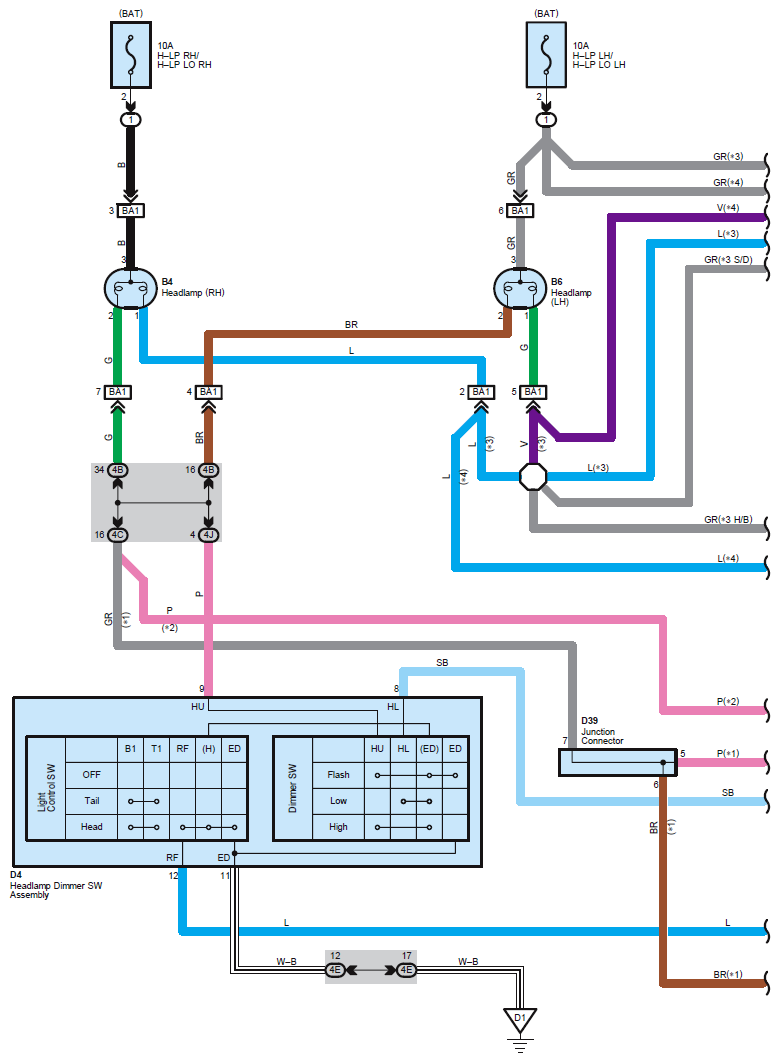

Fig 1: Headlight - Circuit Diagram (1 Of 3)
G07604311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

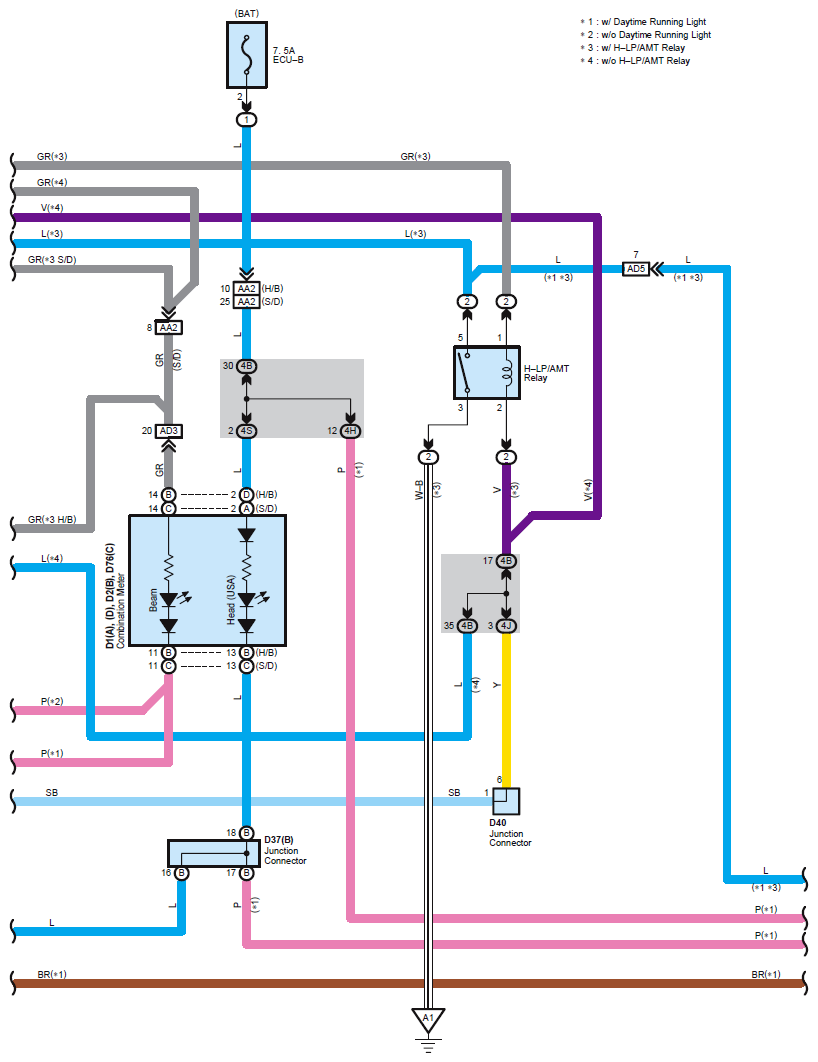

Fig 2: Headlight - Circuit Diagram (2 Of 3)
G07604312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

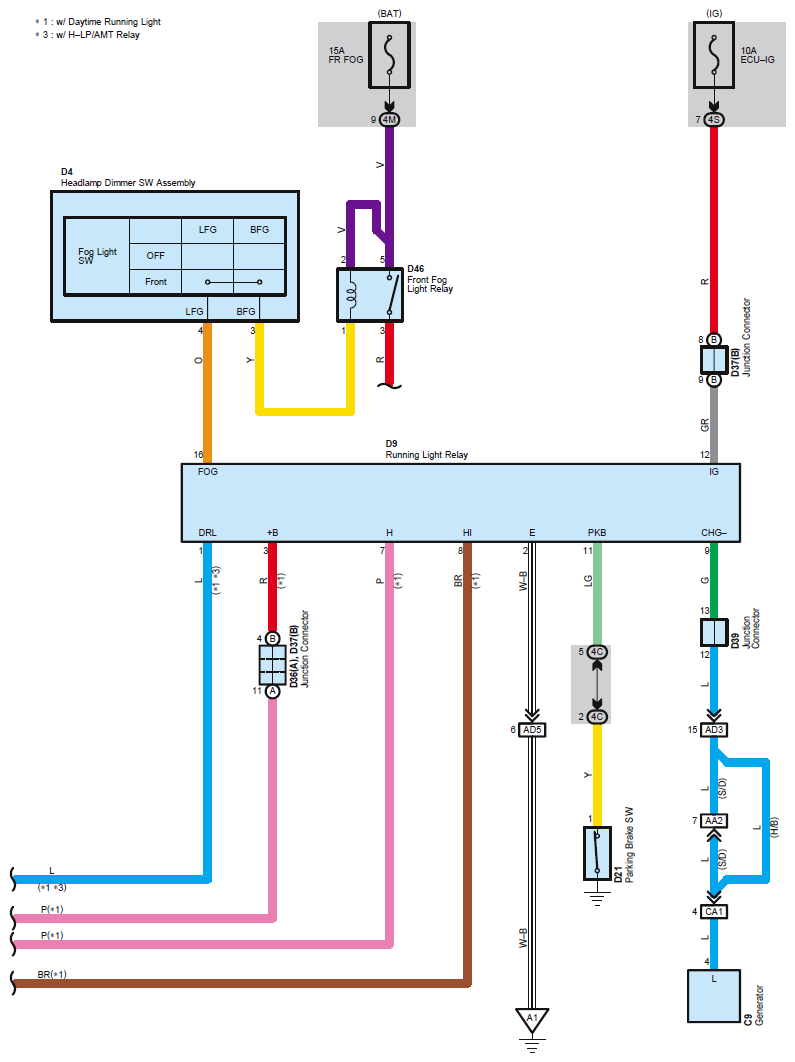

Fig 3: Headlight - Circuit Diagram (3 Of 3)
G07604313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
