ECT and A/T Indicator System: Notes

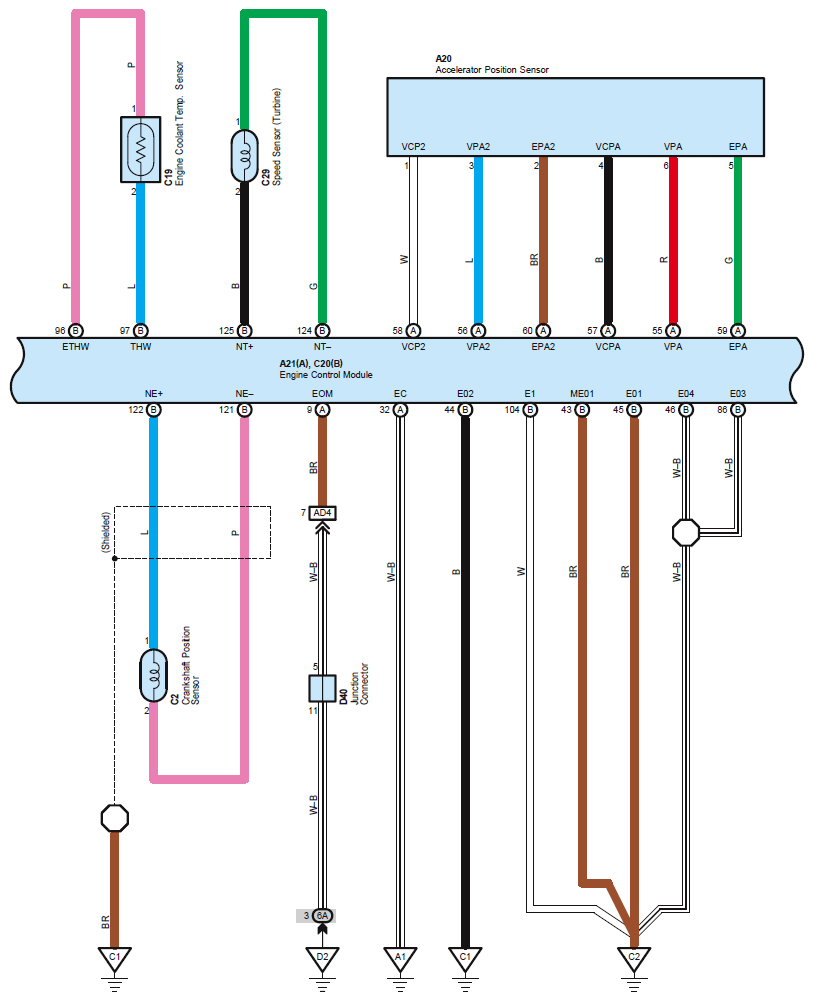

Fig 1: ECT And A/T Indicator - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

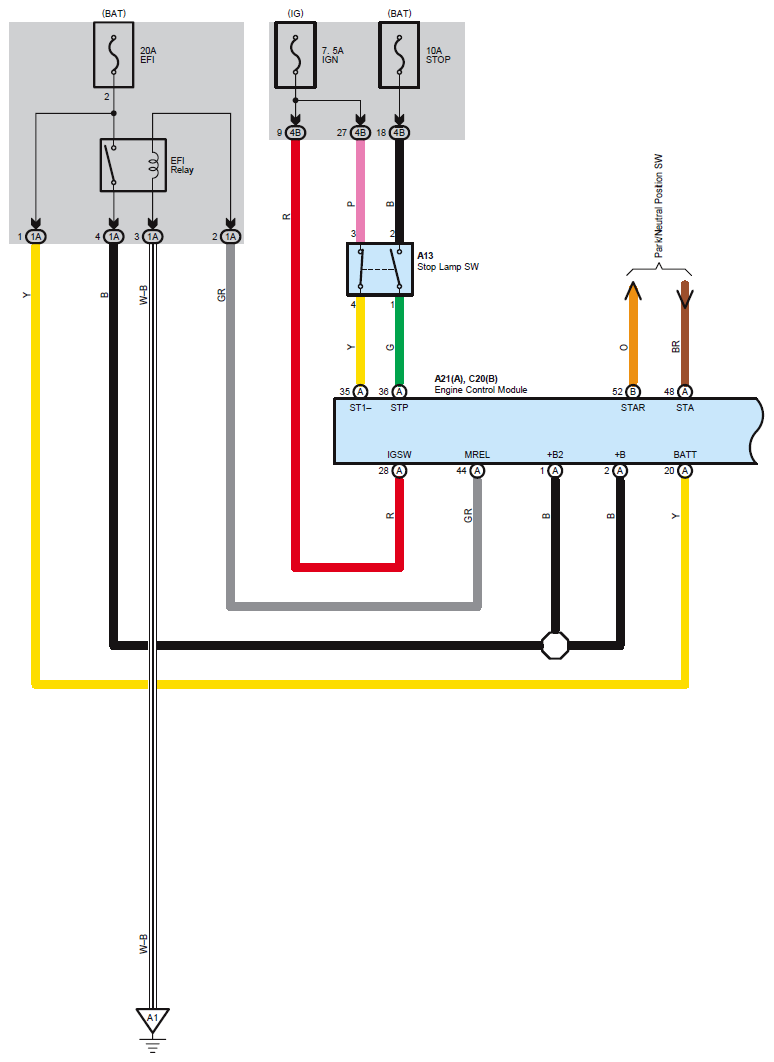

Fig 2: ECT And A/T Indicator - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

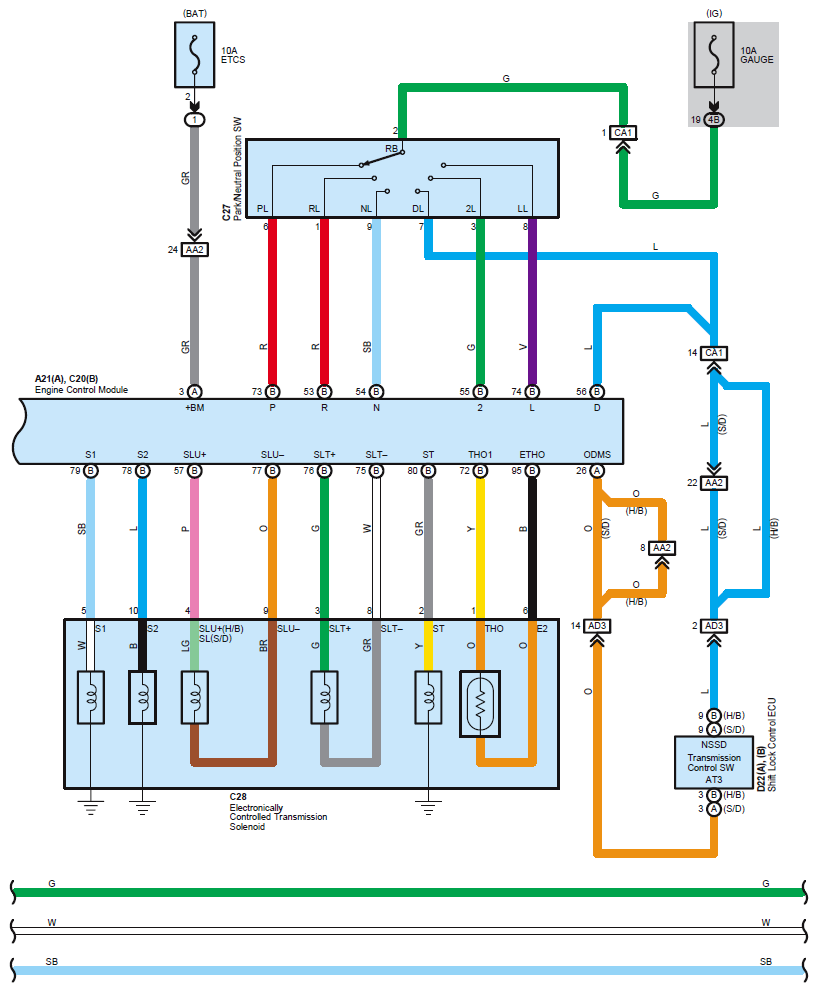

Fig 3: ECT And A/T Indicator - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

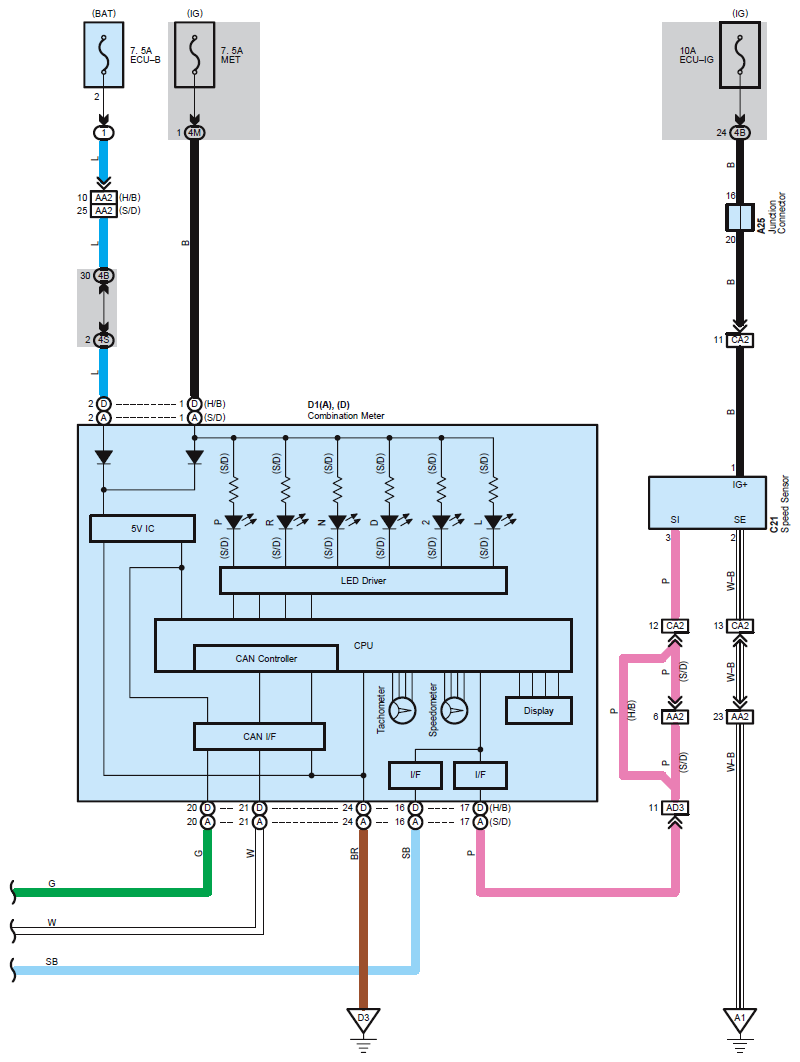

Fig 4: ECT And A/T Indicator - Circuit Diagram (4 Of 5)

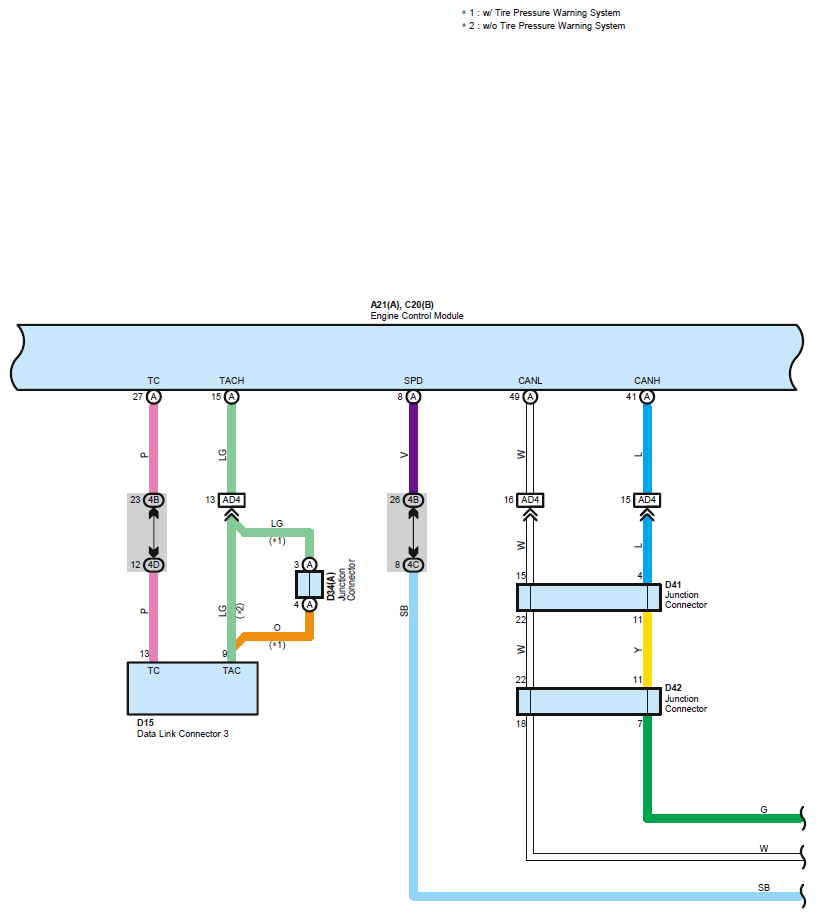

Fig 5: ECT And A/T Indicator - Circuit Diagram (5 Of 5)
