Cruise Control System: Notes

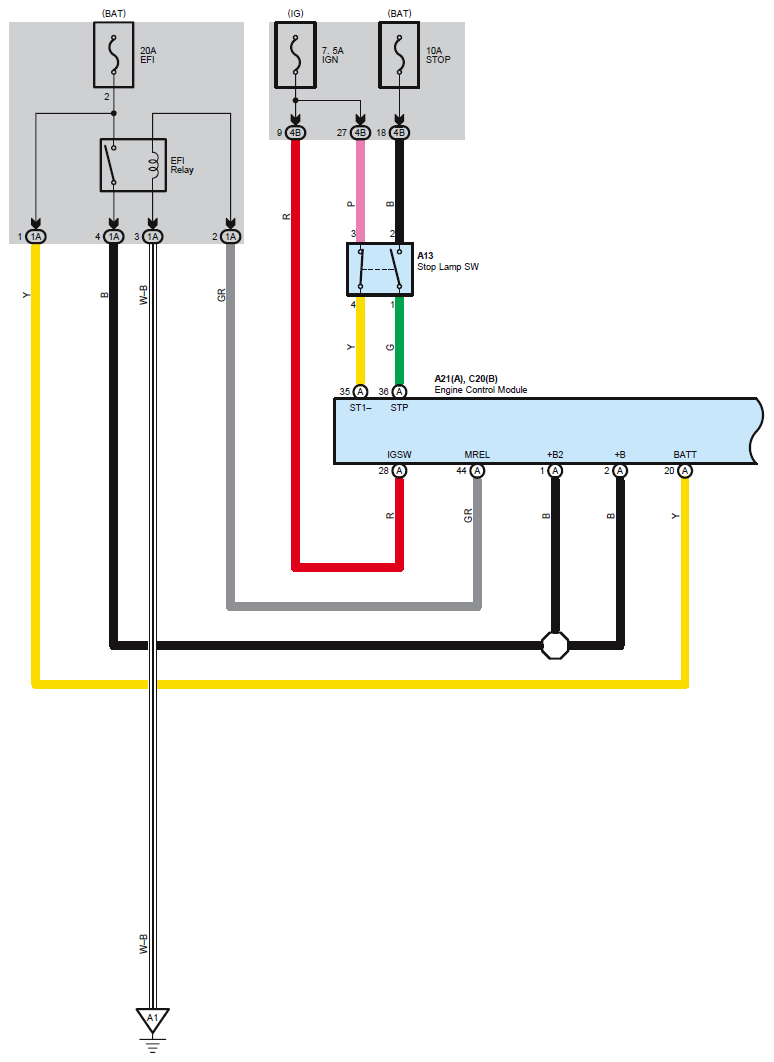

Fig 1: Cruise Control - Circuit Diagram (1 Of 5)
G07604300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

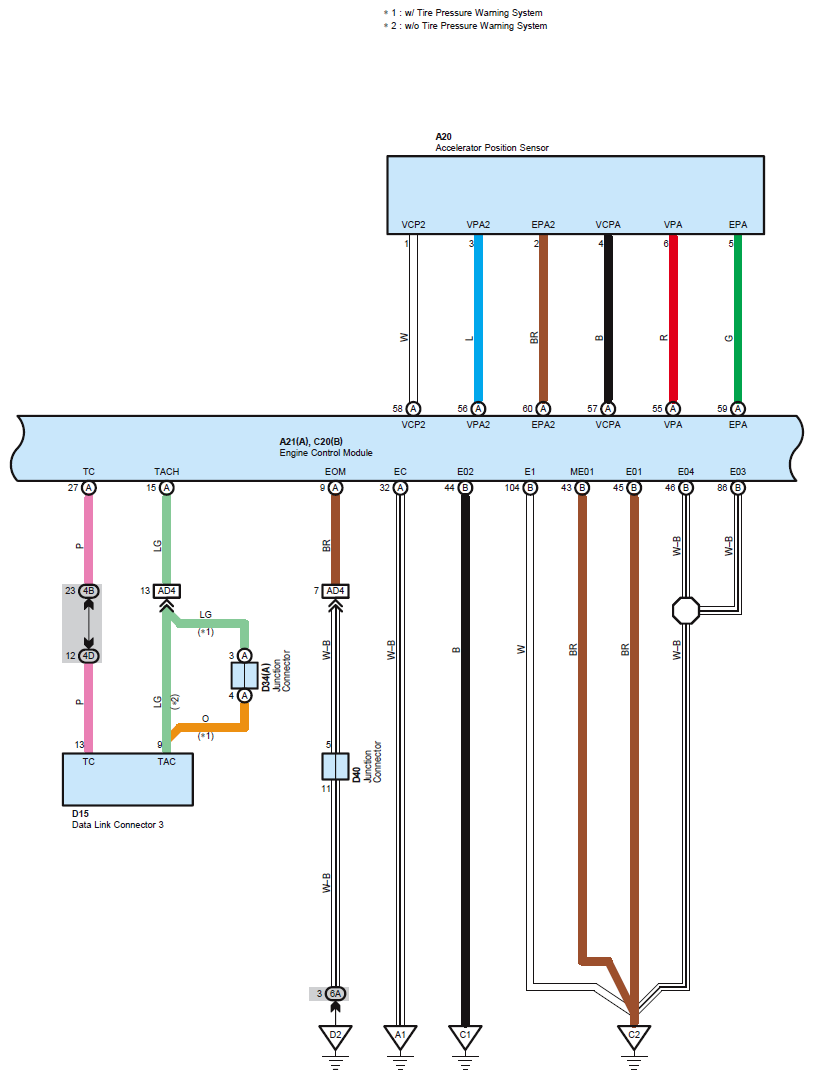

Fig 2: Cruise Control - Circuit Diagram (2 Of 5)
G07604301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

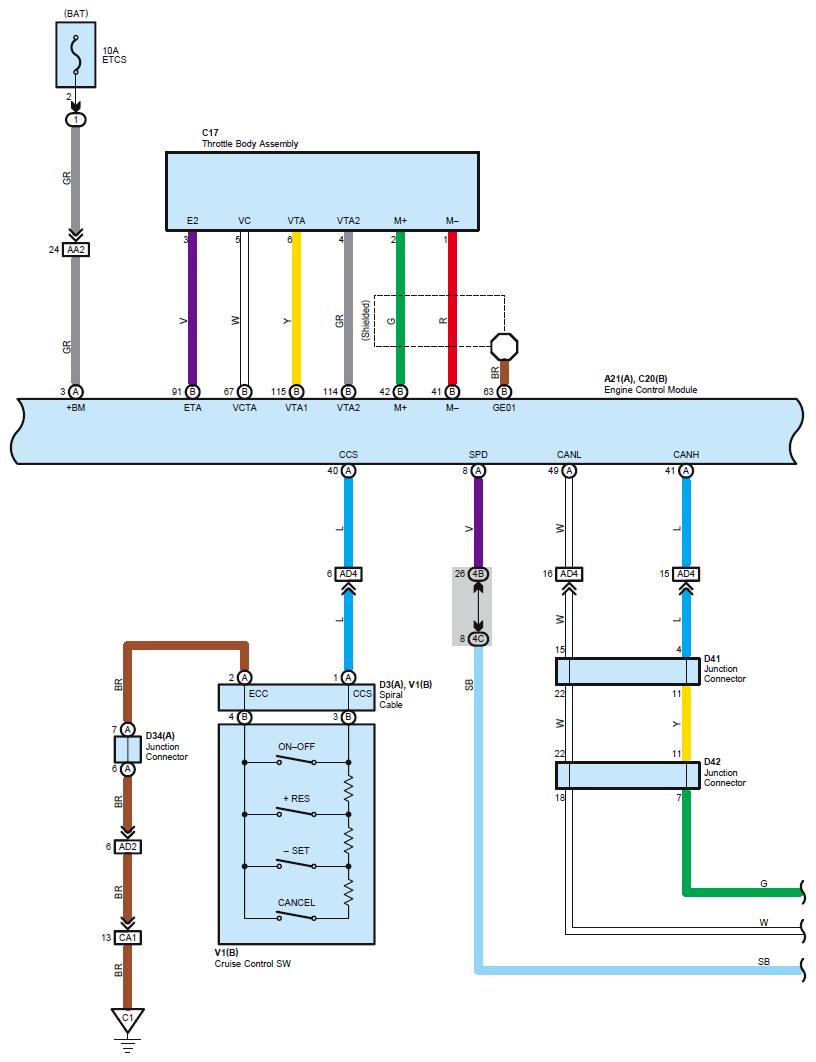

Fig 3: Cruise Control - Circuit Diagram (3 Of 5)
G07604302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

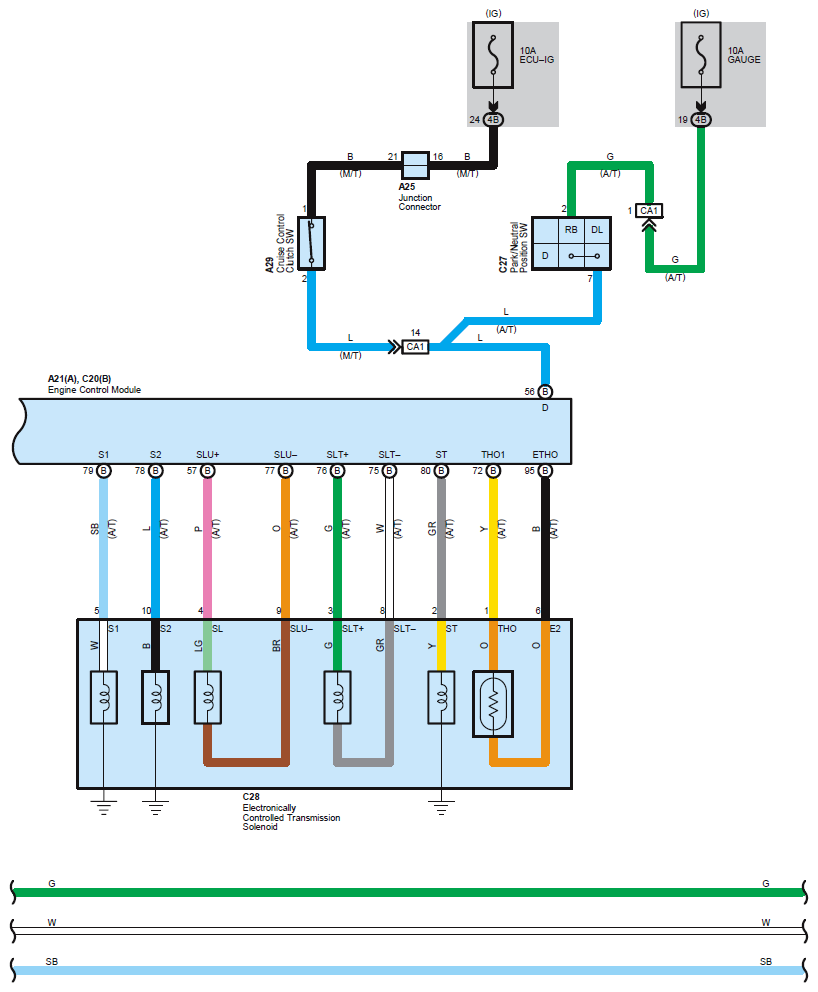

Fig 4: Cruise Control - Circuit Diagram (4 Of 5)
G07604303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

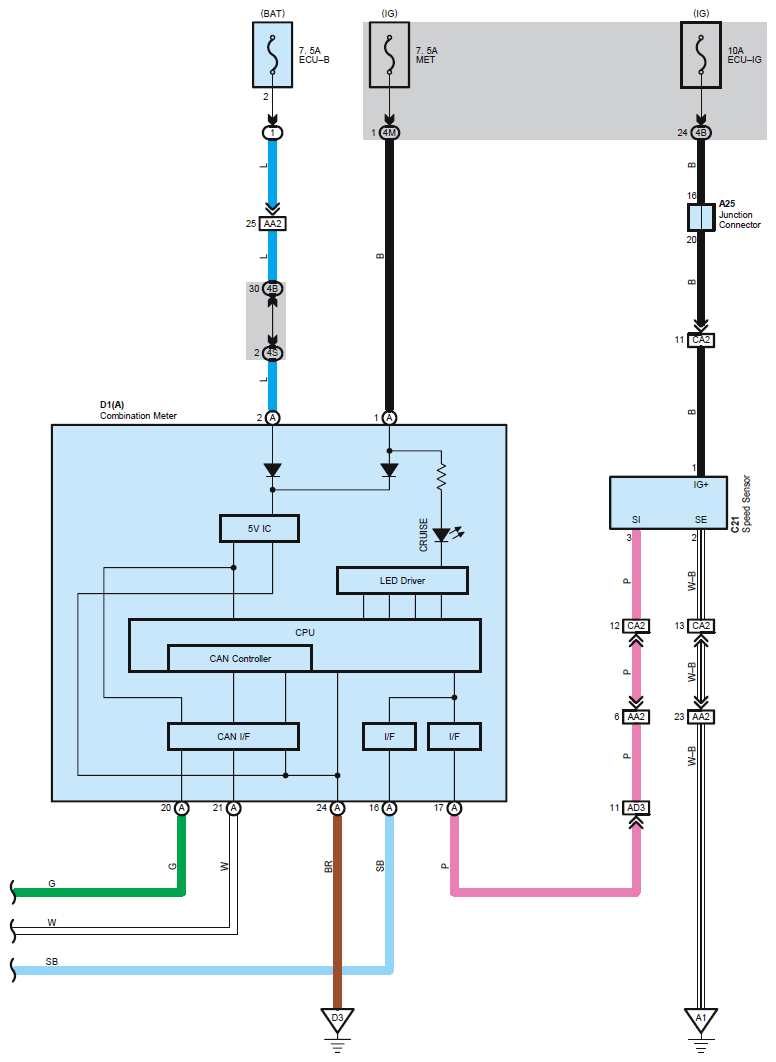

Fig 5: Cruise Control - Circuit Diagram (5 Of 5)
G07604304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
