Charging System: Notes

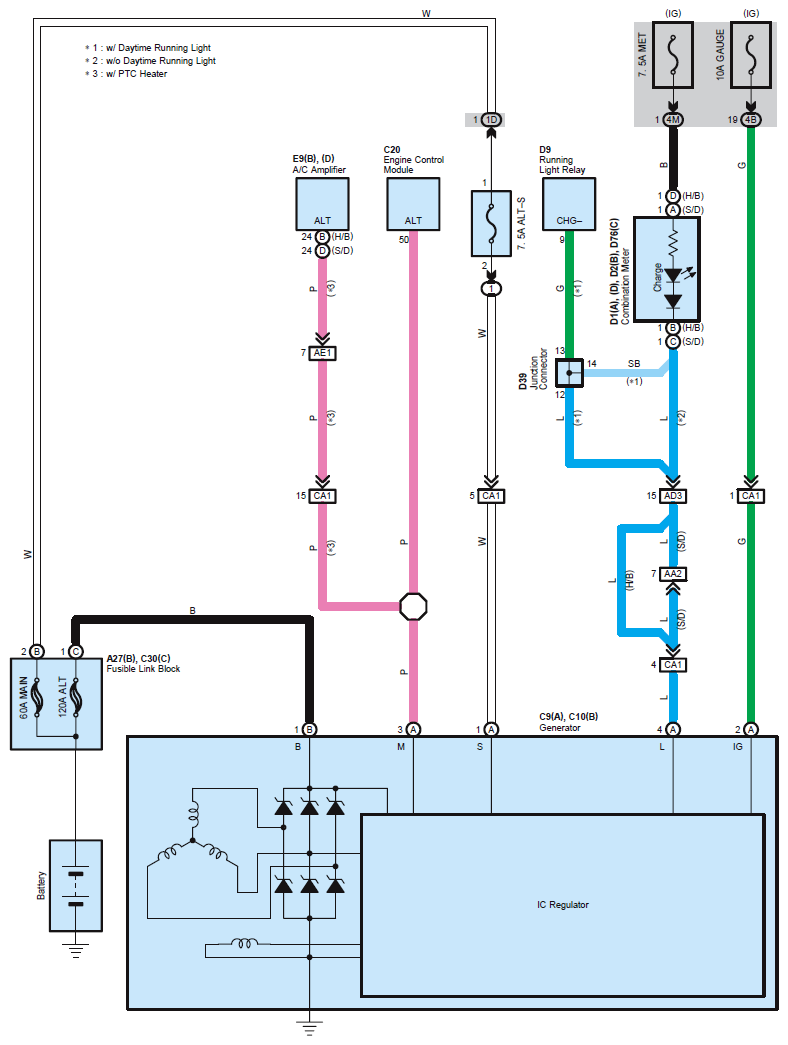

Fig 1: Charging - Circuit Diagram

G07604283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
