Back-Up Light System: Notes

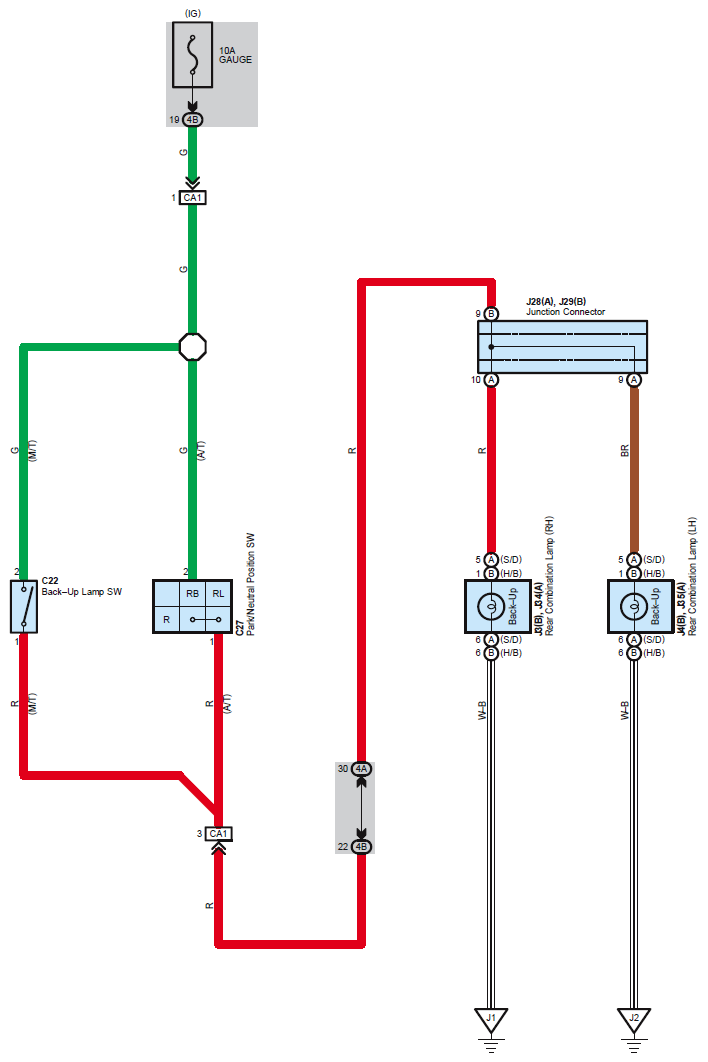

Fig 1: Back-Up Light - Circuit Diagram

G07604324

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
