Air Conditioning System: Notes

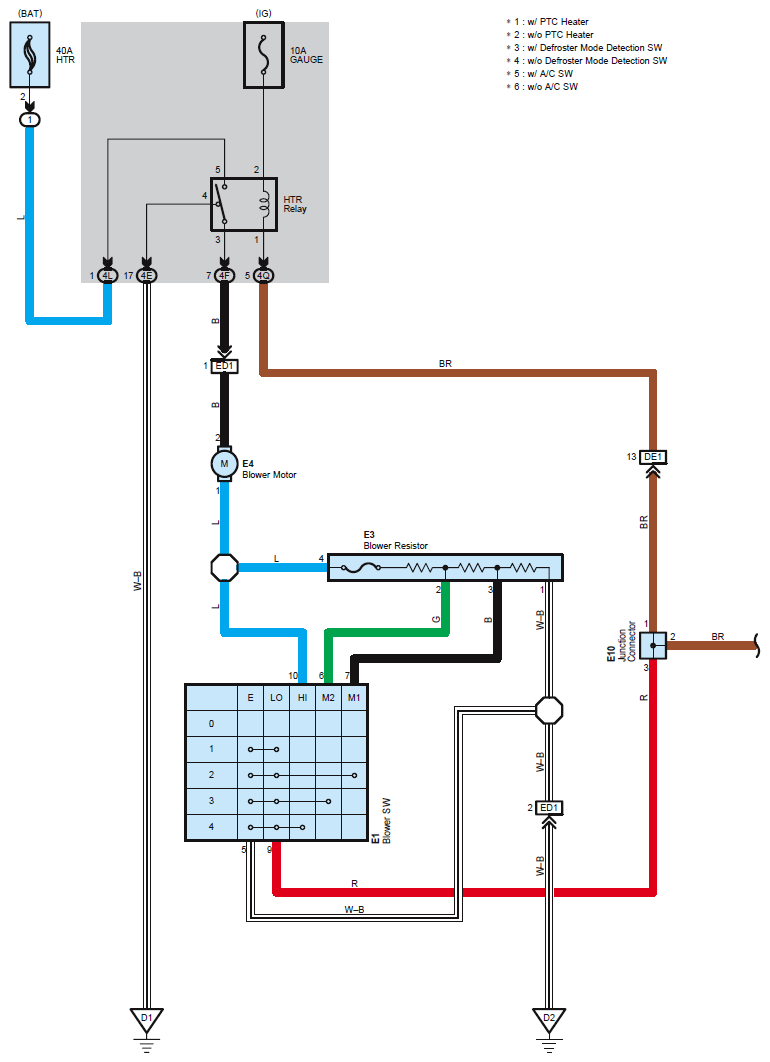

Fig 1: Air Conditioning - Circuit Diagram (1 Of 4)
G07604385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

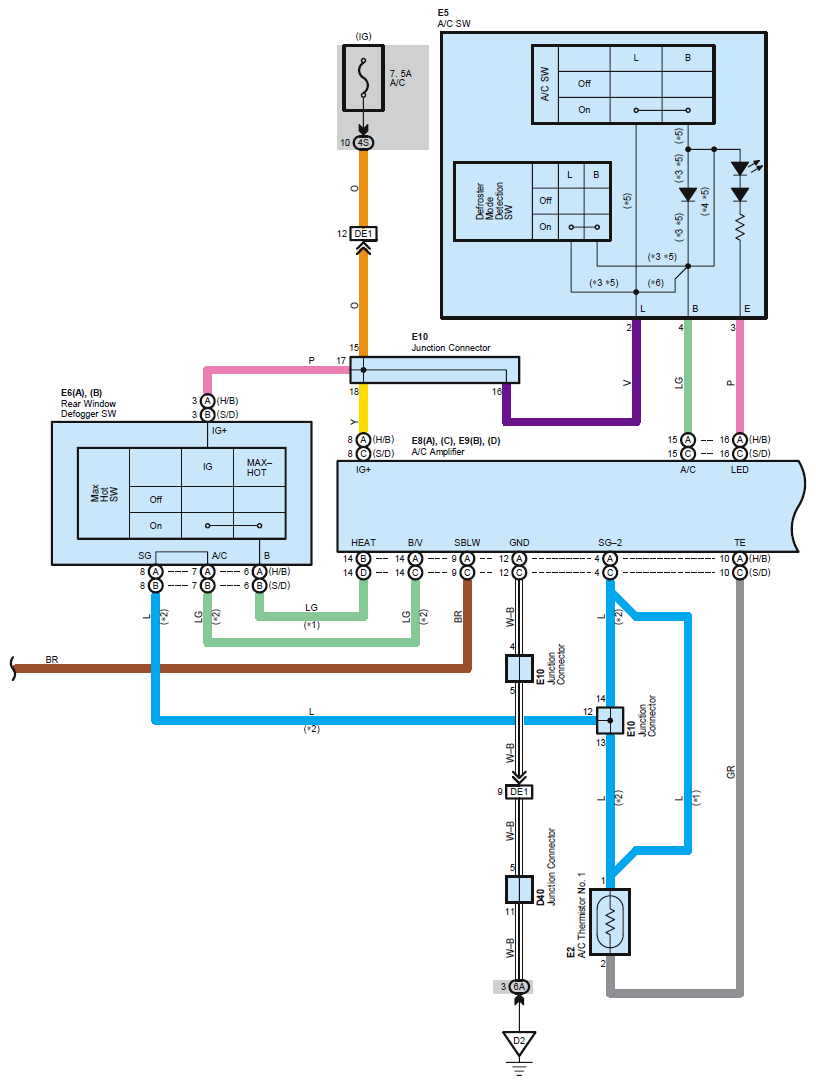

Fig 2: Air Conditioning - Circuit Diagram (2 Of 4)
G07604386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

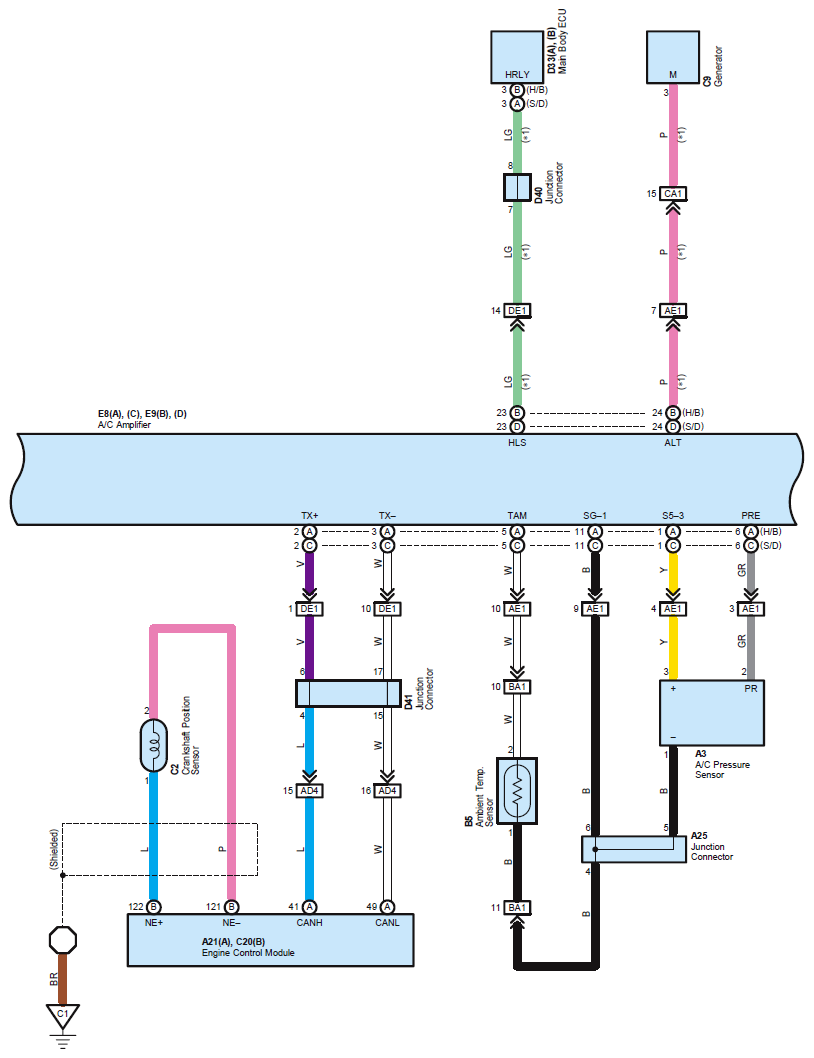

Fig 3: Air Conditioning - Circuit Diagram (3 Of 4)
G07604387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

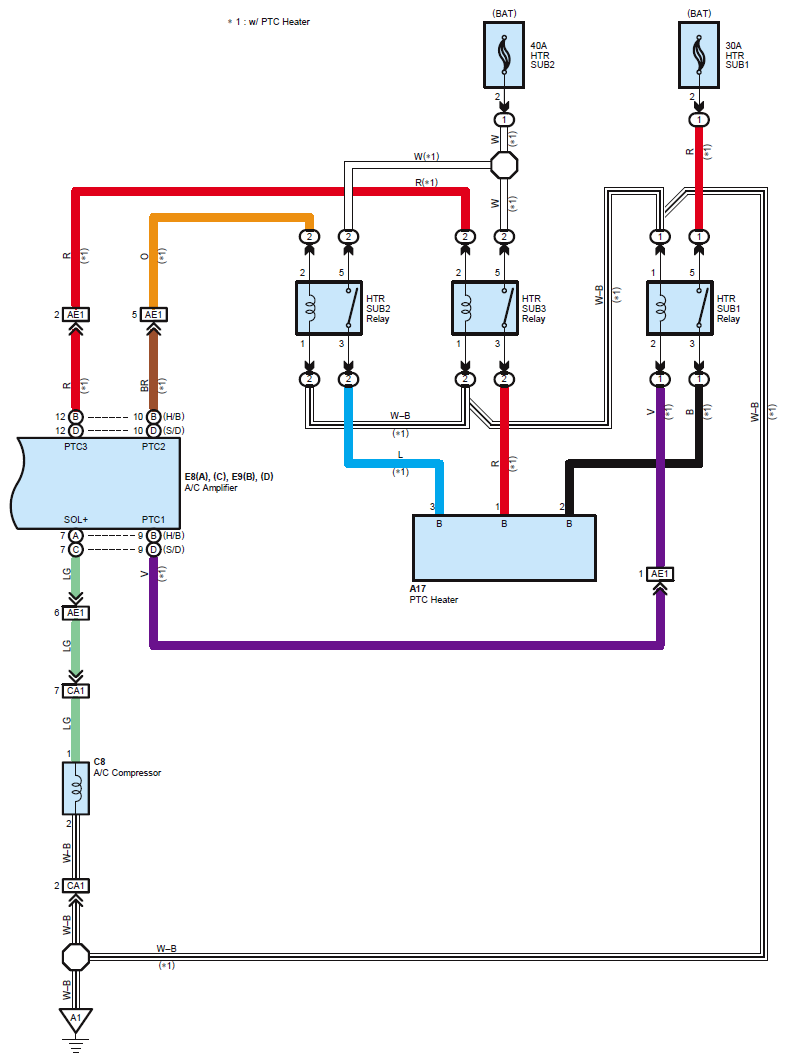

Fig 4: Air Conditioning - Circuit Diagram (4 Of 4)
G07604388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
