Yaris Base, 2D Hatchback, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Brakes Control Systems
>>
Brake Control System
>>
Skid Control Sensor
>>
Components
Skid Control Sensor: Components

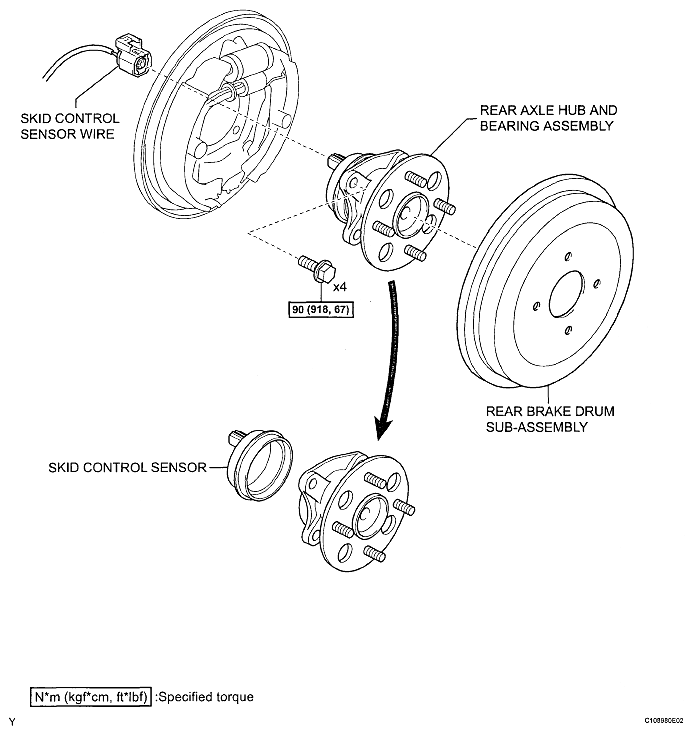

Fig 1: Skid Control Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
