Yaris Base, 2D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Brakes Control Systems
>>
Brake Control System
>>
Anti-Lock Brake System
>>
Parts Location
Parts Location

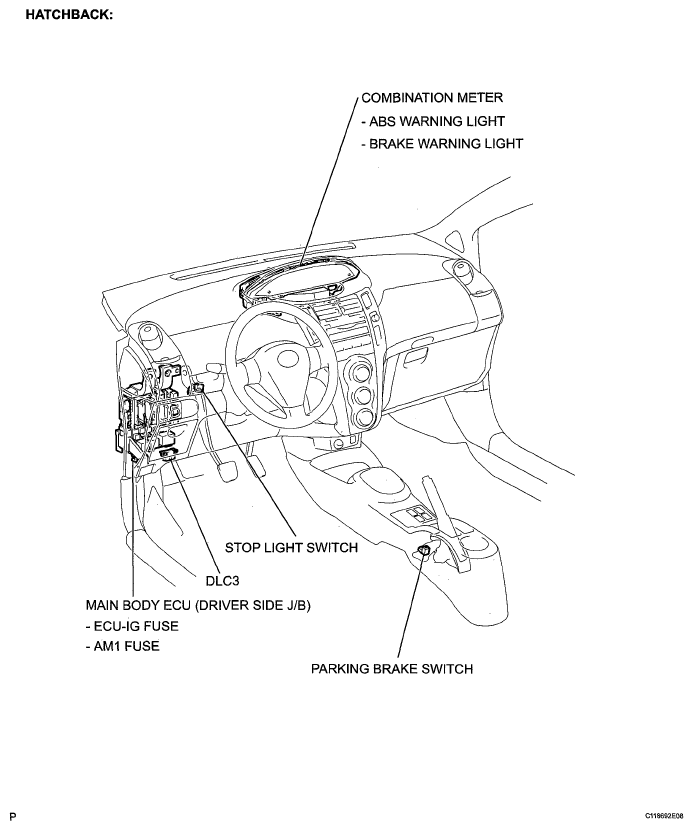

Fig 1: Identifying Anti-Lock Brake System Parts Location (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

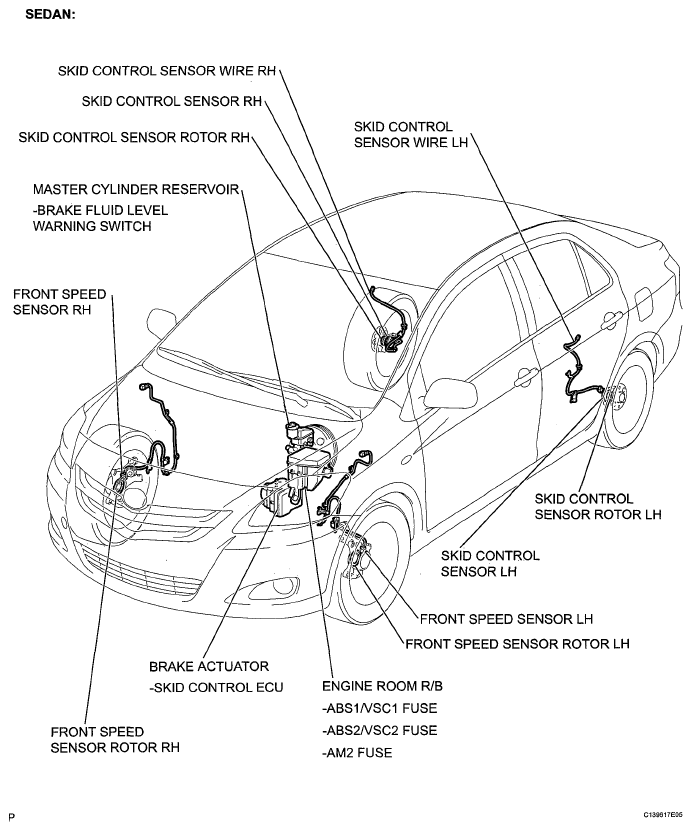

Fig 2: Identifying Anti-Lock Brake System Parts Location (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

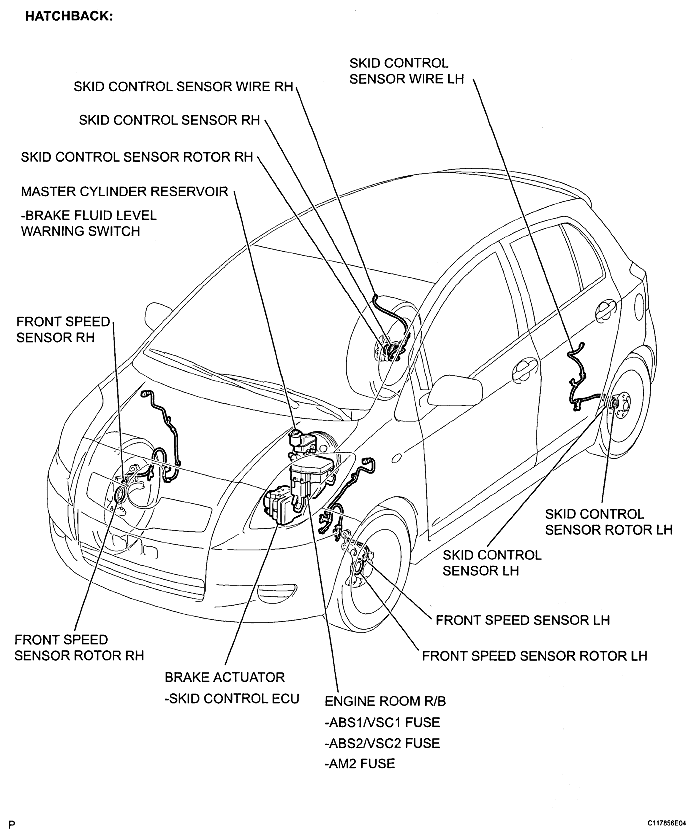

Fig 3: Identifying Anti-Lock Brake System Parts Location (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

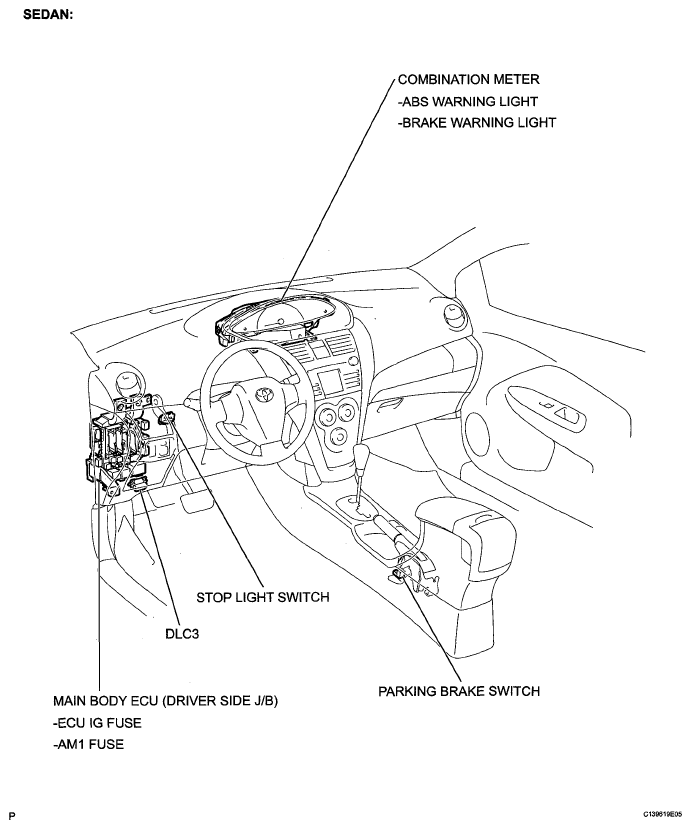

Fig 4: Identifying Anti-Lock Brake System Parts Location (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
