Taillight System: Notes

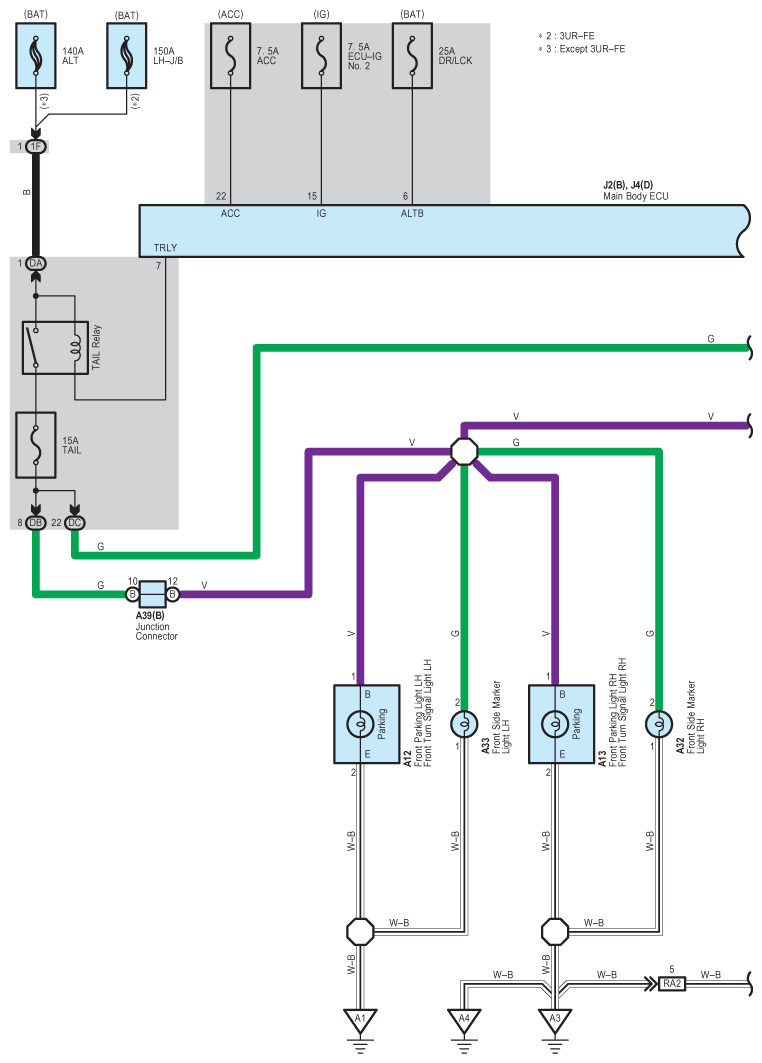

Fig 1: Taillight - Circuit Diagram (1 Of 3)
G07581974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

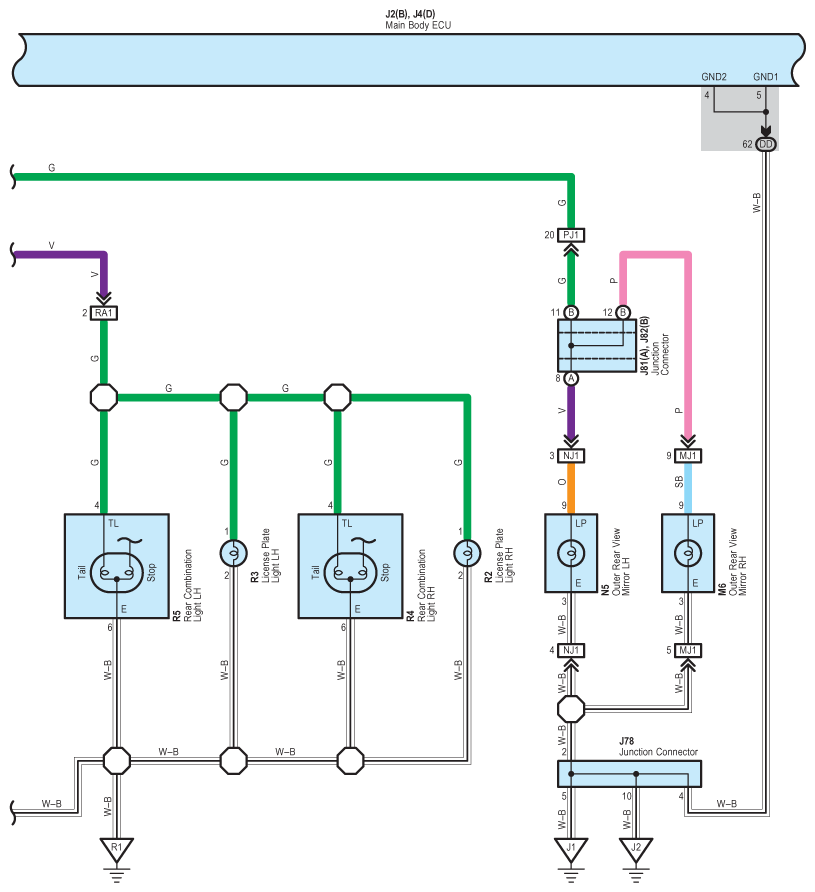

Fig 2: Taillight - Circuit Diagram (2 Of 3)
G07581975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

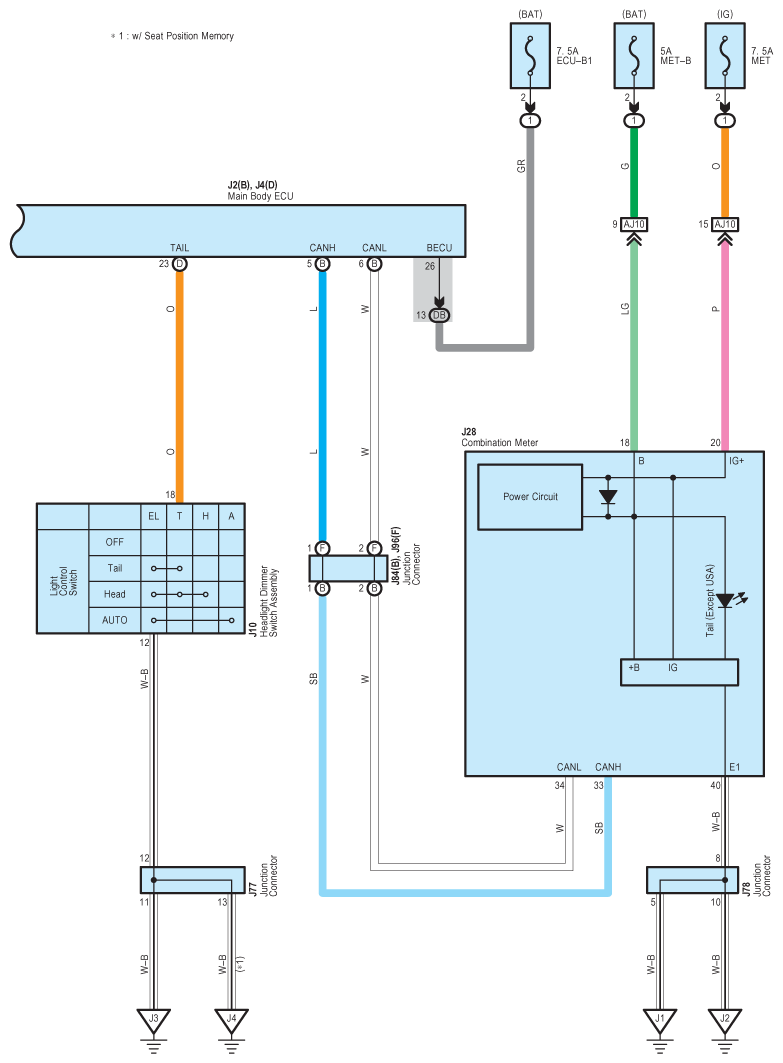

Fig 3: Taillight - Circuit Diagram (3 Of 3)
G07581976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
