Shift Lock System for Floor Shift: Notes

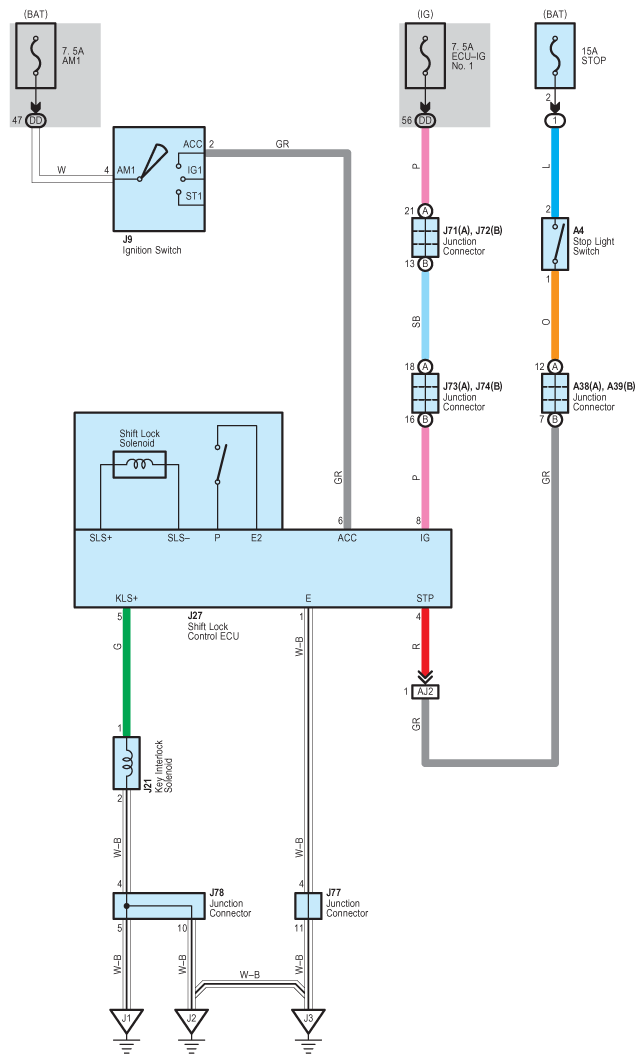

Fig 1: Shift Lock For Floor Shift - Circuit Diagram

G07582113

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
